Research Paper Volume 12, Issue 23 pp 24301—24317

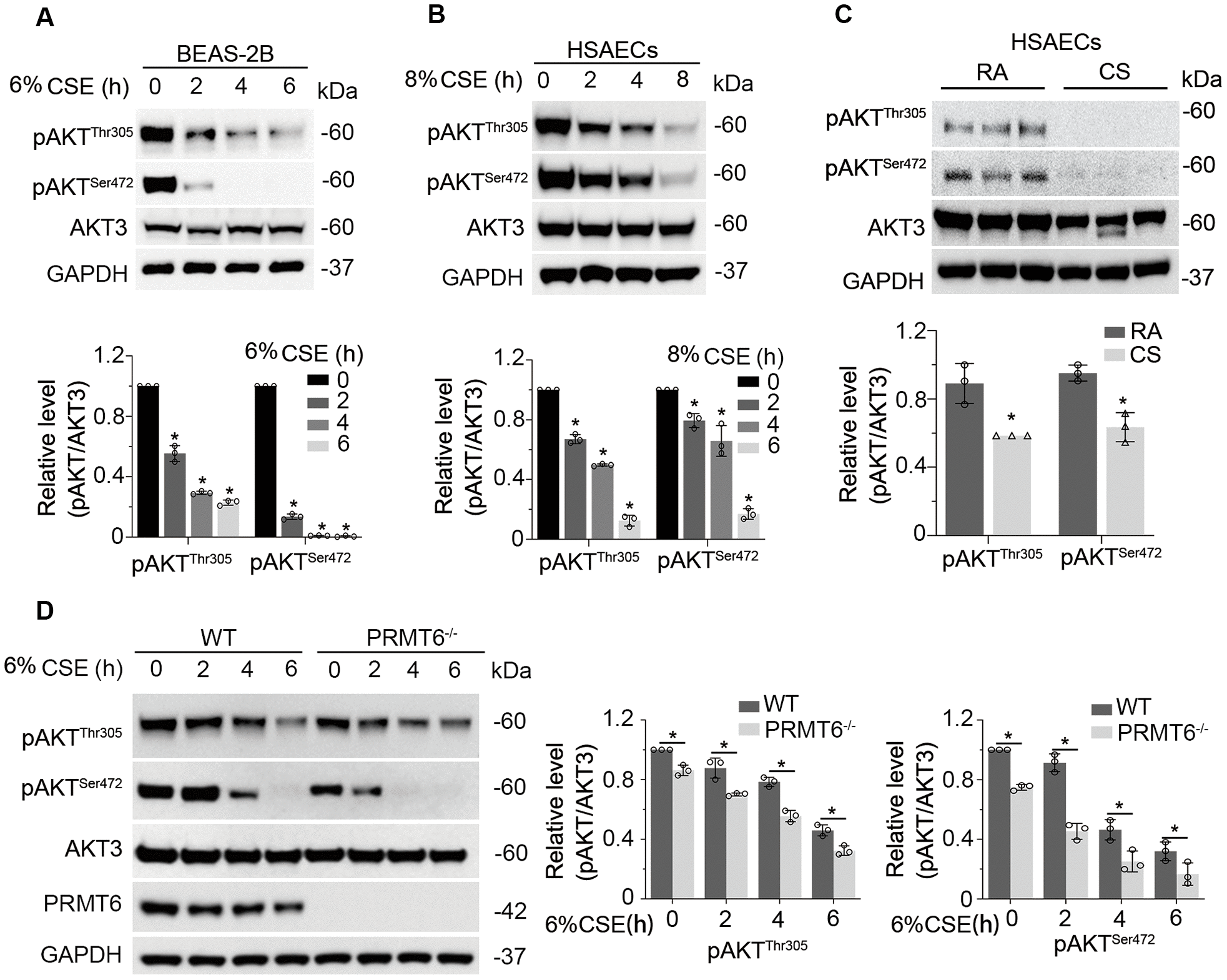

Figure 4. CSE downregulates PI3K/AKT signal transduction in lung epithelial cells. (A) BEAS-2B cells were treated with 6% CSE for 0, 2, 4, 6h. Cell lysates were immunoblotted with phosphorylated AKT and total AKT. The densitometry results of the blots were presented in the lower panel. (B) HSAECs cells were treated with 8% CSE in a range of concentrations as indicated for 0, 2, 4, 8h. Phosphorylated AKT and AKT3 were immunoblotted. The densitometry of the blots was presented in its lower panel. (C) HSAECs were applied to room air or cigarette smoke exposure. RA: room air; CS: cigarette smoke. Cell lysates were immunoblotted with pAKT^Thr305, pAKT^Ser472, AKT3 and GAPDH antibodies. The densitometry results of the blots were presented in the lower panel. (D) Both WT and PRMT6^-/- BEAS-2B cells were treated with CSE at different time courses. Cell lysates were subjected to immunoblotting with pAKT^Thr305, pAKT^Ser472, AKT3, PRMT6, and GAPDH. Results were shown as mean ± SD and representative of n=3 experiments. Statistical significance was indicated as *: p < .05.
