Research Paper
|
Volume 12, Issue 14
|
pp. 14677–14690
Expression and prognosis analysis of
DNMT
family in acute myeloid leukemia
Back to article
Figure 6
(6 of 6)
−
100%
+

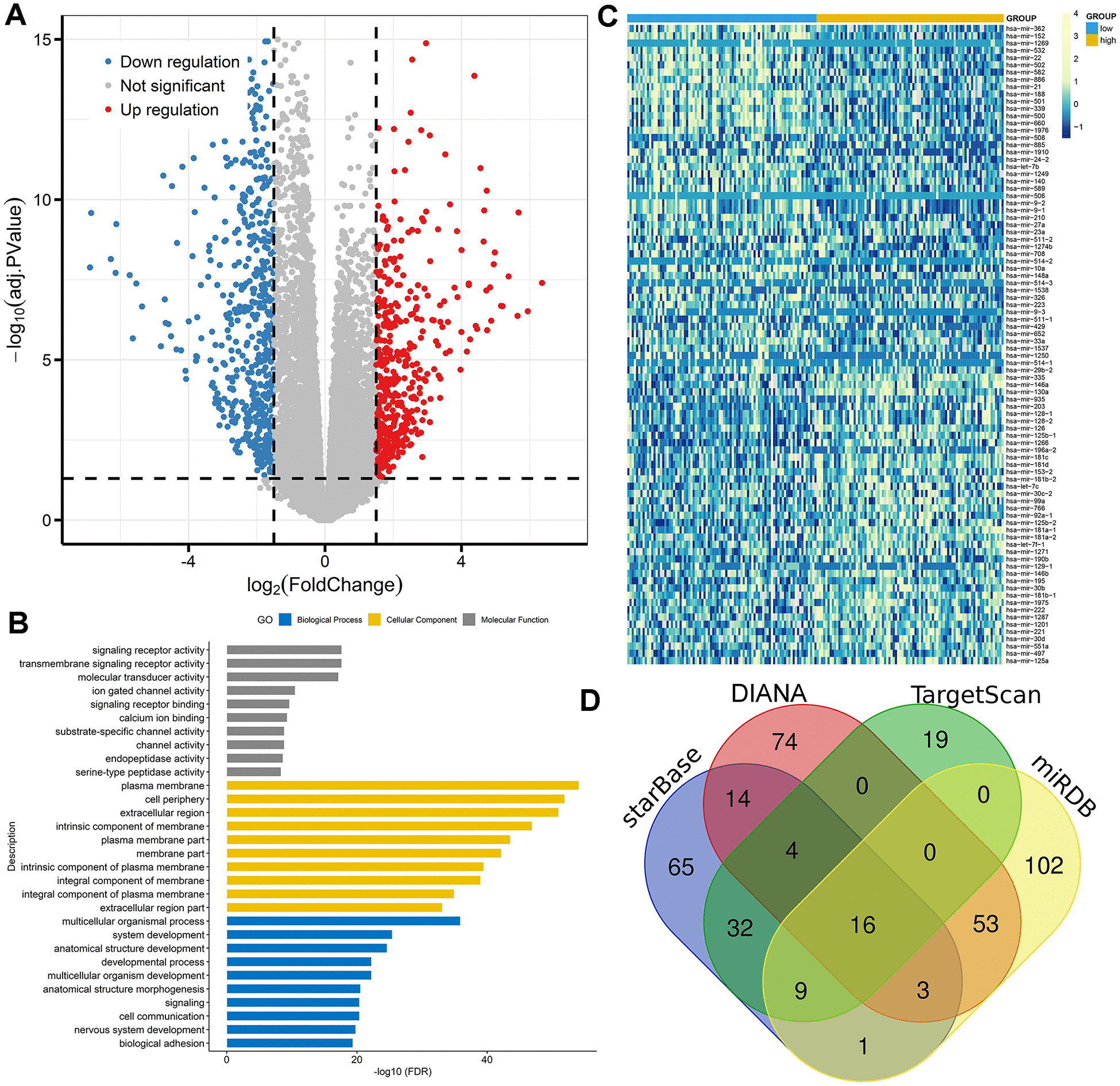

Figure 6.
Molecular signatures associated with
DNMT3A
in AML.
(
A
) Volcano plot of differentially expressed genes between AML patients with low and high
DNMT3A
expression (FDR<0.05,
P
<0.05, and |log2 FC|>1.5). (
B
) Gene Ontology analysis of DEGs conducted using online website of STRING (
http://string-db.org
). (
C
) Expression heatmap of differentially expressed microRNAs between AML patients with low and high
DNMT3A
expression (FDR<0.05 and
P
<0.05). (
D
) Venn results of microRNAs which could target
DNMT3A
predicted by DIANA (
http://diana.imis.athena-innovation.gr/DianaTools/index.php?r=microT_CDS/index
), miRDB (
http://mirdb.org/miRDB/
), TargetScan (
http://www.targetscan.org/vert_72/
), miRDB (
http://mirdb.org/
), and starBase (
http://www.sysu.edu.cn/403.html
).
Figure 6 — Expression and prognosis analysis of DNMT family in acute myeloid leukemia | Aging
