Transcriptome analysis of common and diverged circulating miRNAs between arterial and venous during aging

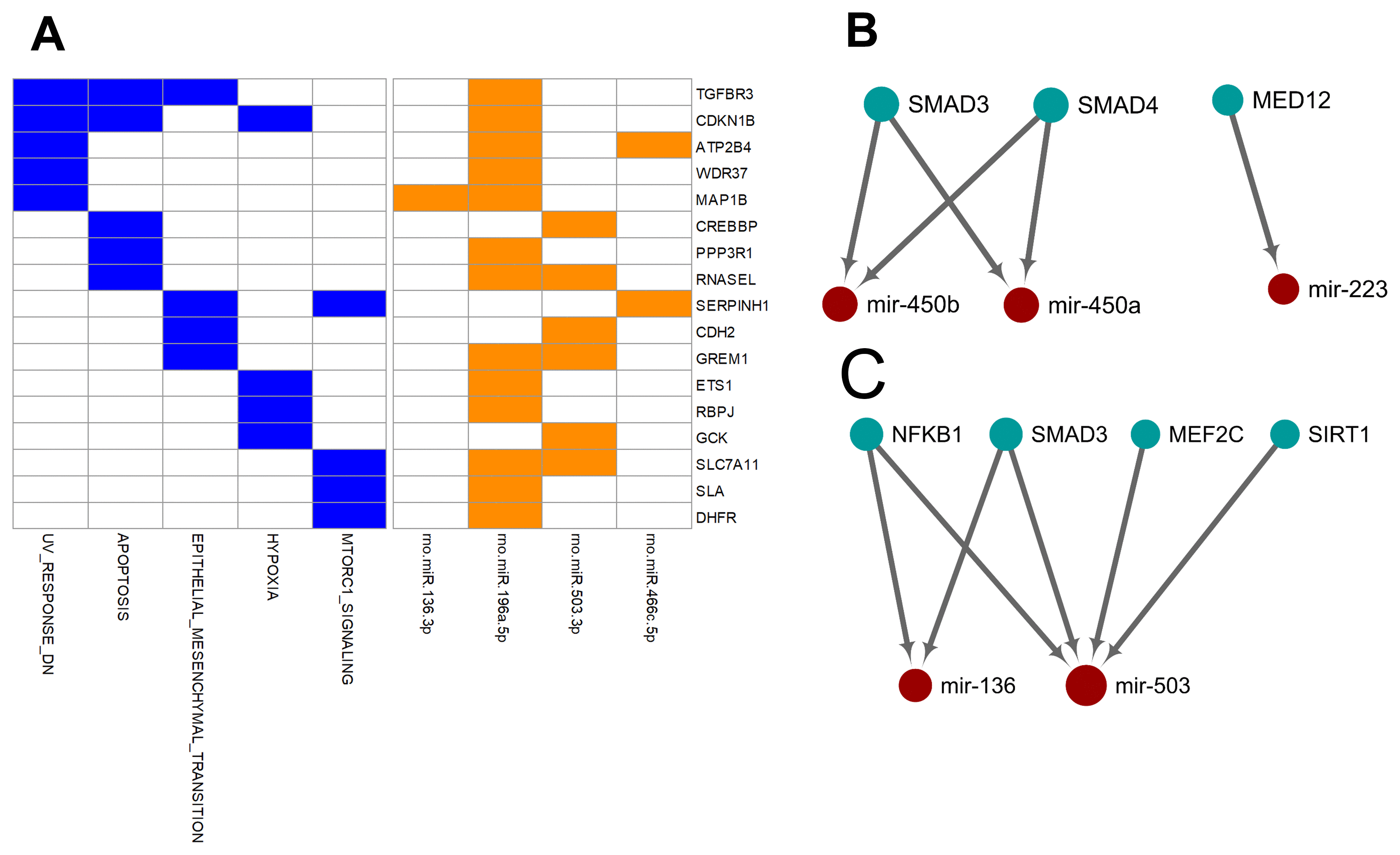

Figure 4. Over-represented target genes and transcription factors of the miRNAs showed consistent or reversed artery-versus-venous deregulation between young and aged rats. (A) Heatmap of genes intensively regulated by miRNAs showing reversed deregulation and their functional association. (B) Network view of the interactions between miRNAs showing consistent deregulation and their over-represented upstream transcription factors. (C) Network view of the interactions between miRNAs showing reversed deregulation and their over-represented upstream transcription factors.
