Research Paper|Volume 12, Issue 12|pp. 11864–11877
Prognosis and regulation of an adenylyl cyclase network in acute myeloid leukemia
Back to articleFigure 4(4 of 7)
100%
Figure 4

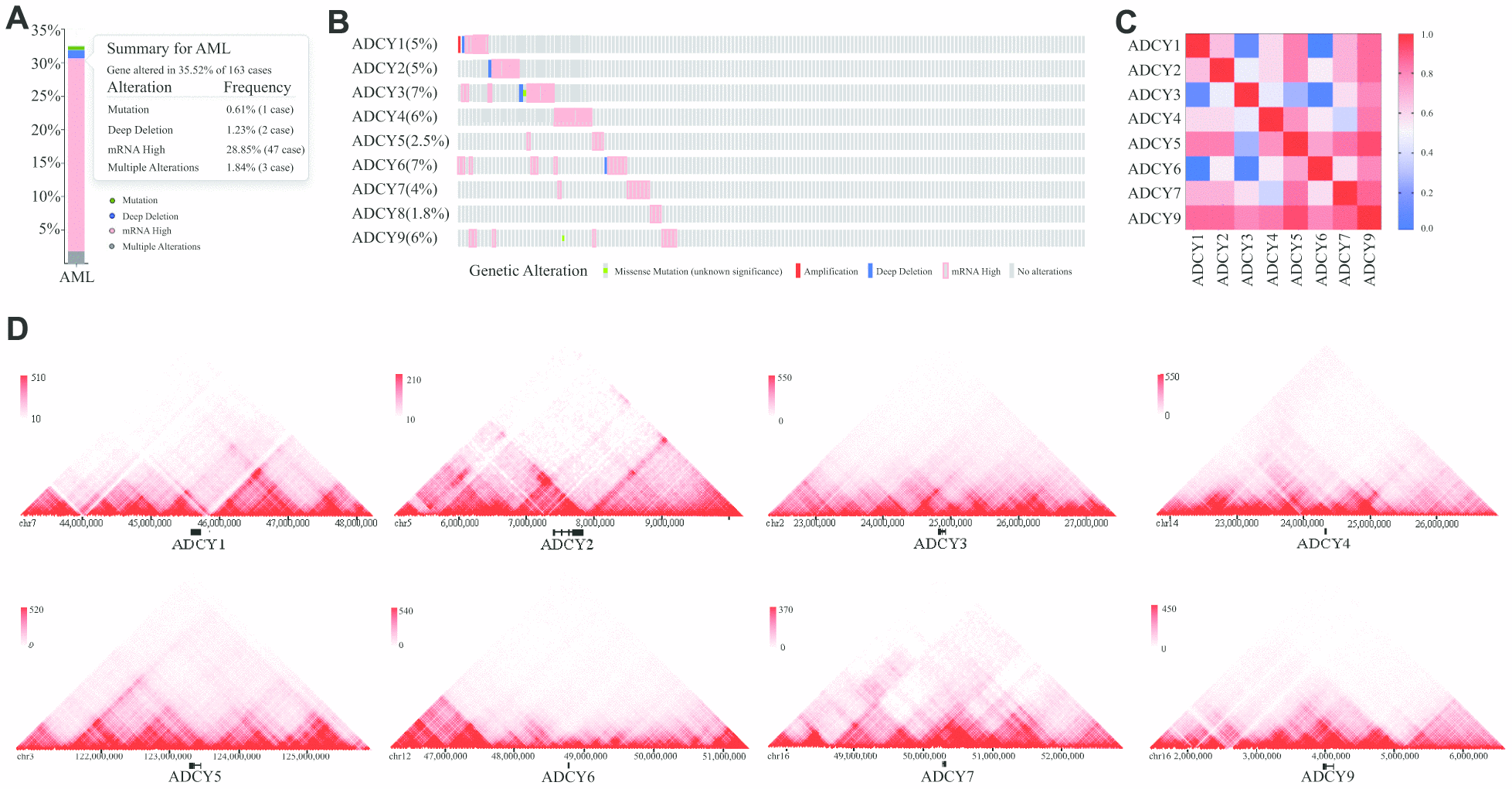

Figure 4.Visual summary of ADCY alterations. (A) Summary of ADCY alterations in AML (cBioPortal). (B) Details of ADCY alterations in AML (cBioPortal). (C) Gene relevance analysis among the ADCY family. (D) 3D genome of ADCYs in THP1 cells.
