Research Paper Volume 12, Issue 11 pp 10809—10826
LncRNA and mRNA expression profiles reveal the potential roles of lncRNA contributing to regulating dural penetration in clival chordoma

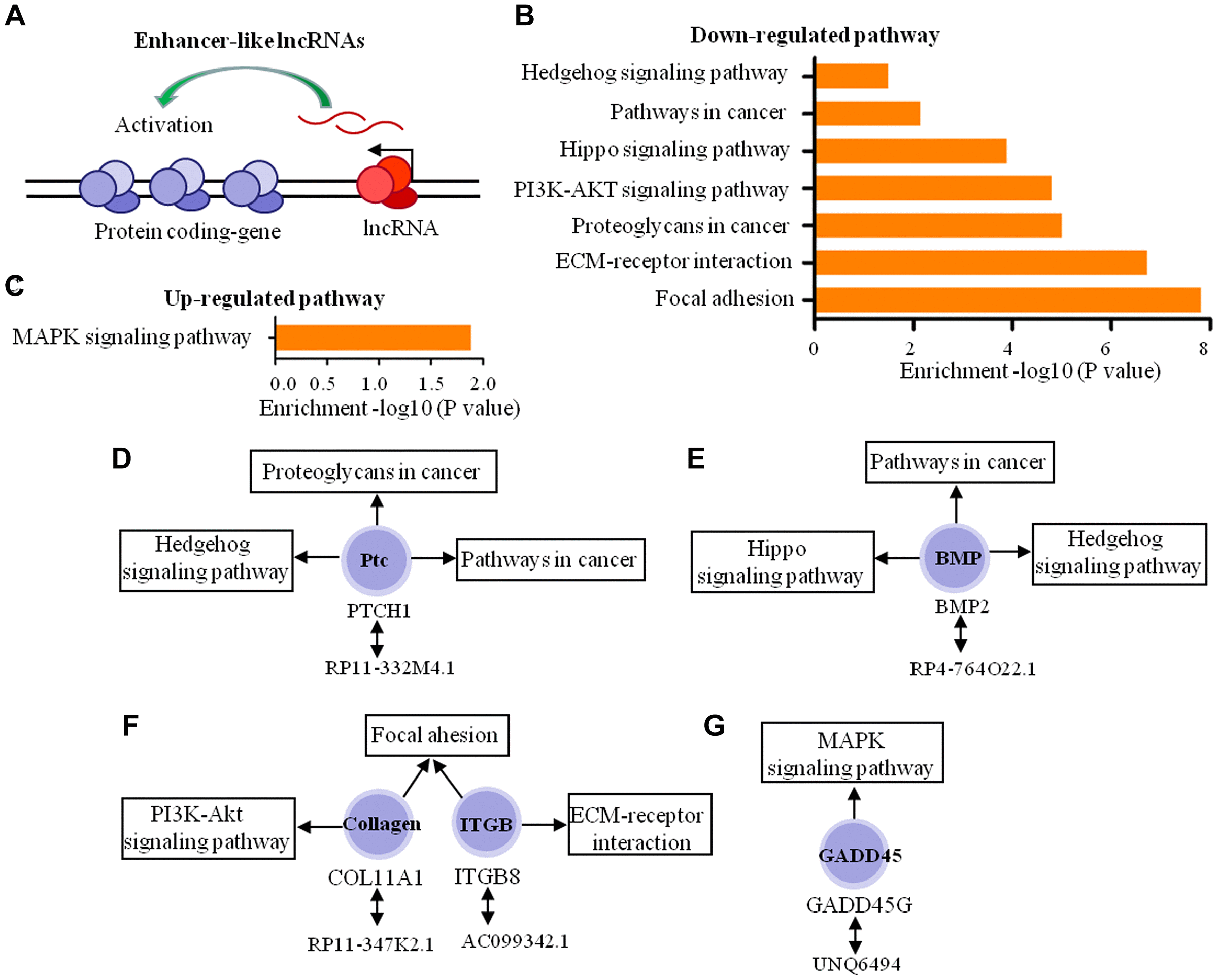

Figure 7. Biological function predictions of the enhancer-like lncRNAs by pathway analysis of their adjacent coding-genes within 300 kb in the genome. (A) Schematic representation of enhancer-like lncRNA. (B, C) The pathway analysis applied for 5 mRNAs that regulated by 5 enhancer-like lncRNAs and showed the 7 down-regulated pathways and 1 up-regulated pathways (P < 0.05). (D–G) The 5 enhancer-like lncRNAs, 5 coding genes, and signaling pathways in which these coding genes participated.
