Figure 6 — in vivo cellular evidence of autophagic associated spermiophagy within the principal cells during sperm storage in epididymis of the turtle

Research Paper|Volume 12, Issue 10|pp. 8987–8999

in vivo cellular evidence of autophagic associated spermiophagy within the principal cells during sperm storage in epididymis of the turtle

Back to articleFigure 6(6 of 9)

100%

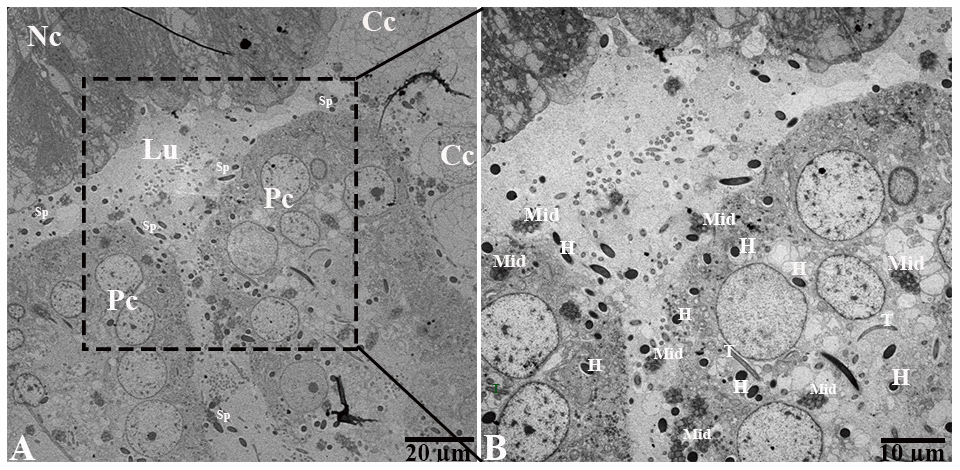

Figure 6.Transmission electron micrograph of epididymis during hibernation. Cc: clear cell; Lu: lumen, Nc: narrow cell, Pc: principal cell, Sp: spermatozoa (H: head, Mid: midpiece, T: tail). Scale bar: (A) 20 μm and (B) 10 μm.
