Research Paper Volume 12, Issue 8 pp 7042—7055

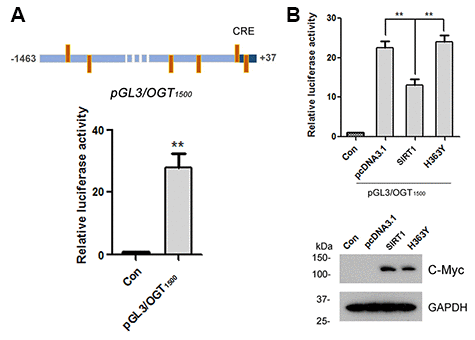

Figure 4. SIRT1 suppresses luciferase expression driven by OGT promoter. (A) The upper panel represents the schematic diagram of constructed plasmid of pGL3/OGT₁₅₀₀, a luciferase reporter plasmid driven by human OGT promoter (−1463 ~ +37). There are six CRE-like elements within human OGT promoter region -1463 ~ +37 bp. pGL3/ OGT₁₅₀₀ or pGL3-basic vector was co-transfected together with pRL-Tk into HEK-293A cells. After 48 h transfection, the luciferase activity was measured and normalized with Renilla luciferase (pRL-TK). The relative activity of luciferase was presented as mean ± S.D., **, p < 0.01. (B) pGL3/ OGT₁₅₀₀ or pGL3-basic vector was co-transfected together with pRL-Tk into HEK-293A cells overexpressing Myc-SIRT1 or Myc-H363Y. After 48 h transfection, the luciferase activity was measured and normalized with Renilla luciferase (pRL-TK). The relative activity of luciferase was presented as mean ± S.D., **, p < 0.01.
