Figure 7 — FHL3 promotes pancreatic cancer invasion and metastasis through preventing the ubiquitination degradation of EMT associated transcription factors

Research Paper|Volume 12, Issue 1|pp. 53–69

FHL3 promotes pancreatic cancer invasion and metastasis through preventing the ubiquitination degradation of EMT associated transcription factors

Back to articleFigure 7(7 of 7)

100%

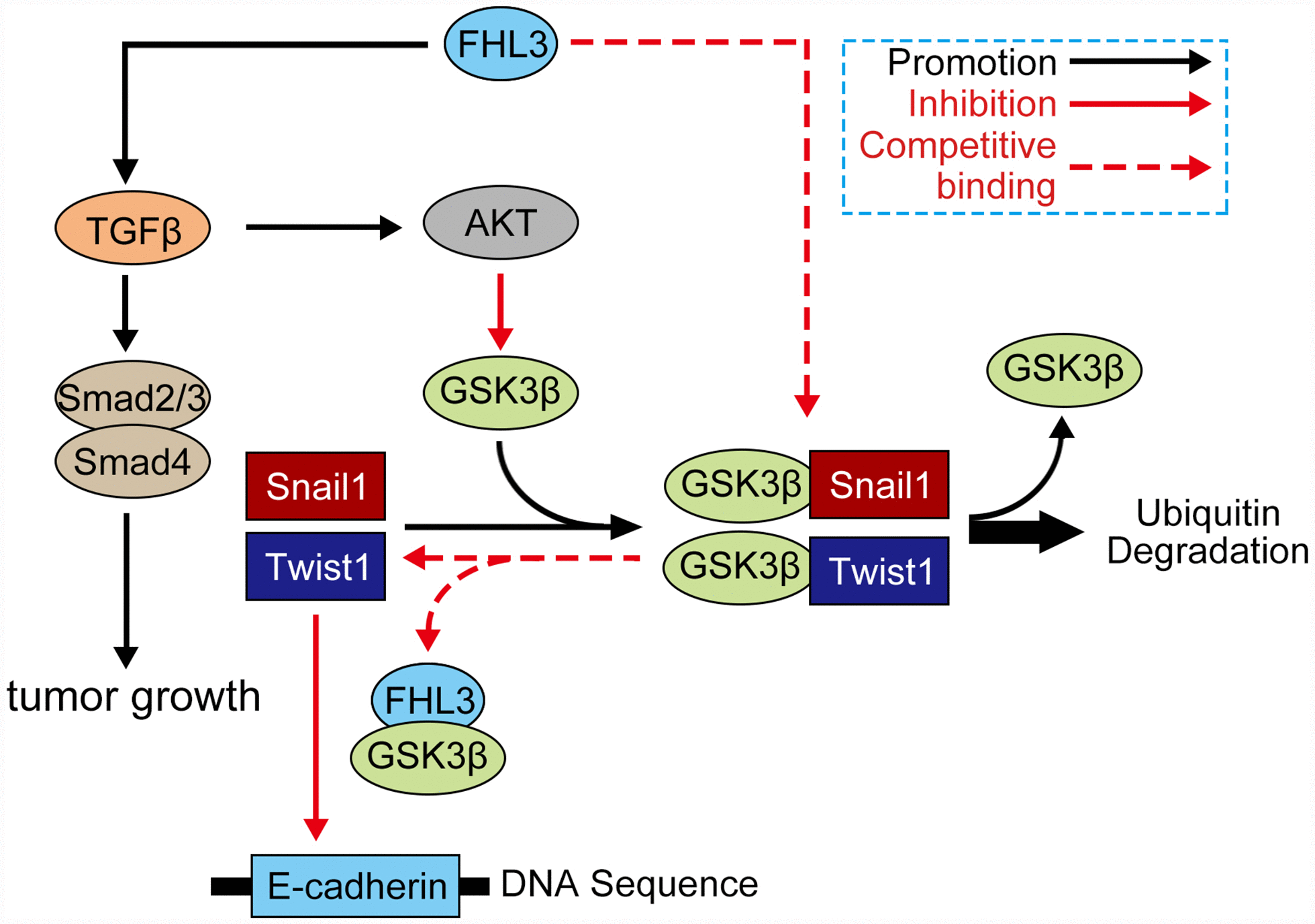

Figure 7.Mechanism of FHL3 in regulation of EMT process. Protein which involved in signaling: AKT (AKT, ser437-AKT), GSK3β (GSK3β, ser9-GSK3β, try216-GSK3β), FHL3, snail1, twist1, TGFβ1, smad (smad_2/3, smad₄), and E-cadherin.
