Figure 3 — A twenty gene-based gene set variation score reflects the pathological progression from cirrhosis to hepatocellular carcinoma

Research Paper|Volume 11, Issue 23|pp. 11157–11169

A twenty gene-based gene set variation score reflects the pathological progression from cirrhosis to hepatocellular carcinoma

Back to articleFigure 3(3 of 8)

100%

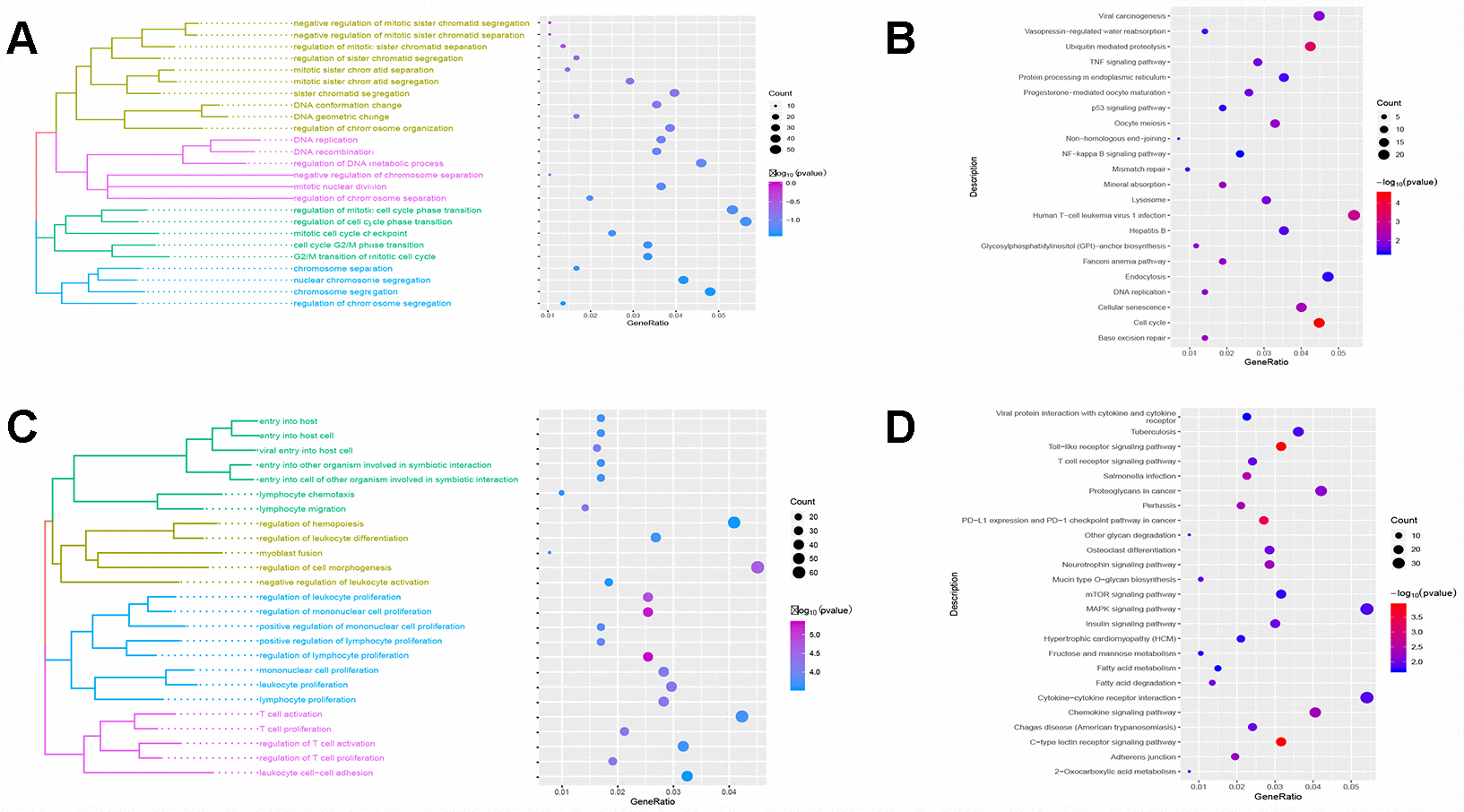

Figure 3.Results of functional enrichment. (A) The red module is significantly enriched in biological processes. (B) The red module is significantly enriched in KEGG pathways. (C) The green module is significantly enriched in biological processes. (D) The green module is significantly enriched in KEGG pathways.
