Figure 6 — Clinical and transcriptional signatures of human CD204 reveal an applicable marker for the protumor phenotype of tumor-associated macrophages in breast cancer

Research Paper|Volume 11, Issue 23|pp. 10883–10901

Clinical and transcriptional signatures of human CD204 reveal an applicable marker for the protumor phenotype of tumor-associated macrophages in breast cancer

Back to articleFigure 6(6 of 7)

100%

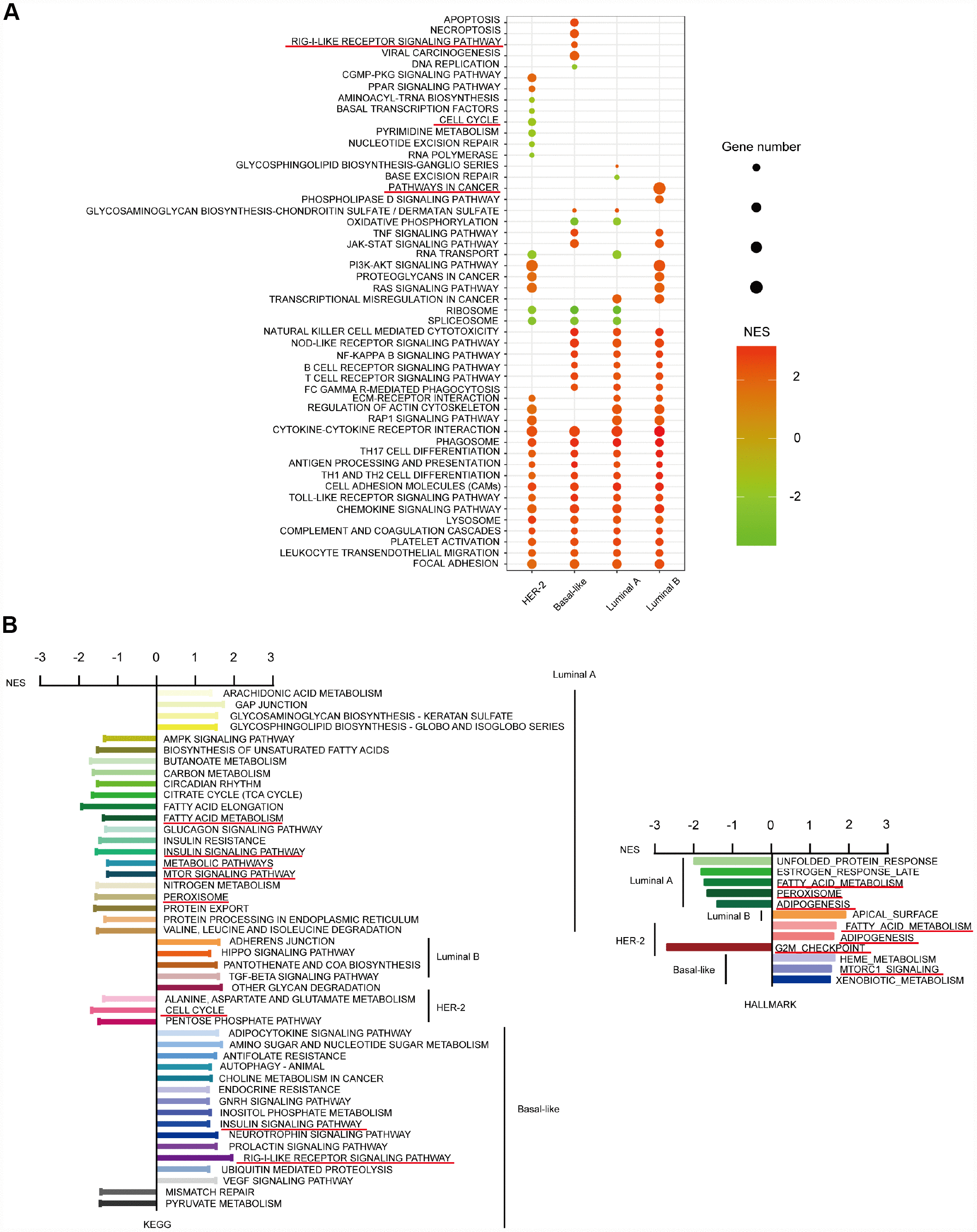

Figure 6.CD204-related special KEGG and HALLMARK pathways for the four subtypes of breast cancer. Top 30 gene sets and corresponding KEGG pathways influenced by CD204 between four subtypes using NES score and gene number screening (A). Special pathways in each subtypes (B).
