Development of a prognostic index based on an immunogenomic landscape analysis of papillary thyroid cancer
Back to article
Figure 7
(7 of 11)
−
100%
+
Figure 7.

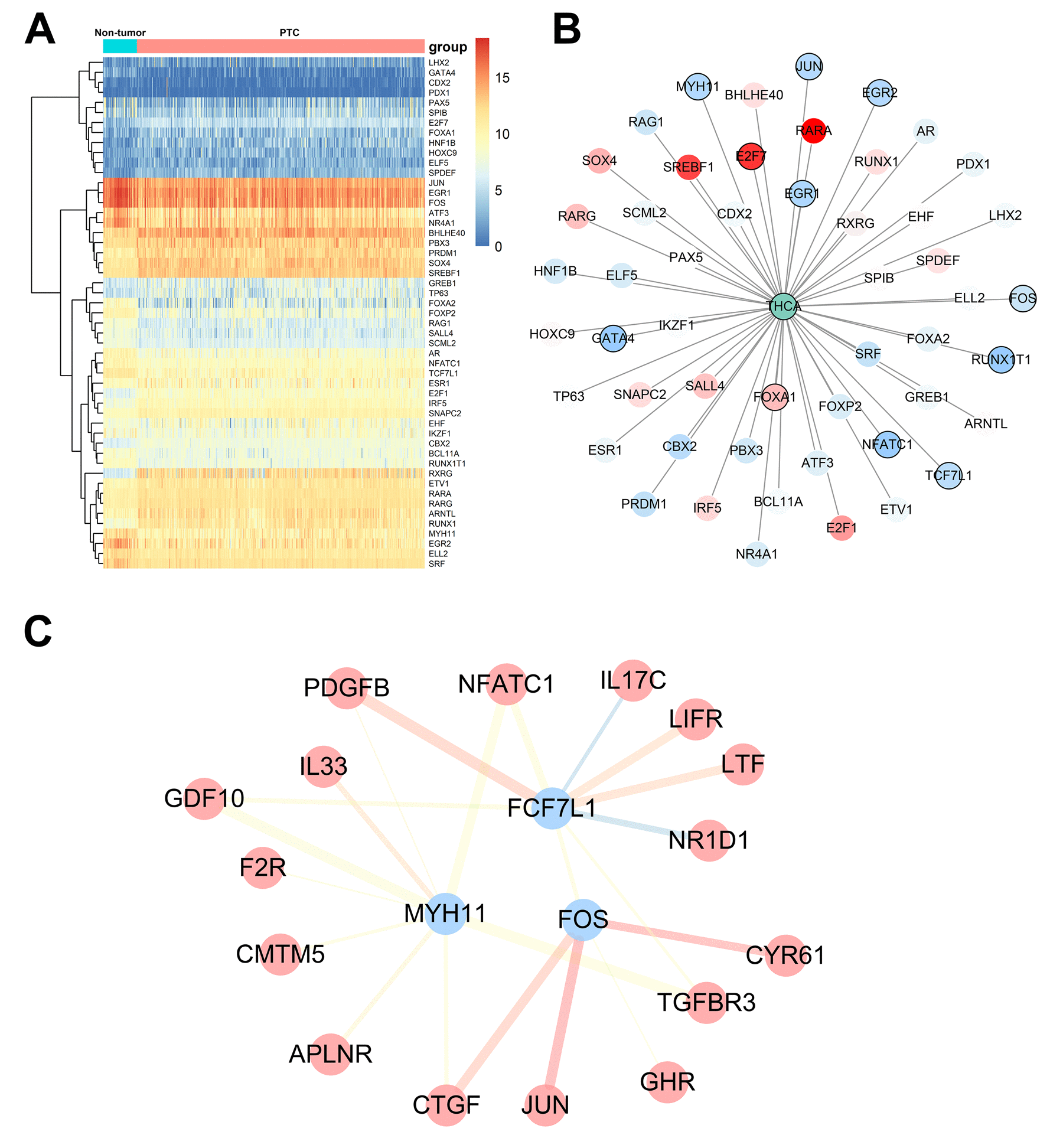

Transcription factor-mediated regulatory network.
(
A
) Differentially expressed transcription factors (TFs). (
B
) Survival analysis of differentially expressed TFs. (
C
) Regulatory network constructed based on clinically relevant TFs and IRGs.
