Figure 6 — Expansion induced microRNA changes in bone marrow mesenchymal stromal cells reveals interplay between immune regulation and cell cycle

Research Paper|Volume 8, Issue 11|pp. 2799–2813

Expansion induced microRNA changes in bone marrow mesenchymal stromal cells reveals interplay between immune regulation and cell cycle

Back to articleFigure 6(6 of 6)

100%

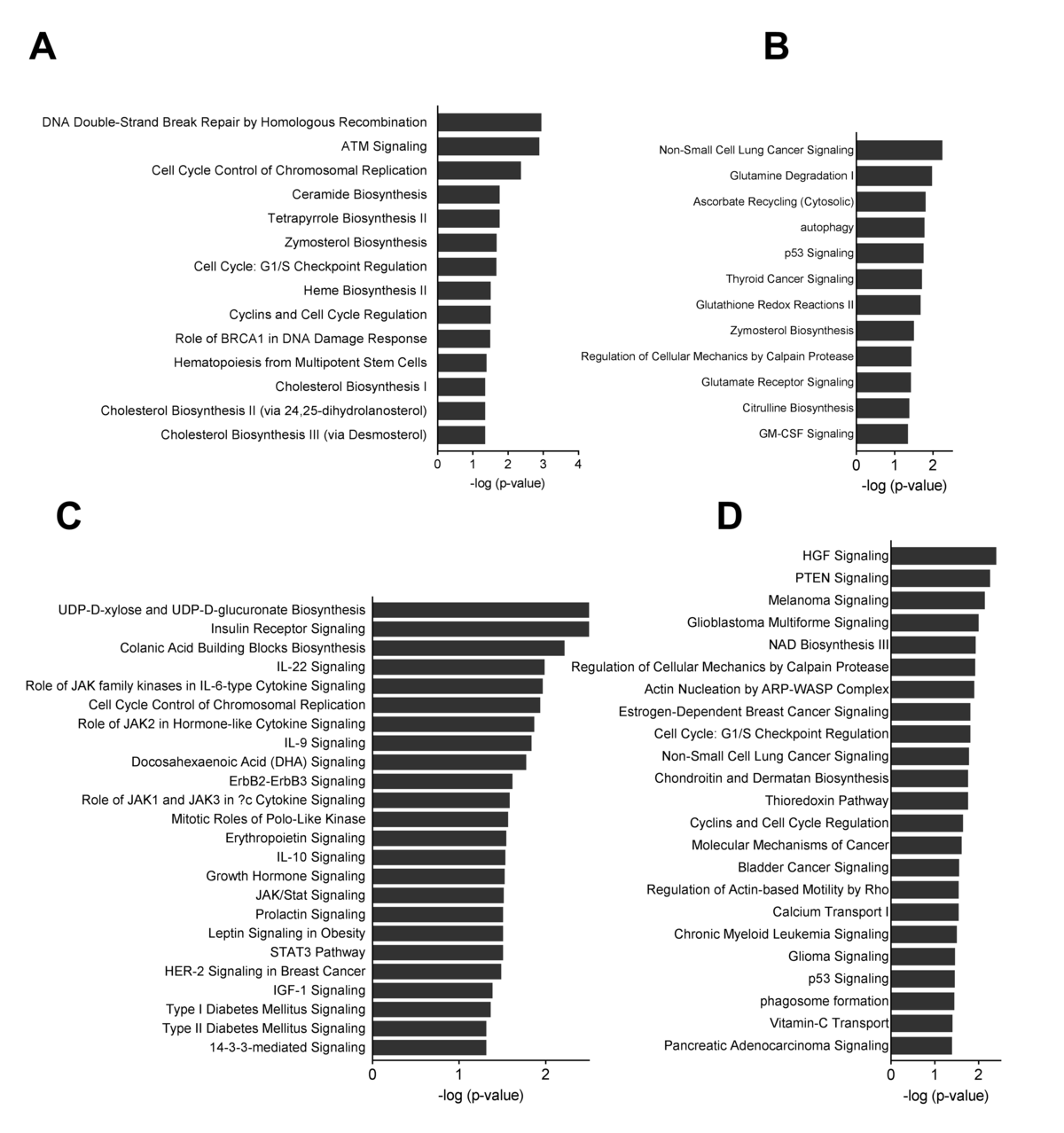

Figure 6.Pathway analyses of miRNA mRNA interactions. Canonical pathways were analyzed through the use of QIAGEN’s Ingenuity Pathway Analysis. (A) Group B o8-o4 down-regulated target mRNAs for up-regulated miRNAs (B) Group B o8-o4 up-regulated target mRNAs for down-regulated miRNAs (C). Group C y8-y4 down-regulated target mRNAs for up-regulated miRNAs (D). Group C y8-y4 up-regulated target mRNAs for up-regulated miRNAs.
