Figure 1 — Dissociation between iron accumulation and ferritin upregulation in the aged substantia nigra: attenuation by dietary restriction

Research Paper|Volume 8, Issue 10|pp. 2488–2508

Dissociation between iron accumulation and ferritin upregulation in the aged substantia nigra: attenuation by dietary restriction

Back to articleFigure 1(1 of 10)

100%

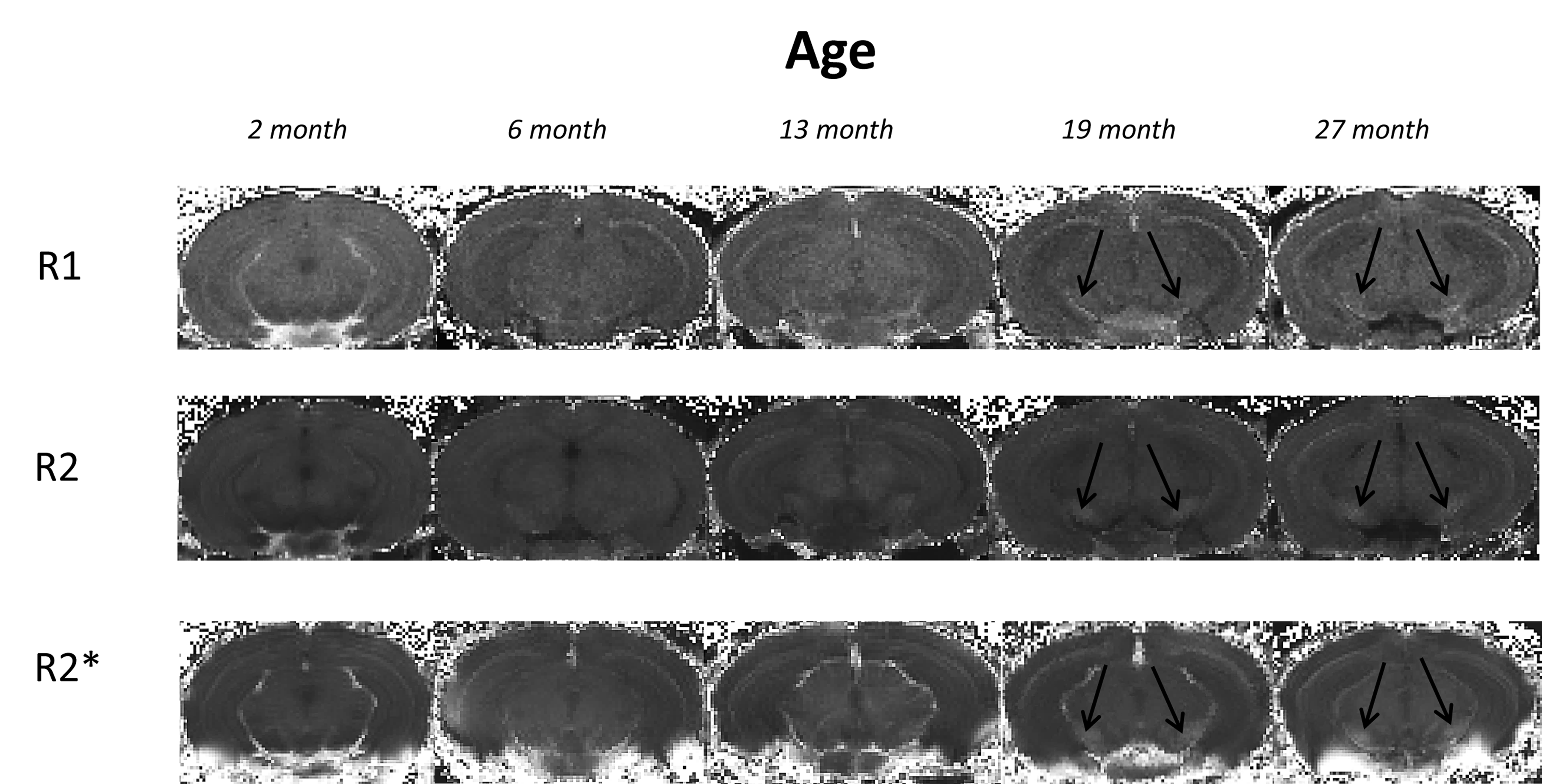

Figure 1.Typical 3I R1, R2 and R2* maps of brains at approximate bregma -3.28 from mice aged 2, 6, 13, 19 and 27 month in study 1. Black arrows indicate the substantia nigra.
