Research Paper Volume 7, Issue 11 pp 937—955

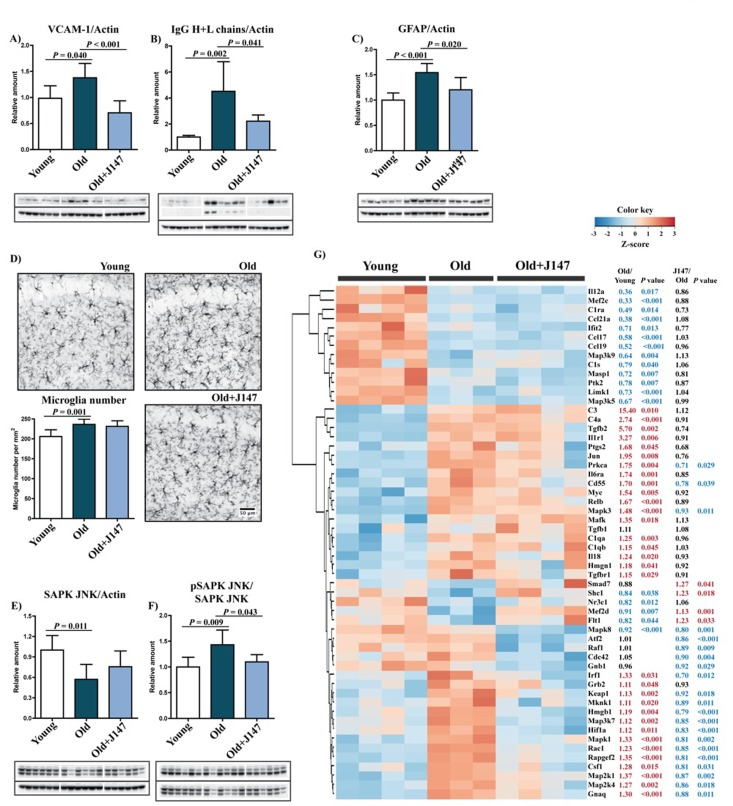

Figure 4. Increased inflammation and gliosis in the hippocampus of old SAMP8 mice are prevented by J147. Western blot analysis of the marker for vascular endothelial inflammation VCAM-1 (A) and of the IgG (Heavy + Light chains) content (B). (C) Astrocytosis, measured by Western blot of GFAP levels. One-way ANOVA followed by Tukey-Kramer post-hoc test (n = 6/group). (D) Microgliosis was assessed by immunohistochemical (IHC) staining and number of Iba-1-positive cells per mm² of total hippocampus calculated. Original magnification: x100. One-way ANOVA followed by Tukey-Kramer post-hoc test (n = 8/group). (E and F) Activation of the stress/inflammation-associated SAPK/JNK was measured by Western blot analysis of its phosphorylation at Thr183/Tyr185. One-way ANOVA followed by Tukey-Kramer post-hoc test (n = 6/group). All data are mean ± SD. (G) Quantitative RNA analysis of altered genes related to inflammation. Heatmap and hierarchical clustering of scaled gene expression with respective fold changes and P values for the comparisons Old/Young and Old+J147/Old. Scaled expression value (Z-score) is plotted in red-blue color scale with red indicating high expression and blue indicating low expression. One-way ANOVA followed by Tukey-Kramer post-hoc test (n = 3-4/group).
