Figure 7 — Deletion of caspase-8 in mouse myeloid cells blocks microglia pro-inflammatory activation and confers protection in MPTP neurodegeneration model

Research Paper|Volume 7, Issue 9|pp. 673–689

Deletion of caspase-8 in mouse myeloid cells blocks microglia pro-inflammatory activation and confers protection in MPTP neurodegeneration model

Back to articleFigure 7(7 of 7)

100%

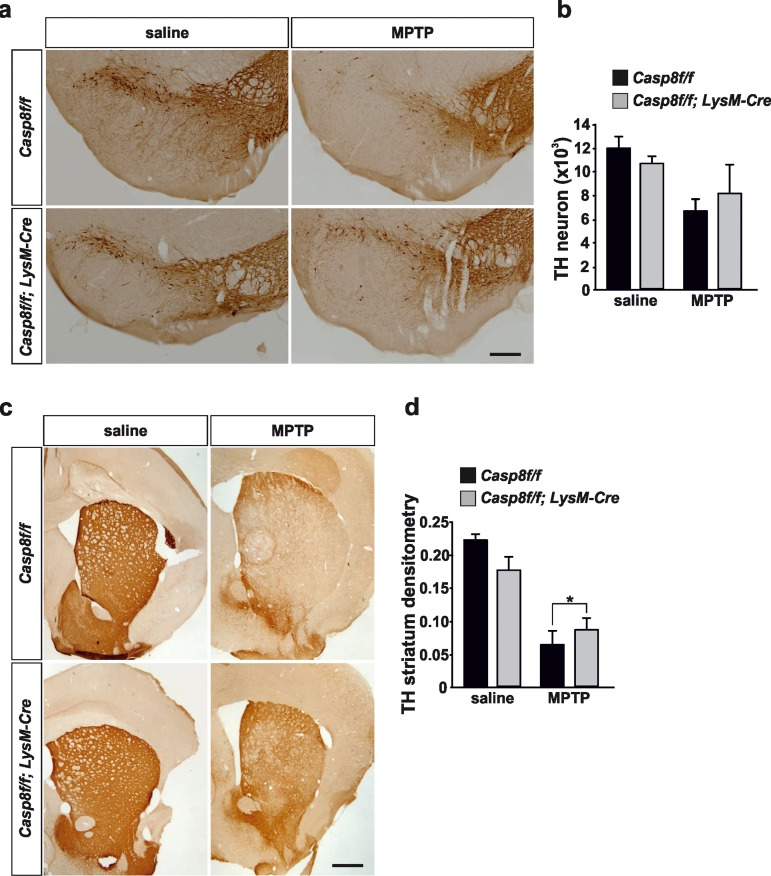

Figure 7.Caspase-8 deficiency protects the nigro-striatal dopaminergic system against the MPTP-induced neurodegenerative changesIllustration of tyrosine-hydroxylase (TH) immunoreactivity in substantia nigra (a) and striatum (c) in response to either saline or MPTP in Casp8^fl/fl and Cre^LysMCasp8^fl/fl mice. Stereological quantification of TH-labeled neurons of each condition is shown in (b). There was less loss of nigra dopaminergic neurons in response to MPTP in Cre^LysMCasp8^fl/fl mice, this effect being close to statistical significance. Analysis of integrity of striatal dopaminergic nerve endings (d) demonstrated significantly less MPTP-induced loss of TH immunoreactivity in Cre^LysMCasp8^fl/fl mice as compared with Casp8^fl/fl mice (p <0.05). Scale bar: a: 400 μm; c: 500 μm.
