Research Paper|Volume 6, Issue 7|pp. 545–563
A role for SUV39H1-mediated H3K9 trimethylation in the control of genome stability and senescence in WI38 human diploid lung fibroblasts
Back to articleFigure 3(3 of 9)
100%
Figure 3

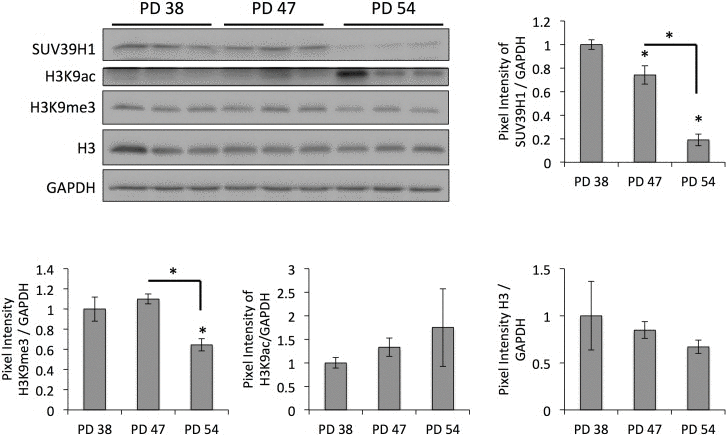

Figure 3.Age-dependent downregulation of SUV39H1 correlates with a reduction in H3K9me3 levelsRepresentative Western blots and bar graphs showing the signal quantifications. Averages of three samples ± SD. Expression levels were normalized to the expression in PD 38 cells.
Figure 3 — A role for SUV39H1-mediated H3K9 trimethylation in the control of genome stability and senescence in WI38 human diploid lung fibroblasts | Aging
