Figure 2 — The Werner syndrome protein: linking the replication checkpoint response to genome stability

Research Perspective|Volume 3, Issue 3|pp. 311–318

The Werner syndrome protein: linking the replication checkpoint response to genome stability

100%

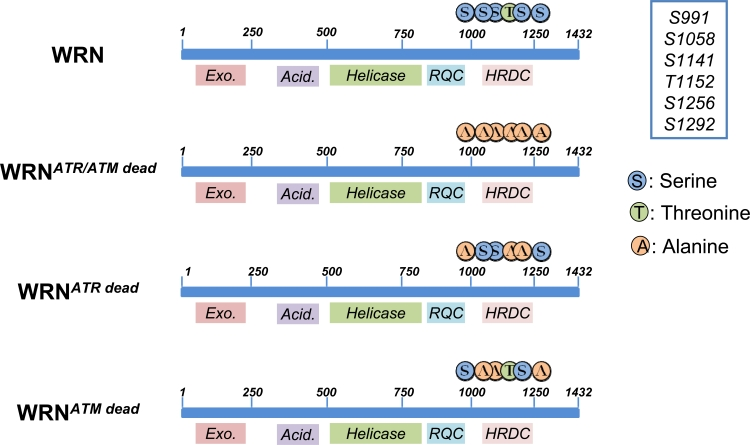

Figure 2.Schematic representation of ATR/ATM-phosphorylation sites clustered on the C-terminal region of wild-type (WRN) or mutant forms of WRN (WRN^ATR/ATMdead, WRN^ATRdead and WRN^ATMdead). Locations of Alanine substitutions are indicated
