Research Paper Volume 2, Issue 6 pp 353—360

SIRT1 reduces endothelial activation without affecting vascular function in ApoE-/- mice

class="figure-viewer-img"

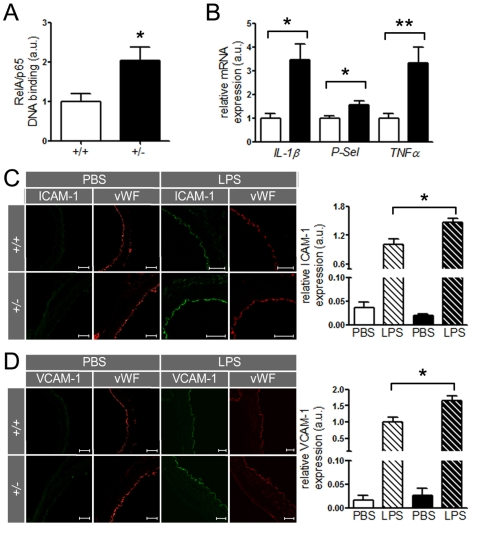

Figure 5. SIRT1 prevents expression of endothelial adhesion molecules. (A) RelA/p65 DNA-binding in aortic nuclear extracts from ApoE-/- SIRT1+/- (+/-, n=8, black column) is elevated in ApoE-/- SIRT1+/+ (+/+, n=6, white column) mice. (B) Expression levels of IL-1β, P-Selectin, and TNFα in aortic lysates of ApoE-/- SIRT1+/+ (white columns) and ApoE-/- SIRT1+/- (black columns) mice. n=8 per genotype. Enhanced expression of ICAM-1 (C) and VCAM-1 (D) is observed in non-atherosclerotic ApoE-/- SIRT1+/- (+/- and black columns) compared with ApoE-/- SIRT1+/+ (+/+ and white columns) aortae 3 h post intra-peritoneal LPS (striped columns) injection. n=6 per genotype. Scale: 50 μm. *p<0.05; **p< 0.01.
