Sphingolipids in prostate cancer prognosis: integrating single-cell and bulk sequencing

Single-cell sequencing data processing

The research made use of the website (http://www.pradcellatlas.com/#/) to obtain single-cell data related to prostate cancer, comprising a dataset encompassing 13 samples of single-cell sequencing data [21]. To ensure data quality, several criteria were applied:

1. Genes expressed in fewer than 3 cells were excluded.

2. Cells with gene expression levels falling between 200 and 5000 were retained.

3. Cells with less than 10 percent of their mitochondrial genes were retained.

4. Cells with a total gene expression below 50000 were preserved.

Following these quality control measures, steps were taken to mitigate batch effects between samples and cells using the “SCT” approach. To reduce the dimensionality of the samples, the “dims” parameter was set to 20, and the UMAP method was employed. The parameters were configured with K.Paam set at 20, resolution at 0.4, a random seed of 2023, and the KNN method utilized for cell clustering. Cell annotations were determined based on marker genes corresponding to cell types documented in the published literature.

Bulk transcriptome data processing

The prostate cancer TCGA cohort data were acquired from the UCSC Xena website (https://xenabrowser.net/). These data underwent a standardized processing procedure, which included the alignment of transcriptome data with prognostic clinical data. Samples containing both types of data were retained for subsequent analysis.

Acquisition of gene set related to sphingolipid metabolism

Sphingolipid metabolism-related genes were sourced from the GeneCard website (https://www.genecards.org/). Genes with scores exceeding 3 were selected for further analysis, resulting in the retention of a total of 118 genes.

GO enrichment analysis

The GO database encompasses three components: cellular component (CC), molecular function (MF), and biological process (BP). To investigate enriched biological functions, we utilized the GO database and compared the provided gene list with the gene distribution within each category of biological functions. This step uses the clusterProfiler R package.

KEGG enrichment analysis

We utilized the KEGG database to identify enriched pathways associated with the given gene list. This involved a matching process where we compared the provided gene list with the genes documented in the human pathways within the KEGG database. This step uses the clusterProfiler R package.

Weighted gene coexpression network analysis (WGCNA)

In this study, we applied WGCNA (Weighted Gene Co-expression Network Analysis) to explore gene sets closely associated with sphingolipid metabolism in prostate cancer bulk-seq data. To determine the appropriate soft threshold, we considered a range from 1 to 10 with increments of 1, and from 12 to 20 with increments of 2, using the “pickSoftThreshold” function from the “WGCNA” R package. We set the minimum number of genes per module to 150, configured a “deepSplit” value of 2 for gene clustering, and integrated the analysis with sphingolipid phenotype data.

Construction and validation of the prognostic model

In this study, we divided the TCGA cohort into two groups randomly using the “caret” package. Initially, we conducted univariate Cox analysis, with a significance threshold set at p < 0.05, to identify genes associated with prognosis. Subsequently, we utilized LASSO regression for further screening and the construction of a prognostic model. We then proceeded to perform prognostic analysis of the model in three separate sets: the training set, the validation set, and the entire cohort, to comprehensively evaluate its predictive performance.

Analysis of immune cell infiltration

We utilized the TIMER2 website (http://timer.cistrome.org/) to acquire immune cell infiltration data from the TCGA database, which had been derived using diverse computational techniques. Differences in the distribution of immune cells between the high-risk and low-risk groups determined by the model were subsequently examined. To visualize these distinctions, heat maps were employed. Following this, the expression levels of immunodetection point genes, leukocyte antigens, and tumor necrosis-related genes between the two groups were investigated.

Drug sensitivity analysis

The “pRRophetic” package was employed in this study to predict the IC50 (half-maximal inhibitory concentration) of drugs. This prediction involved a comparison between the expression pattern of prostate cancer and the training pattern linked to drug responses.

The construction of the nomogram

To evaluate patient outcomes, we utilized the “regplot” package to generate nomograms, which are based on patient models and clinical data. These nomograms provide a comprehensive visualization and assessment of patient prognostic information.

The expression of model gene ILF3 in prostate cancer was verified by PCR

Five patients with prostate cancer were enrolled between January 2022 and December 2022, all of whom were diagnosed with prostate cancer by prostate biopsy before surgery. After admission, they underwent surgery to remove prostate cancer. The tumor tissue was divided into an experimental group, and the adjacent normal tissue was used as normal control group. The expression level of ILF3 was detected by PCR. The study was approved by the Ethics Committee of The Affiliated Huaian No. 1 People’s Hospital of Nanjing Medical University. Tissue-derived total RNA was extracted and utilized to synthesize complementary DNA (cDNA) following the manufacturer’s instructions provided in the PrimeScript^™ RT reagent kit with gDNA Eraser (TaKaRa, Kusatsu, Japan). Quantitative reverse transcription-polymerase chain reaction (qRT-PCR) was conducted using the AceQ Universal SYBR qPCR Master Mix (Vazyme, Nanjing, China) on a QuantStudio 7 PCR system (Thermo Fisher Scientific, CA, USA). The primer set employed in this study is detailed below:

For ILF3: Forward Primer for ILF3: 5′-GAACGTA AAACAGCAGGGGC-3′; Reverse Primer for ILF3: 5′-GTCCATCCACTTCGACCTCC-3′.

For GAPDH: Forward Primer: 5′-ACCCACTCCTCCA CCTTTGA-3′; Reverse Primer: 5′-CTGTTGCTGTAG CCAAATTCGT-3′.

Single-cell sequencing data analysis of sphingolipid metabolism in prostate cancer

Initially, our investigation centered on sphingolipid metabolism enrichment at the single-cell level. In Figure 1A, 1B, it is evident that following quality control and sample integration, we retained 11 tumor samples, and there was no noticeable batch effect among them. The clustering of tumor samples into 15 distinct clusters is demonstrated in Figure 1C–1E. We categorized these clusters into 5 cell types based on the expression of cell type marker genes from previously published research. These cell types include Basal and Intermediate Cells, Endothelial Cells, Fibroblast Cells, Monocytic Cells, and T Cells.

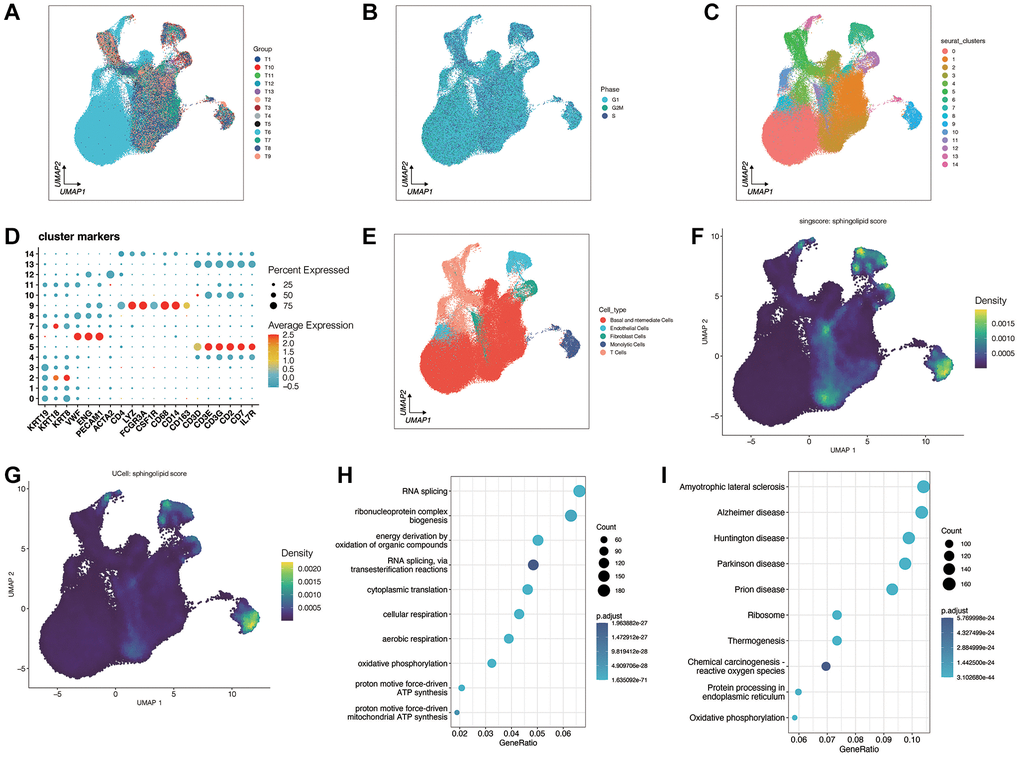

Figure 1. Analysis of single-cell sequencing data for prostate cancer. (A, B) Quality control and sample integration. (C–E) The dimensionality reduction clustering was performed on all cells. All cells are grouped into 15 clusters. After annotating the different clusters, a total of five cell types were obtained. (F, G) A sphingolipid metabolism score was performed. (H, I) Gene enrichment analysis between high sphingolipid metabolism score group and low sphingolipid metabolism score group.

Subsequently, we calculated sphingolipid metabolic enrichment scores utilizing the “UCell” and “singscore” methods from the “irGSEA” package, using sphingolipid metabolic genes. Patients were then divided into high and low groups based on the median value of metabolic enrichment scores, using the “singscore” method. Differential expression analysis was performed, leading to the identification of 3014 genes with a significance threshold of p < 0.05. As depicted in Figure 1F, 1G, the enrichment results from both methods were consistent, with sphingolipid metabolism primarily enriched in Endothelial Cells and Fibroblast Cells.

Subsequent analysis focused on pathways potentially associated with sphingolipid metabolism, as shown in Figure 1H, 1I. These pathways predominantly encompass RNA synthesis, ribonucleoprotein complex synthesis, energy synthesis, heat production, and endoplasmic reticulum protein processing of organic compound oxidation.

WGCNA analysis

Following that, we conducted a transcriptome data analysis to pinpoint genes linked to sphingolipid metabolism. Initially, we determined the sphingolipid metabolism enrichment fraction for each prostate cancer sample using the ssGSEA method. Subsequently, we carried out WGCNA analysis. In Figure 2A, it’s evident that when the optimal soft threshold is set to 7, the data conforms to a power law distribution, and the Mean connectivity shows stability.

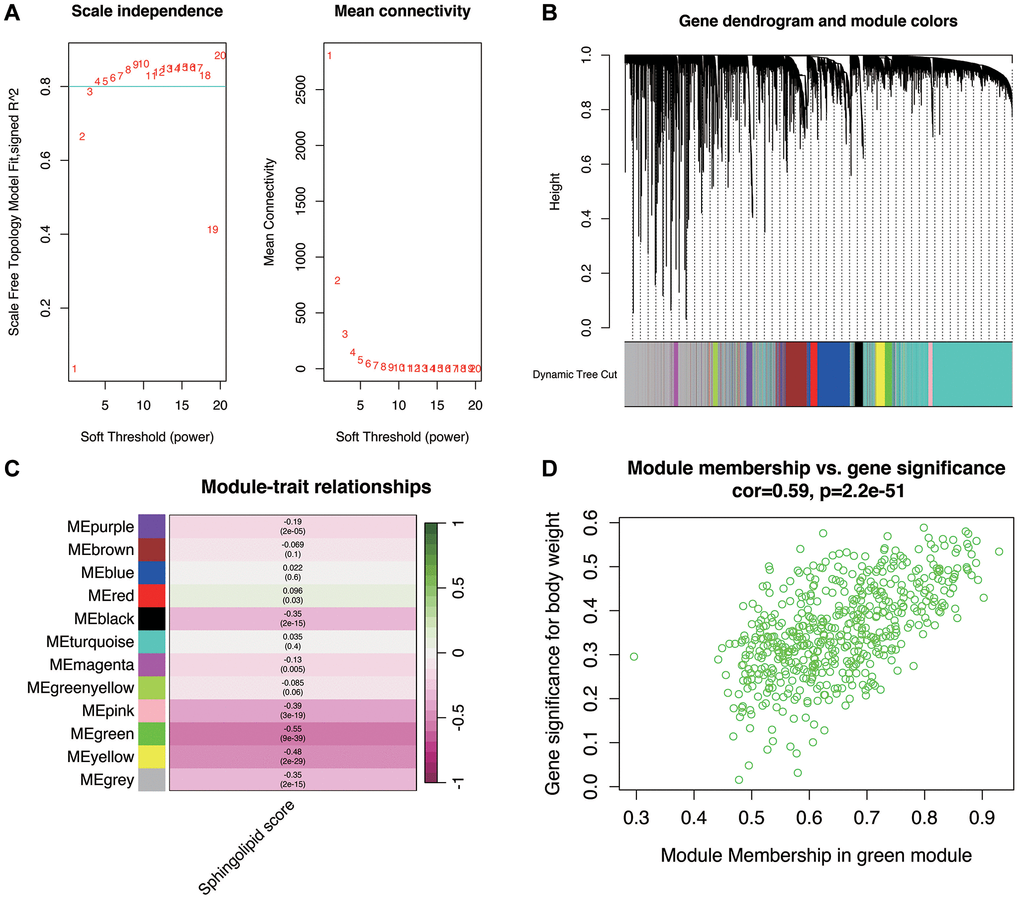

Figure 2. Weighted gene coexpression network analysis. (A) When the optimal soft threshold is 7, the data conform to the power law distribution, and the Mean connectivity tends to be stable. (B, C) Genes clusters. They were clustered into 11 non-gray modules, of which the green module was most correlated with the sphingolipid metabolism phenotype. (D) Correlation of green modules.

In Figure 2B, 2C, the genes were grouped into 11 non-gray modules, with the green module demonstrating the highest correlation with the sphingolipid metabolism phenotype (correlation = −0.55 and p < 0.05). A closer look at the inter-gene correlations within the green module is presented in Figure 2D. Module membership within the green module was found to be positively correlated with Gene significance for body weight (correlation = 0.59 and p < 0.05).

Construction and validation of the prognostic model

To identify more robust genes associated with sphingolipid metabolism in prostate cancer, we merged the 3014 genes obtained from single-cell analysis with the 534 genes acquired from WGCNA analysis, resulting in a total of 57 genes. For clinical applications, we constructed a prognostic model.

In Figure 3A, we conducted a univariate Cox analysis with a significance threshold of p < 0.05, and this led to retaining a total of 43 genes. Subsequently, we employed LASSO regression, as shown in Figure 3B, 3C, which resulted in the selection of 5 genes for the model: “FUS,” “MARK3,” “CHTOP,” “ILF3,” and “ARIH2.” The sphingolipid-related risk score (SRSRs) was then computed based on the sphingolipid metabolism correlation model.

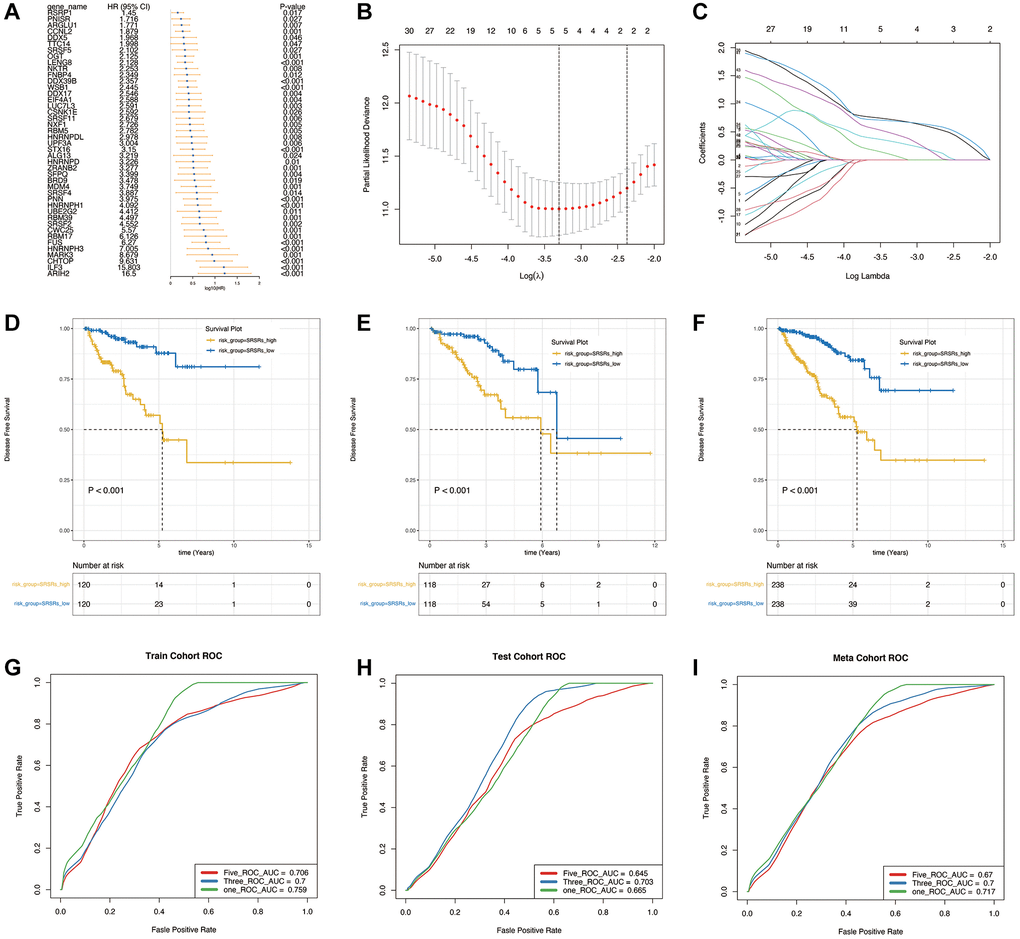

Figure 3. Construction and validation of the prognostic model. (A) Univariate Cox analysis to obtain the prognosis-related genes. (B, C) LASSO regression to construct the prognostic model. (D–F) Survival analysis in the training cohort, validation cohort and the entire meta cohort. (G–I) The prognostic ROC analysis in the training cohort, validation cohort and the entire meta cohort.

Figure 3D–3F illustrate that in the training cohort, validation cohort, and the entire meta cohort, patients in the SRSRs_high group exhibited poorer prognosis and shorter disease-free survival. Prognostic ROC analysis, as depicted in Figure 3G–3I, indicated that the model demonstrated good accuracy in assessing patient prognosis at 1, 3, and 5 years.

The expression of model genes in different cell types and pseudo-time series analysis

We proceeded with the analysis of the expression distribution of the five genes comprising the model at the single-cell level. As shown in Figure 4A–4E, these five genes predominantly exhibit expression in Fibroblast Cells. Consequently, we isolated the Fibroblast Cells and conducted a pseudo-time series analysis.

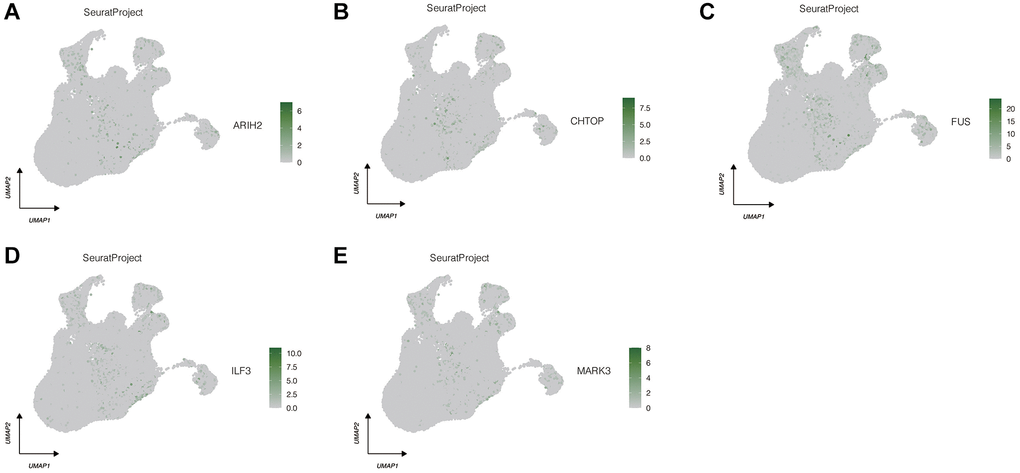

Figure 4. Expression localization of 5 model genes in different cell types. (A) ARIH2. (B) CHTOP. (C) FUS. (D) ILF3. (E) MARK3.

In Figure 5A–5D, the color scale indicates the differentiation stages, with darker blue representing early cell differentiation and darker red indicating late differentiation. There are five cell differentiation states in total, with cluster 12 primarily in differentiation states 1, 2, and 3, while cluster 11 primarily occupies state 1, and state 4 contains both cluster 11 and cluster 12. Additionally, we observed that Fibroblast Cells with high sphingolipid enrichment scores exhibited more advanced differentiation.

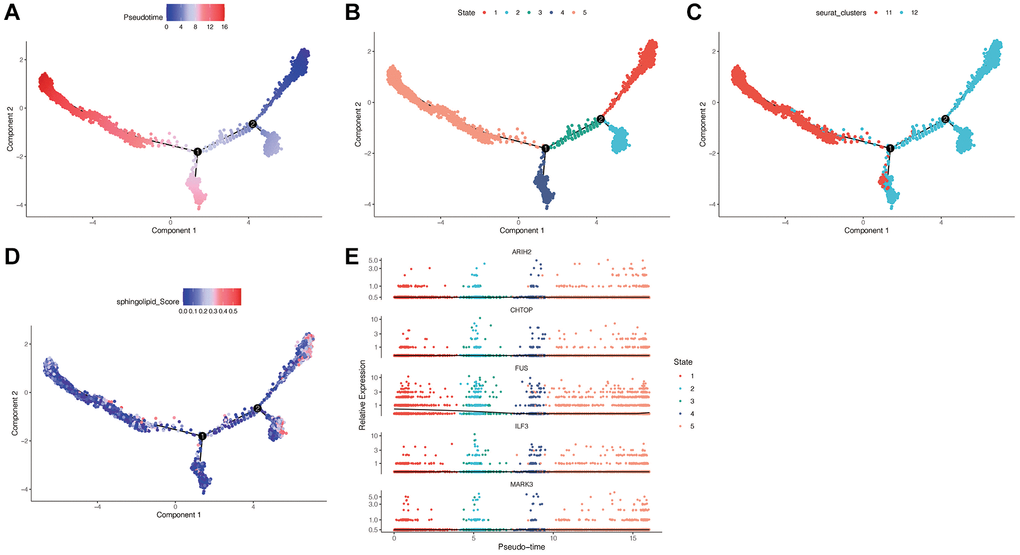

Figure 5. Pseudo-time series analysis. (A) Darker blue indicates early cell differentiation, while darker red indicates late differentiation. (B) Different cell differentiation states in total. (C) Different clusters. (D) The relation between sphingolipid enrichment score and cell differentiation. (E) The expression of FUS genes is gradually down-regulated as Fibroblast Cells differentiate.

As displayed in Figure 5E, the expression of the FUS gene gradually down-regulates as Fibroblast Cells undergo differentiation.

Immune cell infiltration and drug sensitivity analysis

We proceeded to investigate the disparities in immune cell infiltration between the two groups defined by the model. As depicted in Figure 6A, the SRSRs_high group exhibited a higher level of immune infiltration by T cells and NK cells. In Figure 6B, 6C, it was observed that most leukocyte antigen genes, immune checkpoint genes, and tumor necrosis genes were highly expressed in the SRSRs_high group, including genes like BTLA, CD80, PDCD1, CXCL10, and HLA-DQA2. However, some genes such as CD44 and CALR were underexpressed in the SRSRs_high group.

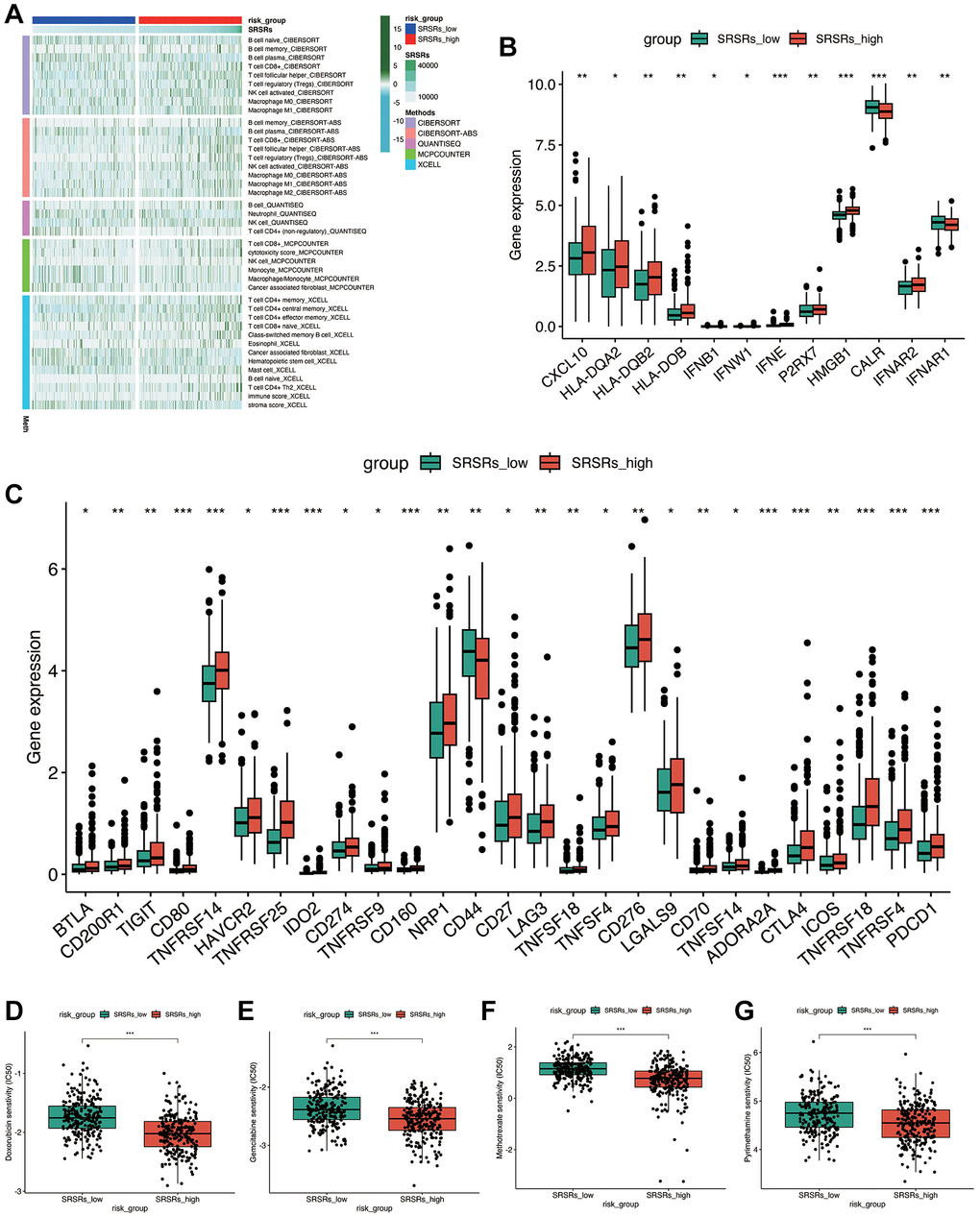

Figure 6. Immune cell infiltration and drug sensitivity analysis. (A) Immune cell infiltration landscape between SRSRs_high group and SRSRs_low group. (B, C) The expression level of leukocyte antigen genes, immune checkpoint genes and tumor necrosis genes between SRSRs_high group and SRSRs_low group. (D–G) Drug sensitivity analysis.

To enhance the potential for more effective patient treatment, we predicted potentially beneficial drugs. Figure 6D–6G illustrates that Doxorubicin, Gemcitabine, Methotrexate, and Pyrimethamine had lower IC50 values in patients within the SRSRs_high group compared to those in the SRSRs_low group, suggesting that these drugs may be more suitable for treating patients in the SRSRs_high group.

Construction of the nomogram

To enhance the prediction of patient prognosis, we developed a nomogram. Figure 7A provides the 1, 3, and 5-year recurrence or mortality rates for patients in the TCGA database, which were 0.0475, 0.14, and 0.203, respectively. Figure 7B, 7C illustrate that the prognostic ROC curve analysis demonstrated the effectiveness of the nomogram in predicting patient prognosis, with an AUC consistently around 0.8. This performance surpassed that of other clinical indicators. Moreover, using the nomogram for clinical decision-making would be most advantageous for patients.

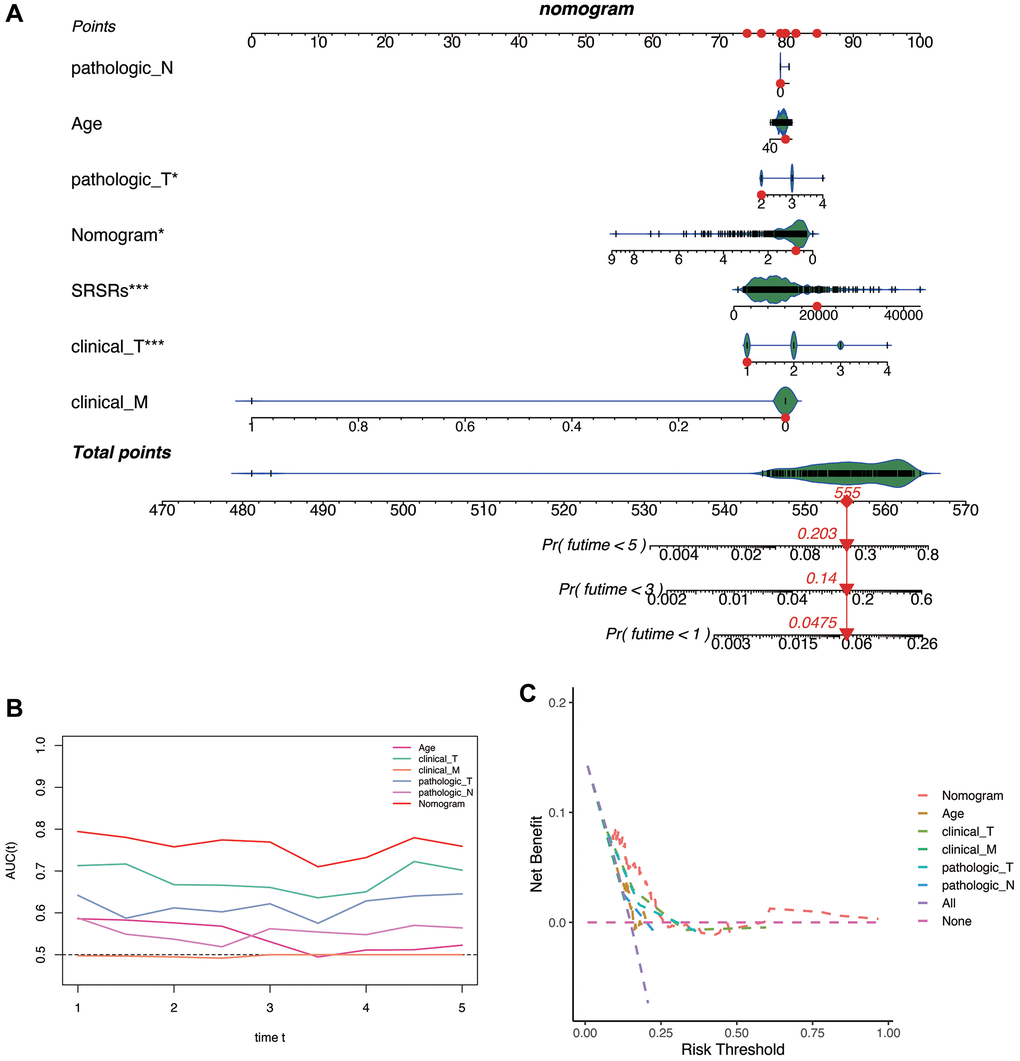

Figure 7. Construction of the nomogram. (A) The 1-, 3-, and 5-year recurrence or mortality rates for patients TCGA-HC-A8D0 in the TCGA database were 0.0475, 0.14, and 0.203. (B) Prognostic ROC curve analysis. (C) Clinical decision benefit curve.

PCR assay to verify the expression of ILF3 in prostate cancer tissues

Figure 8 presents the results of PCR verification of ILF3 expression in prostate cancer tissues and normal controls. The results indicated a significant upregulation of ILF3 in prostate cancer tissues (^*p < 0.05), suggesting its potential relevance in the context of prostate cancer.

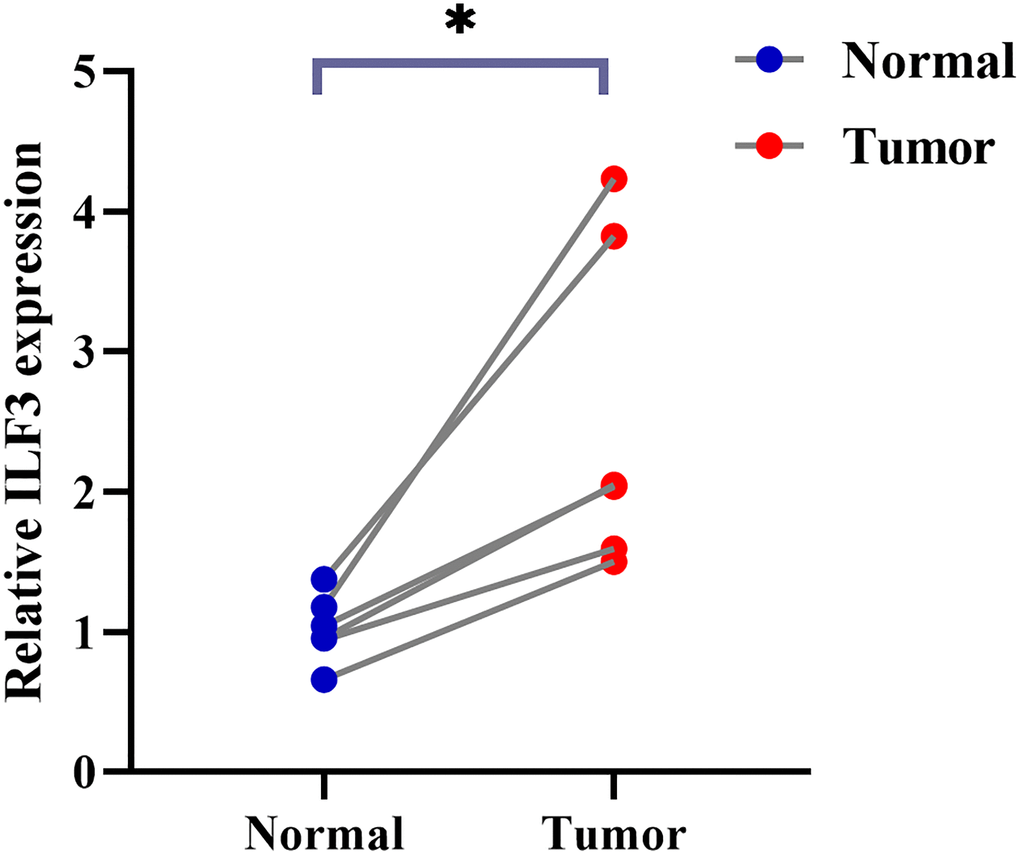

Figure 8. PCR test. ILF3 was highly expressed in prostate cancer tissues (^*p < 0.05).
