Research Paper Volume 16, Issue 21 pp 13371—13391
Upregulation of multiple key molecules is correlated with poor prognosis and immune infiltrates in hepatocellular carcinoma by bulk and single-cell RNA-seq

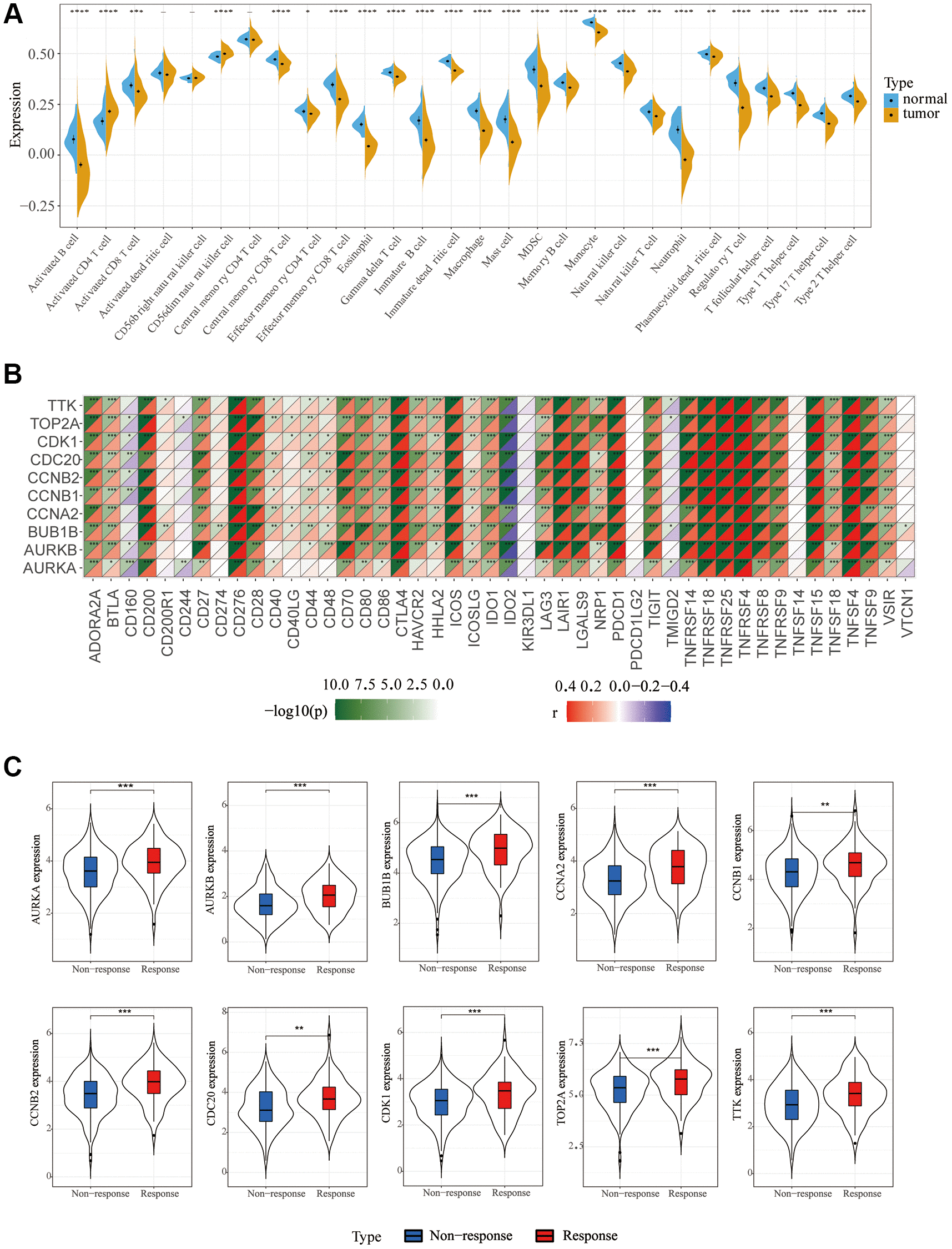

Figure 4. Immune cell infiltration and correlation analysis. (A) Differences in 28 TME infiltration cells between normal liver and LIHC tissues (*P < 0.05; **P < 0.01; ***P < 0.001). (B) The correlation between each key molecule and each immune checkpoint. Red, positive; Purple, negative. (C) Immunotherapy efficacy of 10 key genes.
