Research Paper Volume 16, Issue 19 pp 12697—12725

A new model and precious tool to study molecular mechanisms of macrophage aging

class="figure-viewer-img"

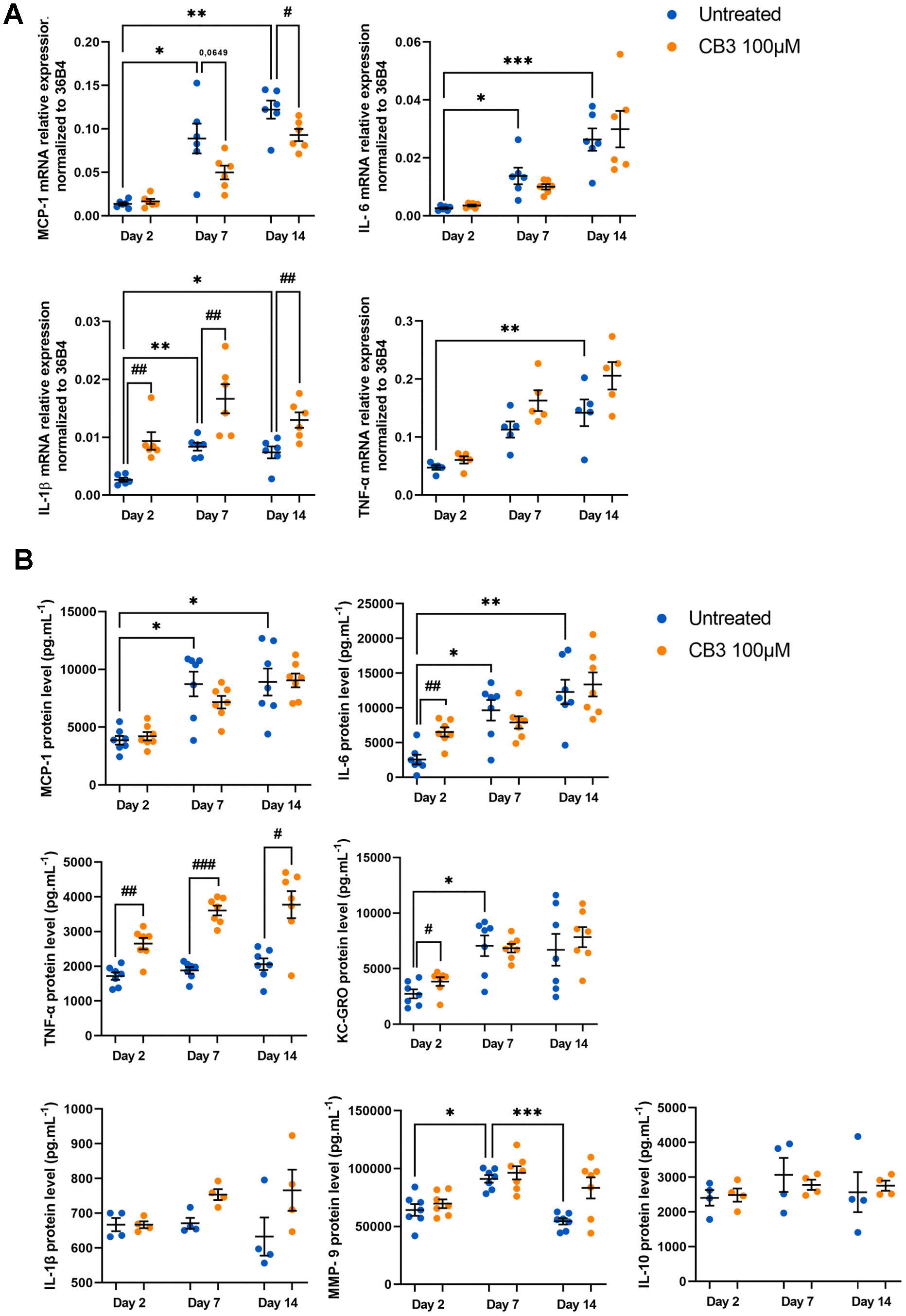

Figure 7. CB3 effects on inflammatory phenotype in aged macrophages in vitro. Macrophages are chronically treated with 100uM CB3 for up to 14 days. (A) RT-qPCR analysis for SASP markers MCP-1, IL-6, IL-1b and TNF-a transcripts normalized to 36B4 (n=7). (B) MCP-1, IL-1β, IL-6, TNF-α, KC-GRO, IL-10 and MMP-9 protein levels assessed by MSD multiplex on conditioned media harvested 24h after serum derivation (n=6). Error bars represent the mean ± SEM. p-values were obtained comparing groups overtime using a non-parametric one-way ANOVA analysis (Kruskal-Wallis analysis followed by Dunnett’s multiple comparison test; *p<0.05; **p<0.01; ***p<0.001) or using a non-parametric t-test (Mann-Whitney) to analyze the significance between groups treated or not treated with CB3 (#p<0.05; ##p<0,01, ###p<0.001).
