Circ_0006476 modulates macrophage apoptosis through the miR-3074-5p/DLL4 axis: implications for Notch signalling pathway regulation in cardiovascular disease

Back to articleFigure 2(2 of 8)

100%

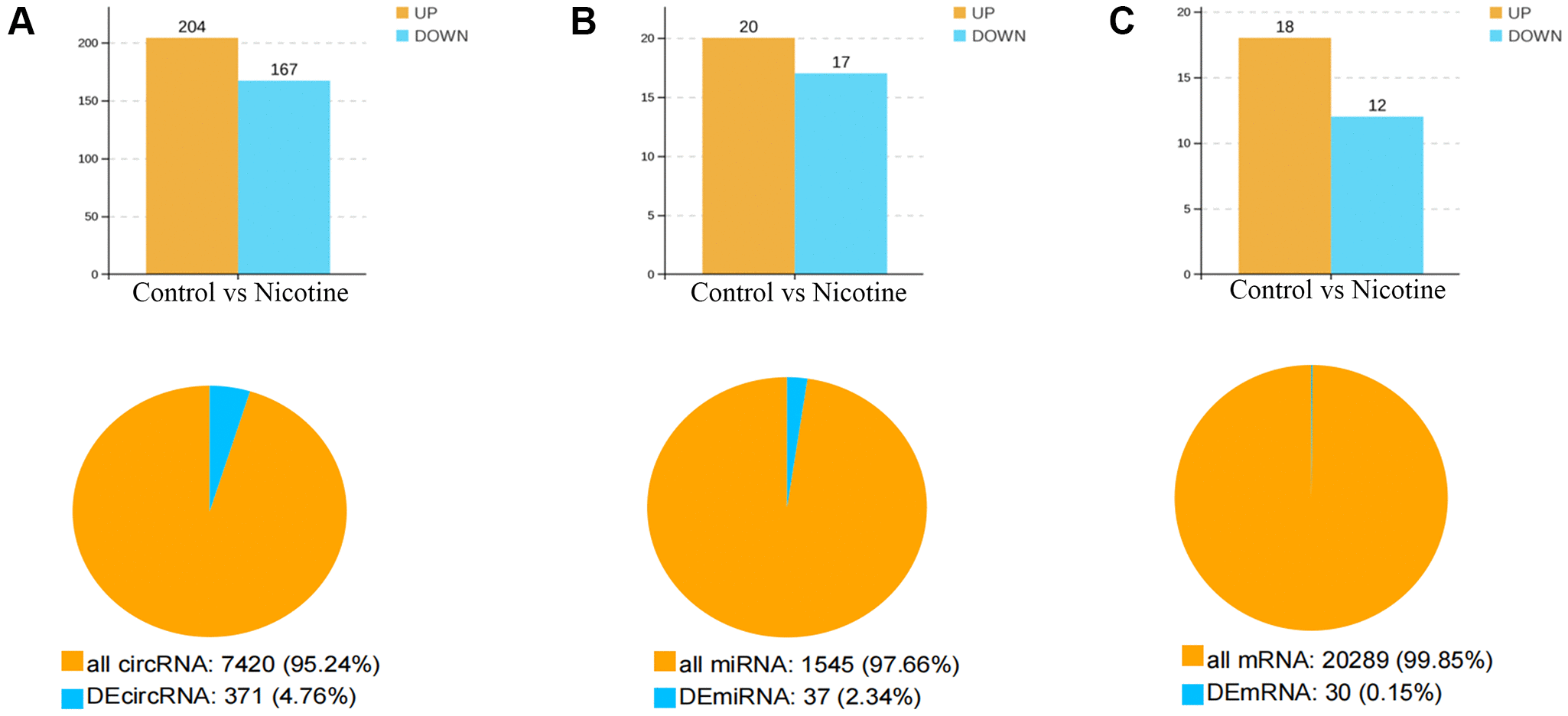

Figure 2.Number and expression of differentially expressed genes. (A) Quantification and expression of DEcircRNAs (|FC|>2, P < 0.05). (B) Quantification and expression of DEmiRNAs (|FC|>1.5, P < 0.05). (C) Quantity and expression of DEmRNAs (|FC|>1.5, P < 0.05).
