Research Paper Volume 16, Issue 3 pp 2617—2637

A study on the role of Taxifolin in inducing apoptosis of pancreatic cancer cells: screening results using weighted gene co-expression network analysis

class="figure-viewer-img"

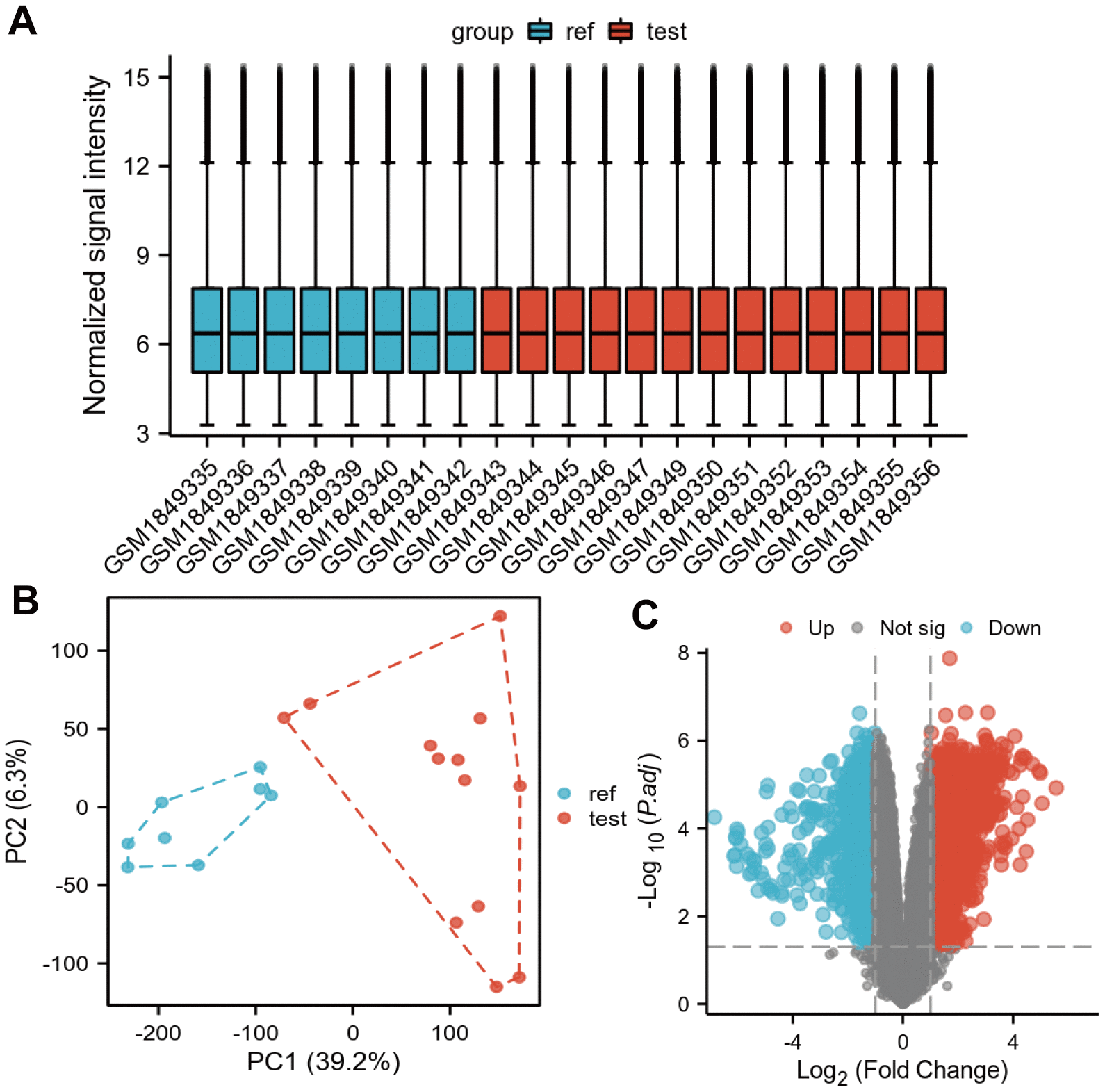

Figure 1. Differentially expressed genes identified in the GSE71989 dataset. (A) Box plot showing the correction across samples, (B) PCA plot showing the differences across samples after downscaling the high latitude data, and (C) volcano plot showing the genes that showed differential expression in GSE71989. Up-regulated genes are indicated by red nodes and down-regulated genes are indicated by green nodes.
