Research Paper Volume 15, Issue 24 pp 15161—15182
Reveal the correlation between hub hypoxia/immune-related genes and immunity and diagnosis, and the effect of SAP30 on cell apoptosis, ROS and MDA production in cerebral ischemic stroke

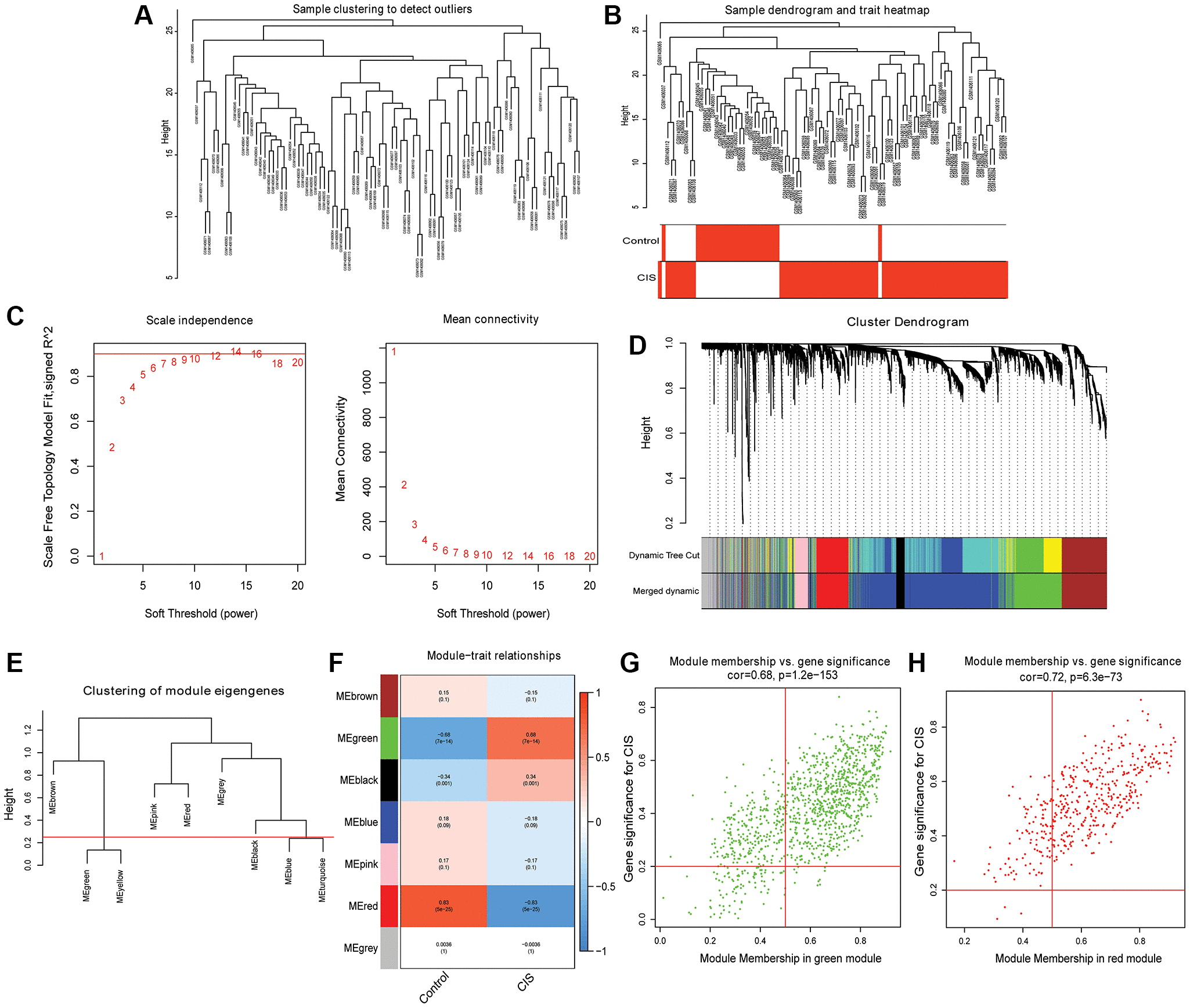

Figure 2. Identification of hub modules and candidate hub mRNAs based on WGCNA. (A) Sample clustering dendrogram to detect outliers; (B) Sample clustering dendrogram and trait heatmap; (C) Scale-free fitting index and average connectivity for different soft threshold power (β); (D) mRNA is divided into different modules by hierarchical clustering, and different colors represent different modules; (E) Modules with dissimilarity <25% are merged; (F) Heatmap of correlation between ME and CIS; (G) Scatter plot of mRNAs in green module; (H) Scatter plot of mRNAs in red module.
