Figure 6 — Conjoint research of WGCNA, single-cell transcriptome and structural biology reveals the potential targets of IDD development and treatment and JAK3 involvement

Research Paper|Volume 15, Issue 24|pp. 14764–14790

Conjoint research of WGCNA, single-cell transcriptome and structural biology reveals the potential targets of IDD development and treatment and JAK3 involvement

Back to articleFigure 6(6 of 10)

100%

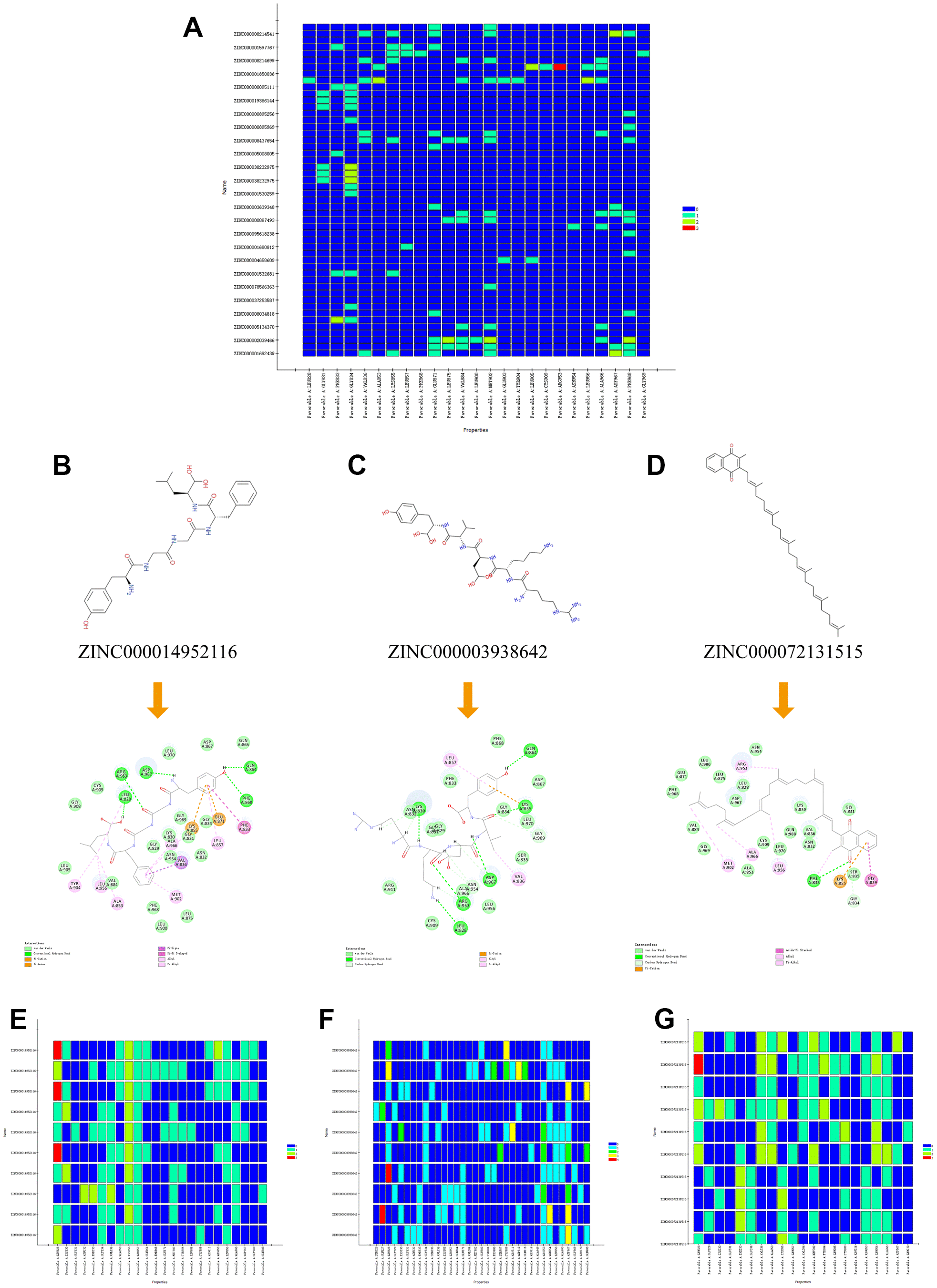

Figure 6.(A) Residues interaction roles heatmap based on the top 50 compounds from Libdock module. (B–D) Detailed intermolecular interactions between ZINC000014952116-JAK3, ZINC000003938642-JAK3 and ZINC000072131515-JAK3, respectively. (E–G) Residues interaction roles heatmap of ZINC000014952116-JAK3, ZINC000003938642-JAK3, and ZINC000072131515-JAK3 complex.
