Research Paper Volume 15, Issue 6 pp 2170—2188
Expression profile and prognostic values of GATA family members in kidney renal clear cell carcinoma

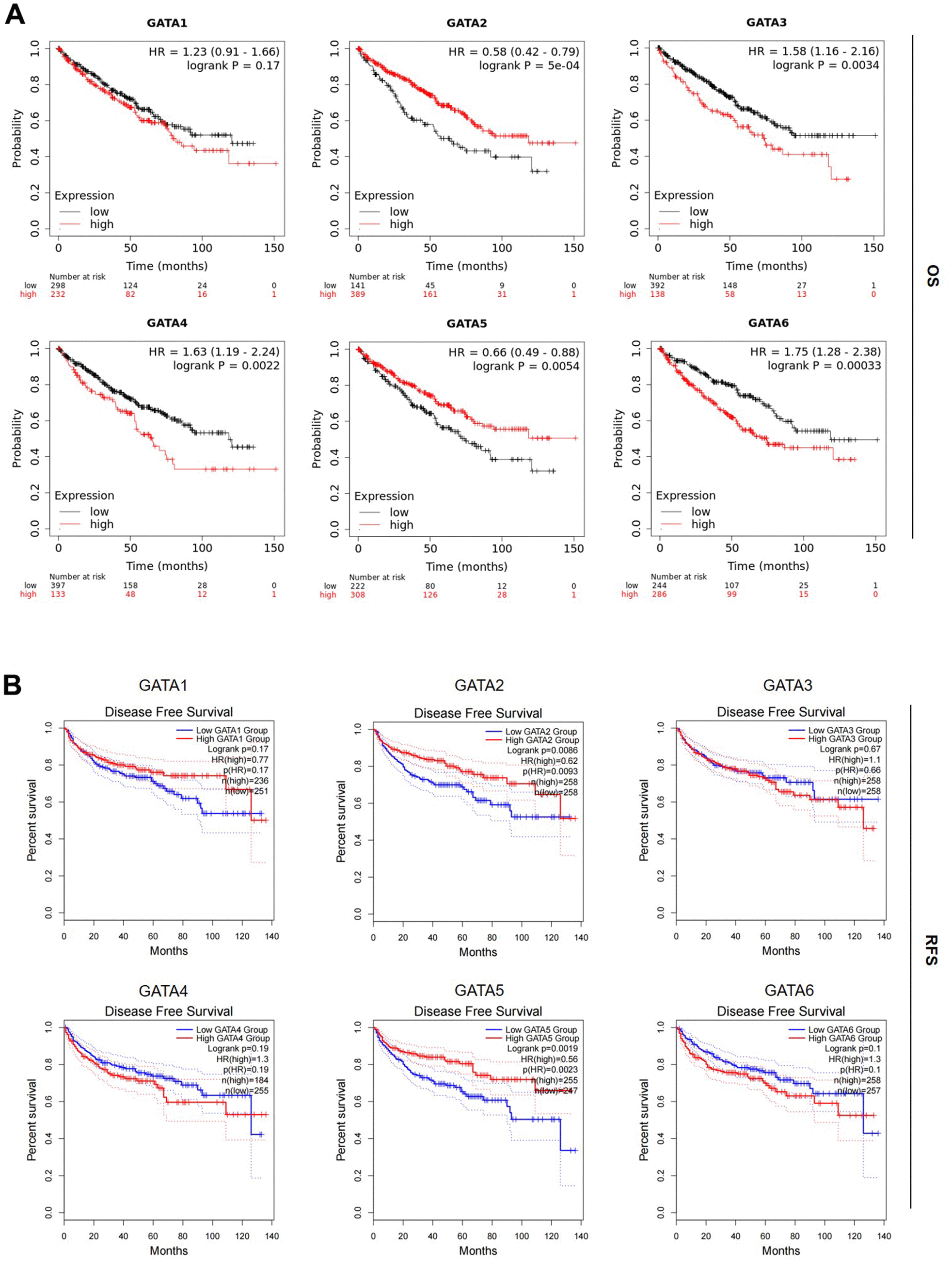

Figure 4. Prognostic value of the mRNA expression levels of the GATA family members in patients with KIRC. (A, B) The OS and RFS of GATA1–6 in patients with KIRC were analyzed by the Kaplan–Meier plotter and GEPIA2, respectively. GEPIA2, Gene Expression Profiling Interactive Analysis 2; KIRC, kidney renal clear cell carcinoma; OS, overall survival; RFS, recurrence-free survival.
