Figure 7 — Identification of m6A regulator-mediated RNA methylation modification patterns and key immune-related genes involved in atrial fibrillation

Research Paper|Volume 15, Issue 5|pp. 1371–1393

Identification of m6A regulator-mediated RNA methylation modification patterns and key immune-related genes involved in atrial fibrillation

Back to articleFigure 7(7 of 10)

100%

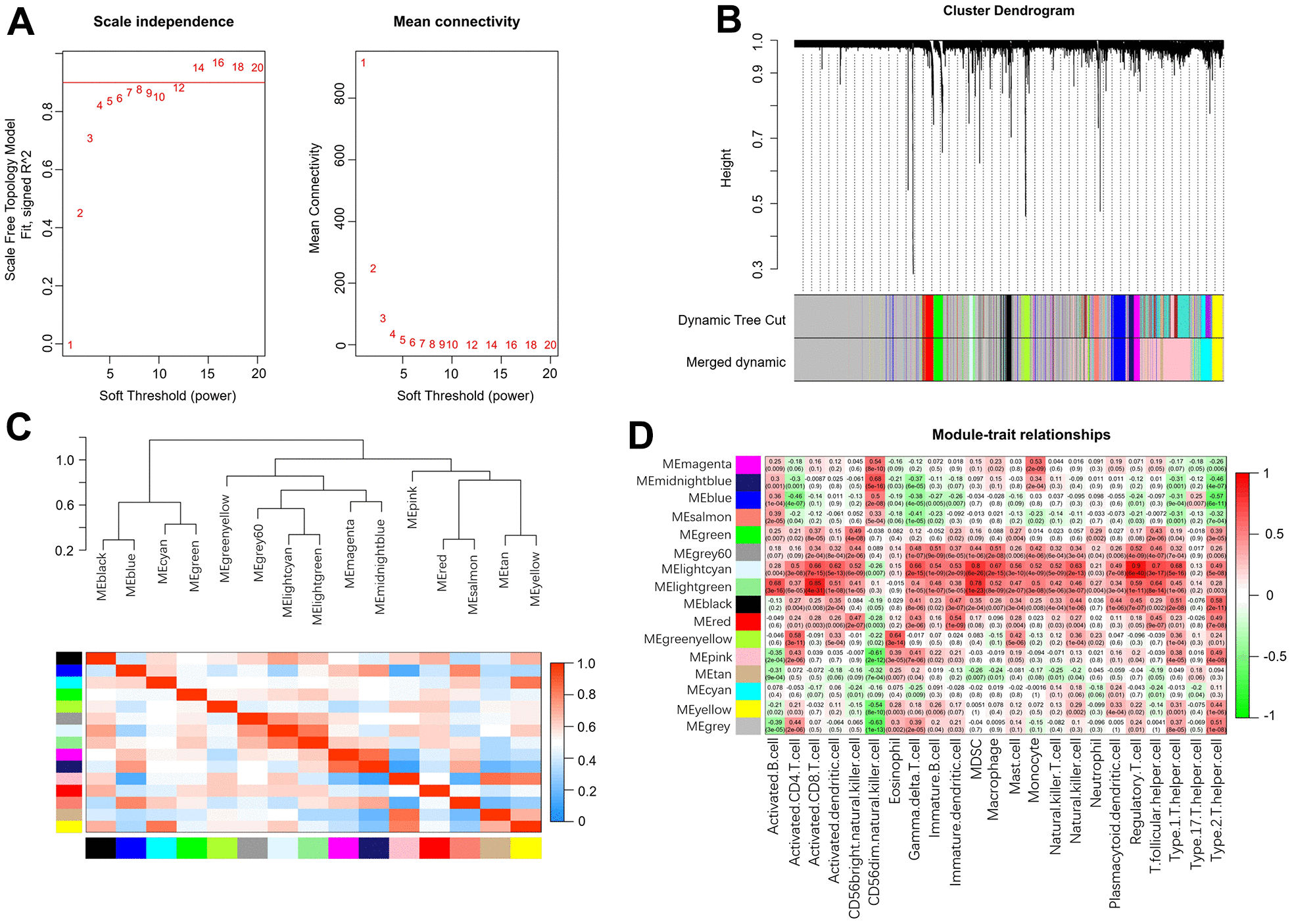

Figure 7.Weighted gene coexpression network analysis. (A) Analysis of network topology for various soft-thresholding powers. (B) Clustering dendrogram of genes. (C) Relationship among all the modules. (D) Associations between modules and infiltrating immune cells.
