Research Paper Volume 13, Issue 14 pp 18669—18688

Plasma metabolites changes in male heroin addicts during acute and protracted withdrawal

class="figure-viewer-img"

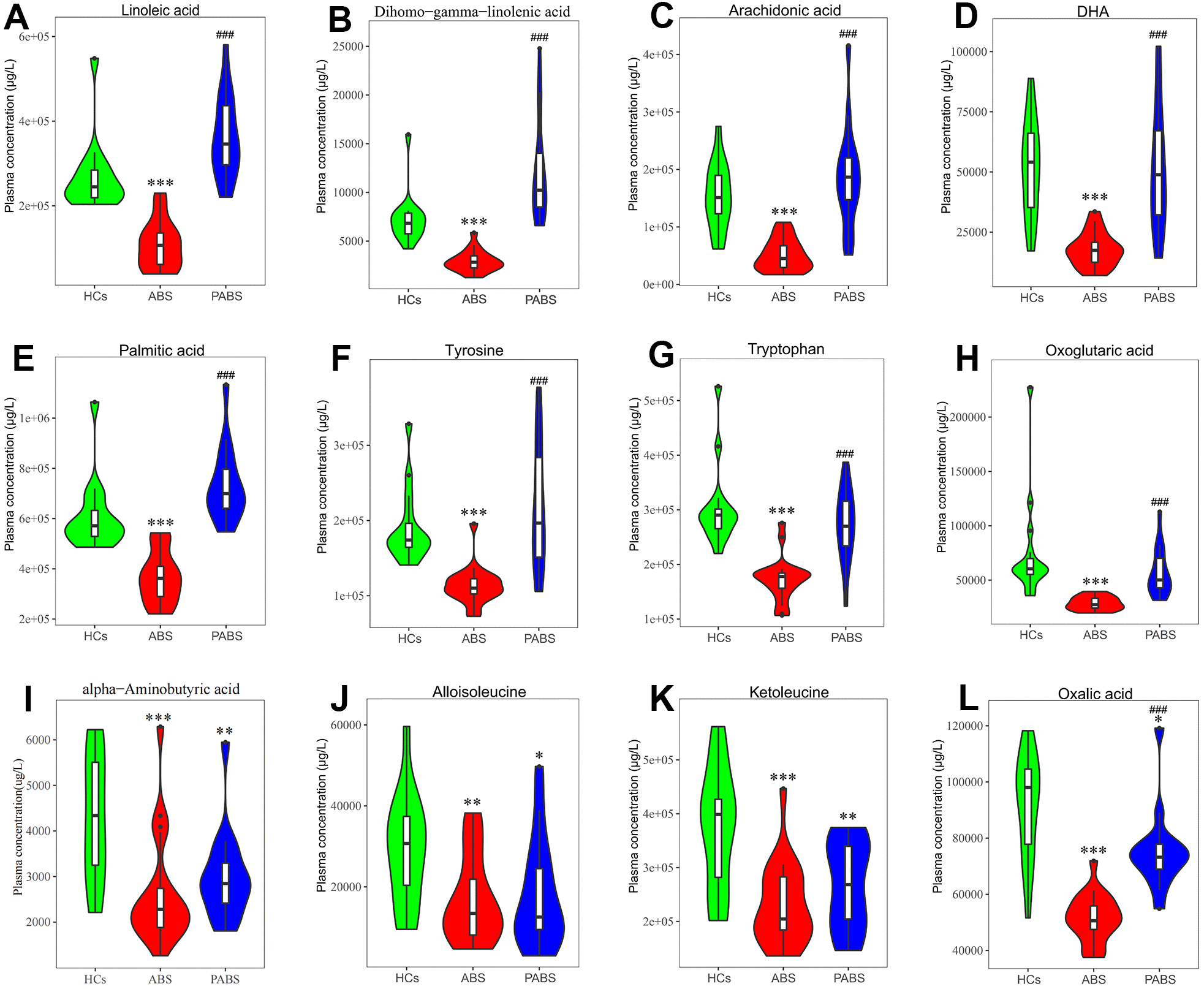

Figure 4. Concentrations of plasma metabolites at 3 different stages. (AD) omega-6 and omega-3 polyunsaturated fatty acids. (EH) representative fatty acid, amino acids and organic acid. (IL) metabolites that have not recovered after long-term heroin withdrawal (*P < 0.05, **P < 0.01, ***P < 0.001, compared with healthy controls. #P < 0.05, ##P < 0.01, ###P < 0.001, compared with acute heroin withdrawal). Note: dihomo-gamma-linolenic acid is the polyunsaturated fatty acid with the most significant difference, tyrosine is the neurotransmitter precursor with the most significant difference, and oxoglutaric acid is the organic acid with the most significant difference in energy metabolism.
