Figure 6 — CircSPIDR acts as a tumour suppressor in cervical adenocarcinoma by sponging miR-431-5p and regulating SORCS1 and CUBN expression

Research Paper|Volume 13, Issue 14|pp. 18340–18359

CircSPIDR acts as a tumour suppressor in cervical adenocarcinoma by sponging miR-431-5p and regulating SORCS1 and CUBN expression

Back to articleFigure 6(6 of 8)

100%

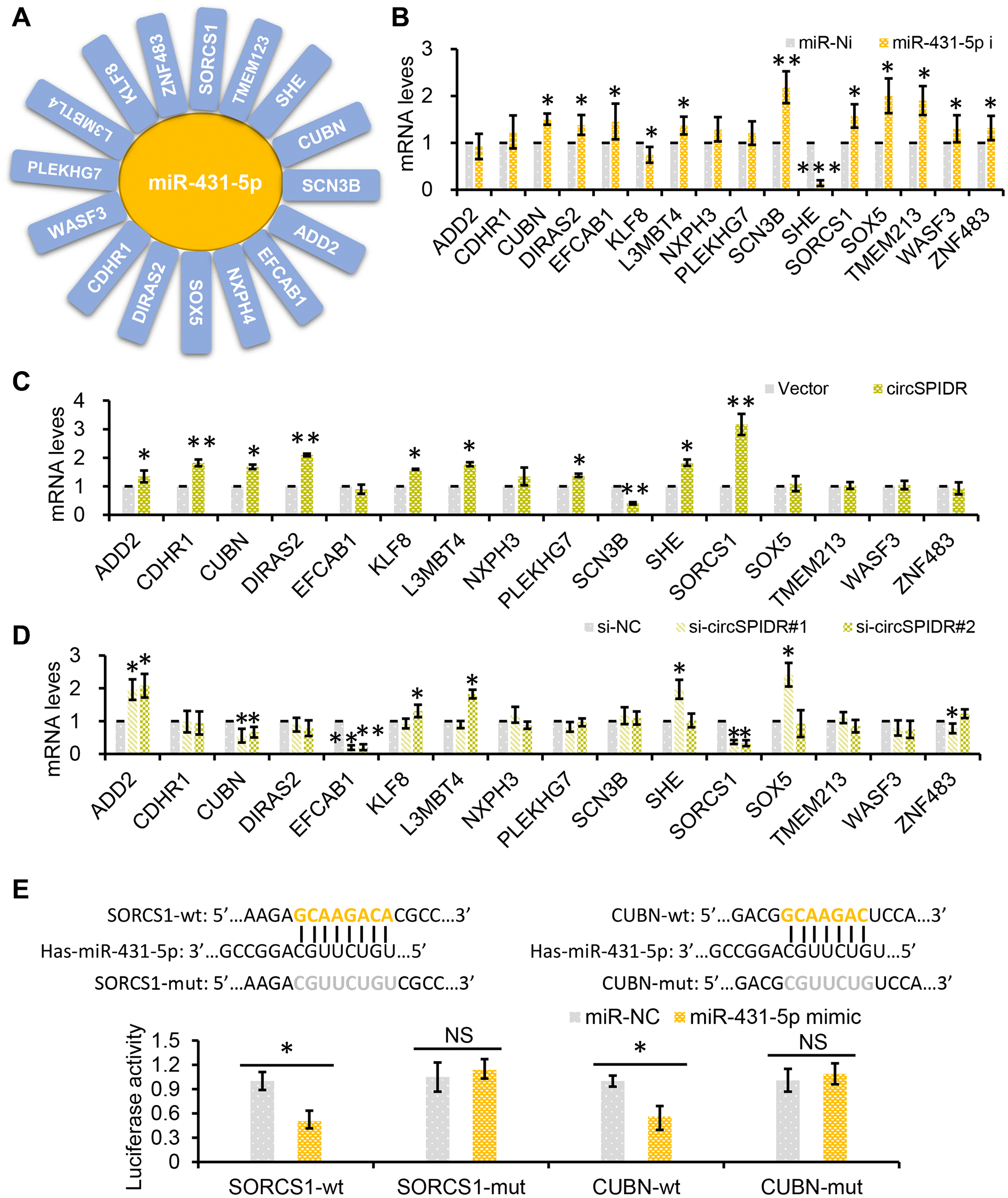

Figure 6.SORCS1 and CUBN are the target genes of miR-431-5p and circSPIDR. (A) miR-431-5p-target gene regulatory network. (B) qRT-PCR analysis of candidate target gene expression in CADC cells transfected with miR-431-5p inhibitors. (C, D) qRT-PCR analysis of candidate target gene expression in CADC cells transfected with the circSPIDR expression vector (C) or siRNAs against circSPIDR (D). (E) Luciferase activity of the 3′UTRs of SORCS1 and the CUBN in 293T cells co-transfected with miR-431-5p mimics. NS, not significant; ^*P < 0.05; ^**P < 0.01.
