Figure 4 — Activation of GPR30 with G1 inhibits oscillatory shear stress-induced adhesion of THP-1 monocytes to HAECs by increasing KLF2

Research Paper|Volume 13, Issue 8|pp. 11942–11953

Activation of GPR30 with G1 inhibits oscillatory shear stress-induced adhesion of THP-1 monocytes to HAECs by increasing KLF2

Back to articleFigure 4(4 of 8)

100%

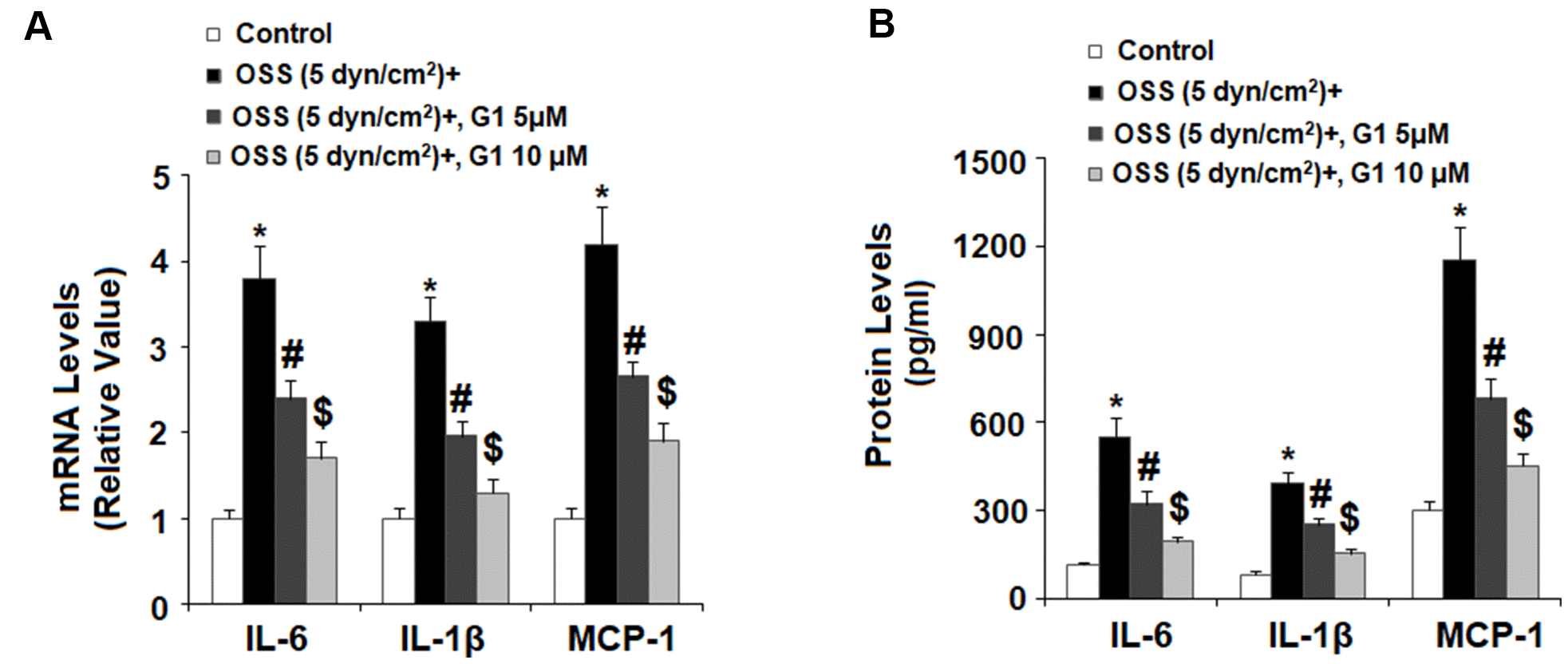

Figure 4.Agonism of GPR30 using its specific agonist G1 suppressed oscillatory shear stress (OSS)-induced expression and secretion of pro-inflammatory cytokines IL-6, IL-1β, and MCP-1 in human aortic endothelial cells (HAECs). HAECs were exposed with OSS (5 dyn/cm²) in the presence or absence of 5, 10 μM G1 for 24 h. (A). Expression of IL-6, IL-1β, and MCP-1 at the mRNA level was determined by real time PCR analysis; (B). Secretion of IL-6, IL-1β, and MCP-1 at the protein level was determined by ELISA (*, #, $, P<0.01 vs. previous column group, N=5).
