Research Paper Volume 13, Issue 7 pp 10724—10748

A novel focal adhesion related gene signature for prognostic prediction in hepatocellular carcinoma

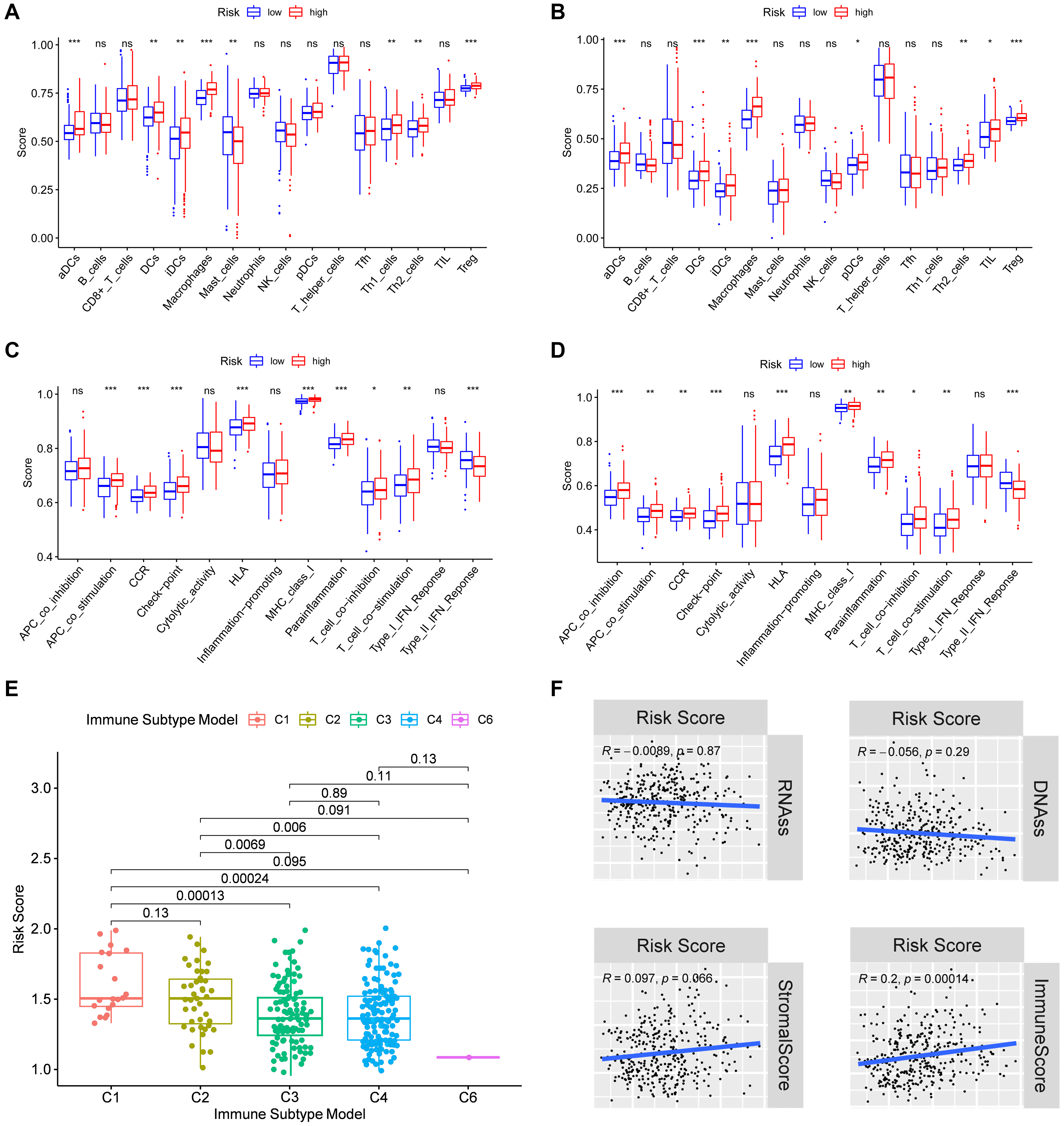

Figure 6. Immune status between different risk groups and the association of risk score with the tumor microenvironment. TCGA cohort (A, C), ICGC cohort (B, D). (A, B) The scores of 16 immune cells. (C, D) The boxplots showing the 13 immune-related functions. (E) Comparison of the risk scores between different immune infiltrate subtypes. (F) The relationship of risk score with RNAss, DNAss, Stromal Score and Immune Score. P values are showed as: ns, not significant; *P < 0.05; **P < 0.01; ***P < 0.001.
