Figure 7 — Lung cancer-associated mesenchymal stem cells promote tumor metastasis and tumorigenesis by induction of epithelial–mesenchymal transition and stem-like reprogram

Research Paper|Volume 13, Issue 7|pp. 9780–9800

Lung cancer-associated mesenchymal stem cells promote tumor metastasis and tumorigenesis by induction of epithelial–mesenchymal transition and stem-like reprogram

Back to articleFigure 7(7 of 7)

100%

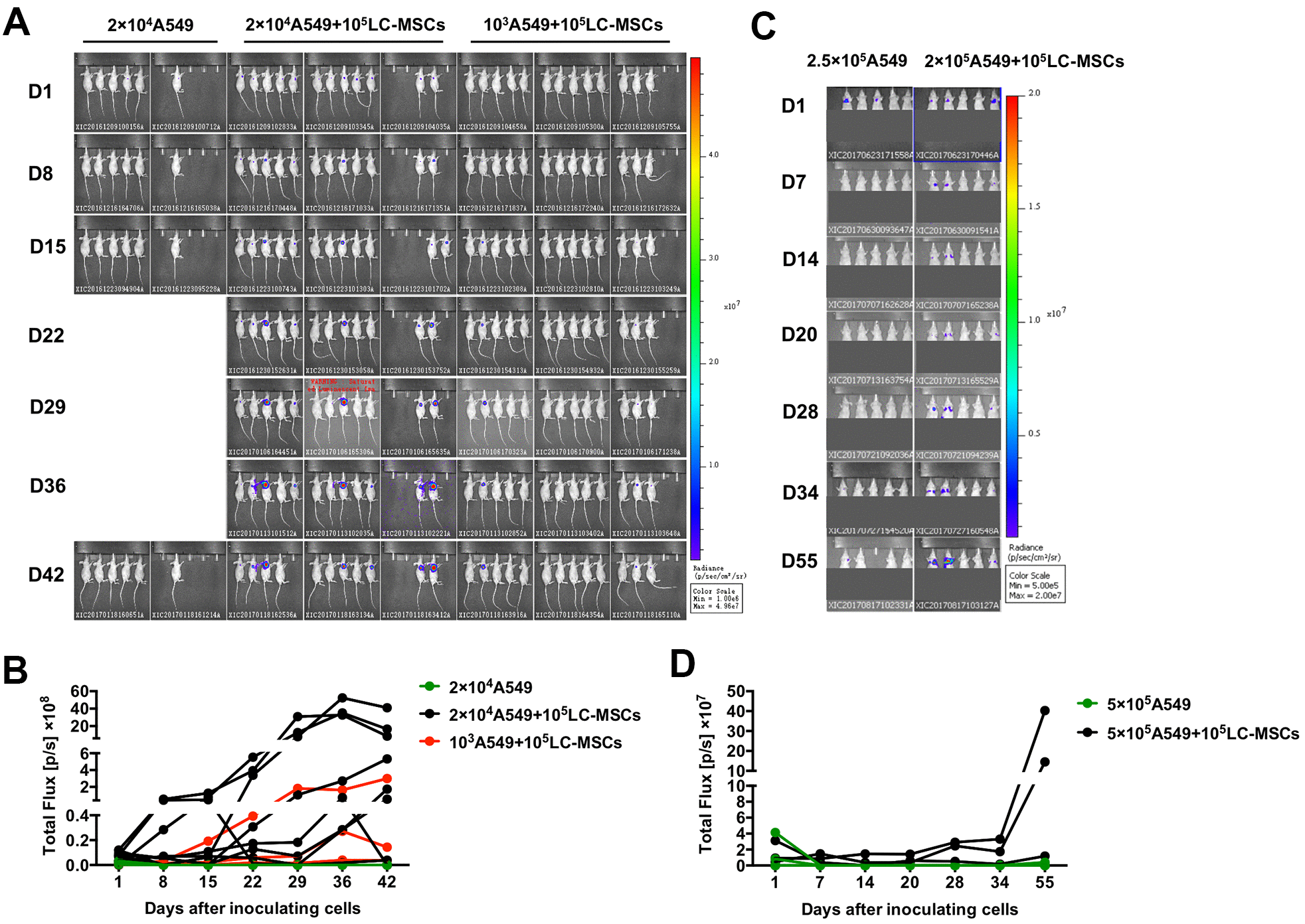

Figure 7.Increased tumorigenesis and metastasis-initiating ability by LC-MSCs. (A, B) Low number of A549.Luc cells and LC-MSCs were co-implanted subcutaneously into female Balb/c nude mice at different cell ratio. Bioluminescence images (A) and total bioluminescence of tumors (B) at the indicated time. (C, D) A549.Luc cells and LC-MSCs were mixed well and injected intravenously into female Balb/c nude mice. Bioluminescence images (A) and total bioluminescence of tumors (D) at the indicated time.
