Low expression of NLRP1 is associated with a poor prognosis and immune infiltration in lung adenocarcinoma patients

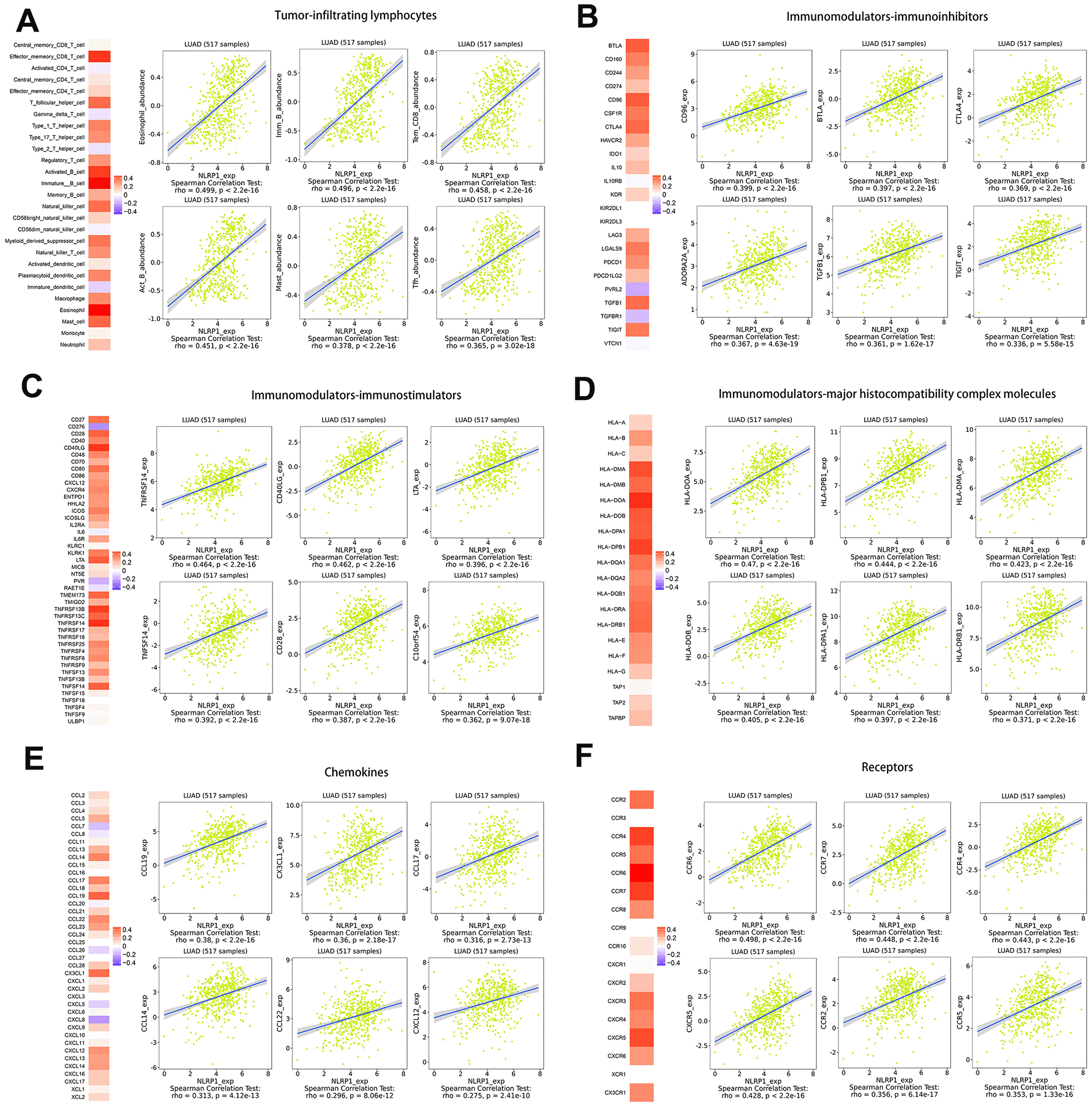

Figure 6. Spearman rank correlation analysis of NLRP1 with lymphocytes, immunomodulators and chemokines (TISIDB). (A) Relations between the abundance of tumor-infiltrating lymphocytes (TILs) and NLRP1 expression (plus the six TILs with the highest correlations). (B–D) Relations between three kinds of immunomodulators and NLRP1 expression (plus the six immunomodulators with the highest correlations). (E, F) Relations between chemokines (or receptors) and NLRP1 expression (plus the six chemokines (or receptors) with the highest correlations).
