Repetitive transcranial magnetic stimulation of the cerebellum improves ataxia and cerebello-fronto plasticity in multiple system atrophy: a randomized, double-blind, sham-controlled and TMS-EEG study

Back to articleFigure 2(2 of 7)

100%

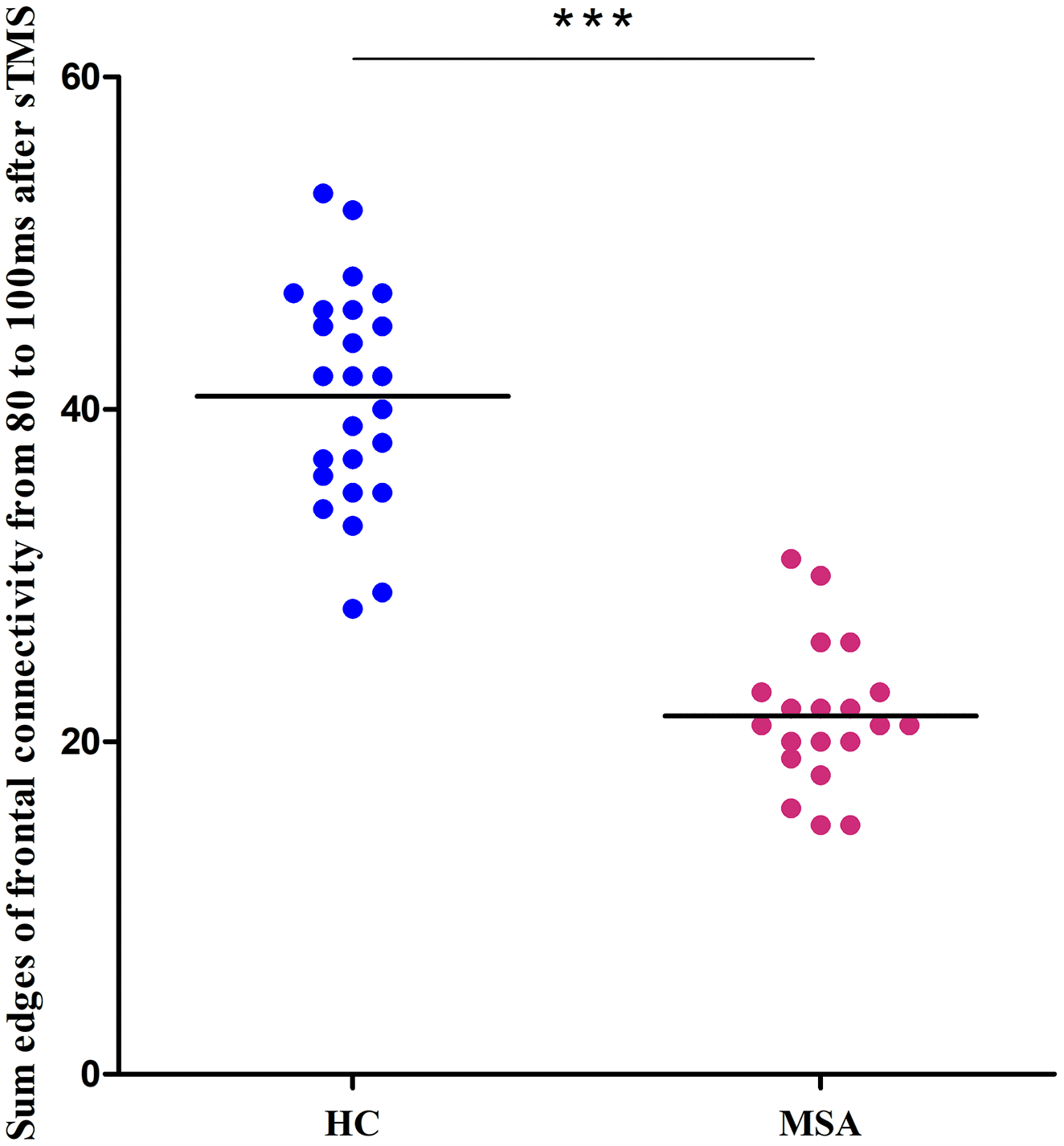

Figure 2.Differences between healthy controls (blue) and MSA patients (red) in the sum of the edges of frontal connectivity from 80 to 100 ms after sTMS in Experiment 1. ***P<0.001. sTMS: single-pulse transcranial magnetic stimulation.
