Figure 9 — in vivo cellular evidence of autophagic associated spermiophagy within the principal cells during sperm storage in epididymis of the turtle

Research Paper|Volume 12, Issue 10|pp. 8987–8999

in vivo cellular evidence of autophagic associated spermiophagy within the principal cells during sperm storage in epididymis of the turtle

Back to articleFigure 9(9 of 9)

100%

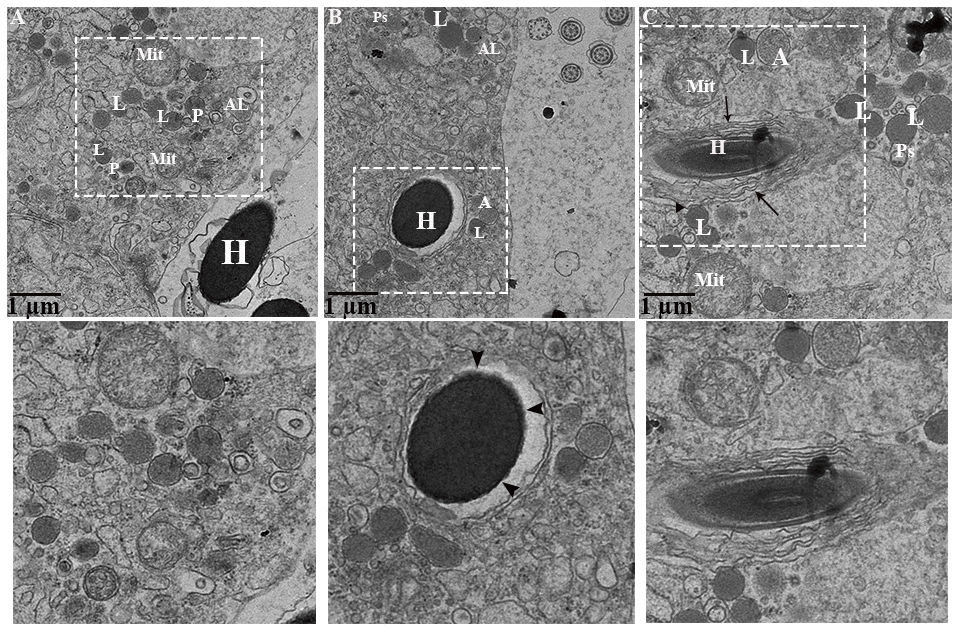

Figure 9.Ultrastructure: Lysosomal and autophagic activity around spermatozoa. A: autophagosome; Al: autolysosome; G: Golgi complex; H: Head of spermatozoa; L: lysosome, Mit: mitochondria; P: phagolysosome. Rectangular area showed enlarged area. Arrow: numerous concentric layers around spermatozoa, Sharp arrow: degenerate segment of spermatozoa, Arrowhead: lysosomal attachment with spermatozoa. Scale bar: (A–C) 1 μm.
