Figure 6 — Genome-wide DNA copy number profiling and bioinformatics analysis of ovarian cancer reveals key genes and pathways associated with distinct invasive/migratory capabilities

Research Paper|Volume 12, Issue 1|pp. 178–192

Genome-wide DNA copy number profiling and bioinformatics analysis of ovarian cancer reveals key genes and pathways associated with distinct invasive/migratory capabilities

Back to articleFigure 6(6 of 6)

100%

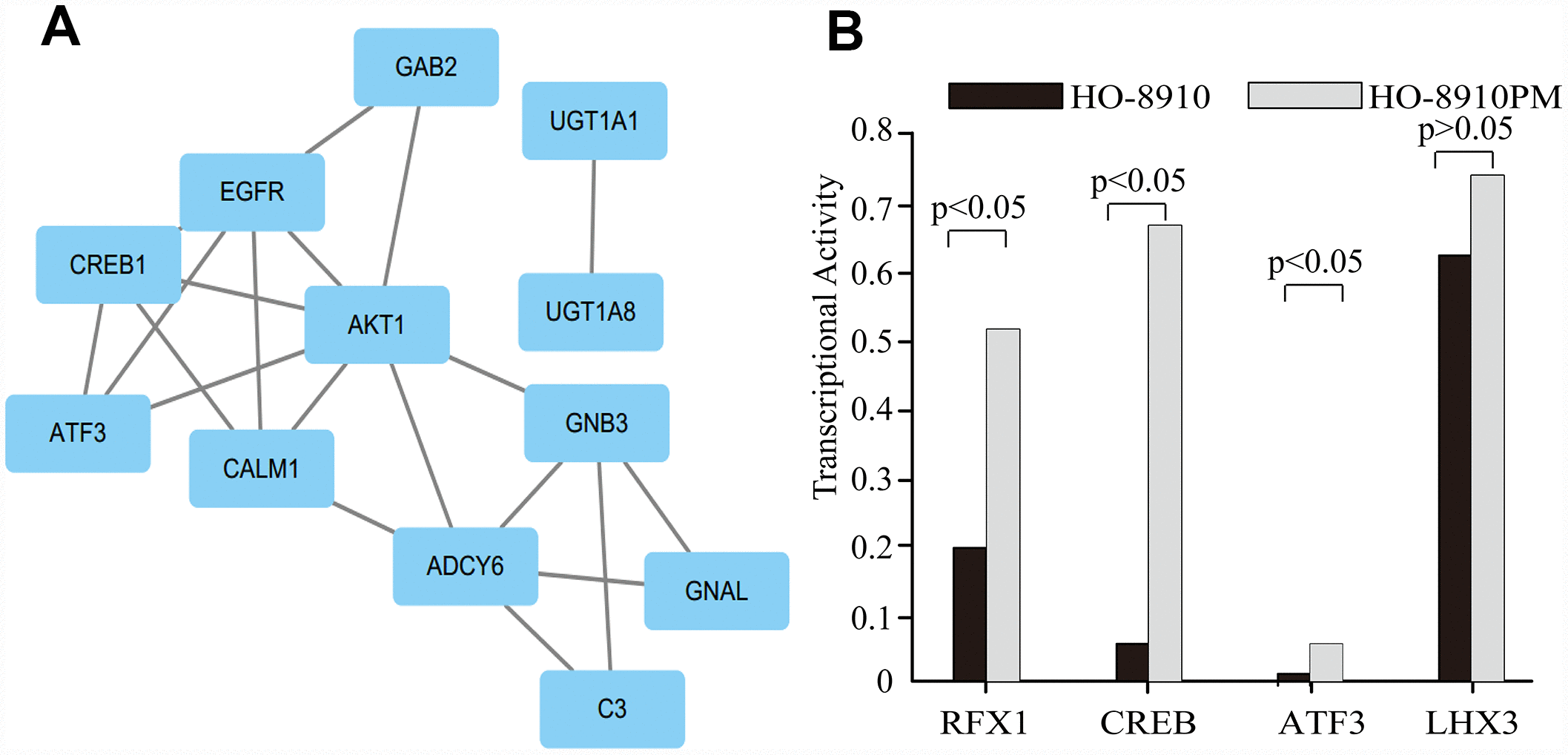

Figure 6.The target genes and their predicted TFs. (A) The clusters identified in the PPI network containing the target genes and their predicted TFs. (B) The transcriptional activities of four TFs.
