Research Paper Volume 10, Issue 6 pp 1257—1267

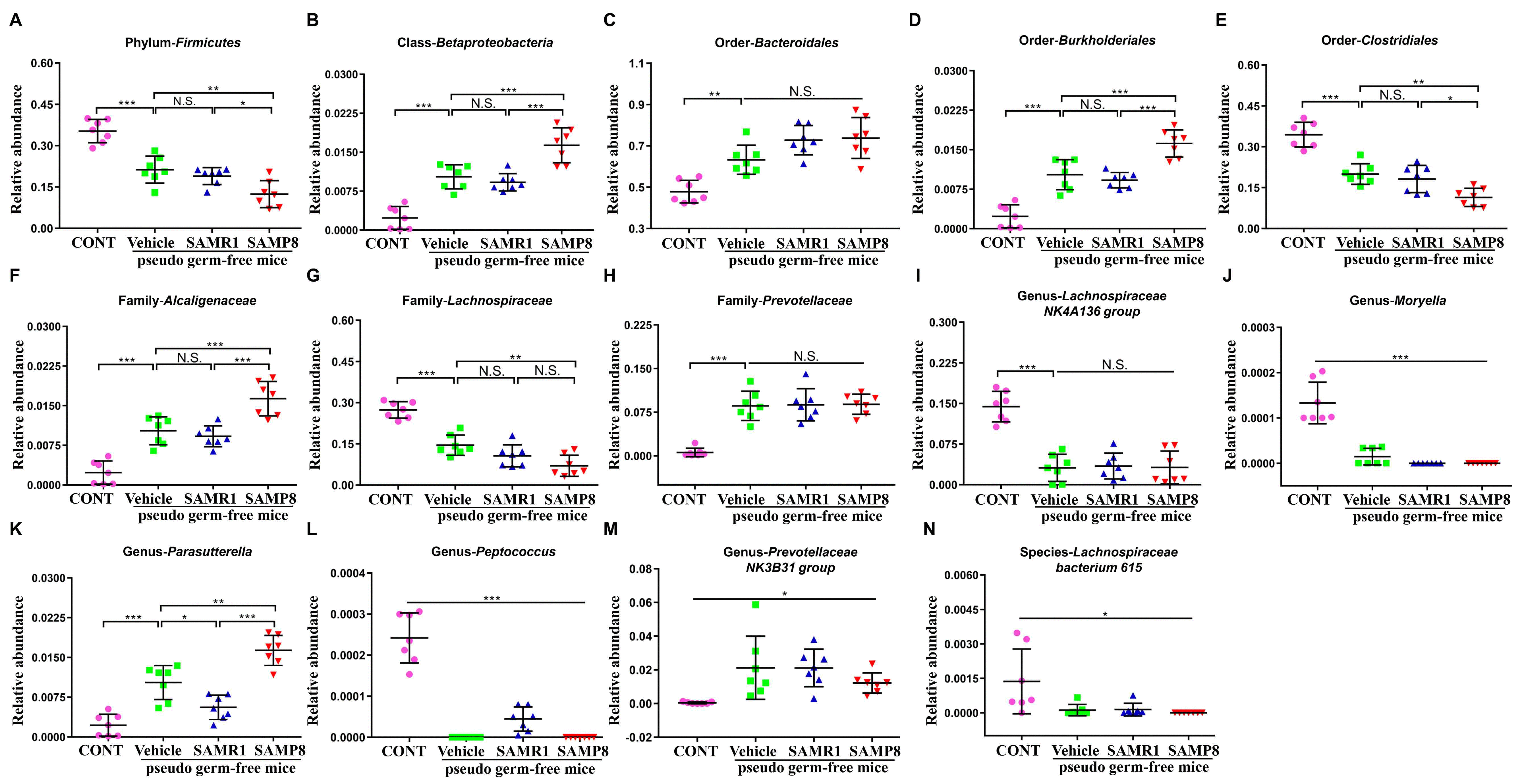

Figure 6. Effects of fecal microbiota transplant on levels of gut microbiota in pseudo germ-free mice. (A) Phylum Firmicutes (One-way ANOVA; F_3,24 = 34.61, P < 0.001). (B) Class Betaproteobacteria (One-way ANOVA; F_3,24 = 37.98, P < 0.001). (C) Order Bacteroidales (One-way ANOVA; F_3,24 = 17.77, P < 0.001). (D) Order Burkholderiales (One-way ANOVA; F_3,24 = 41.43, P < 0.001). (E) Order Clostridiales (One-way ANOVA; F_3,24 = 36.92, P < 0.001). (F) Family Alcaligenaceae (One-way ANOVA; F_3,24 = 34.95, P < 0.001). (G) Family Lachnospiraceae (One-way ANOVA; F_3,24 = 40.75, P < 0.001). (H) Family Prevotellaceae (One-way ANOVA; F_3,24 = 26.69, P < 0.001). (I) Genus Lachnospiraceae NK4A136 group (One-way ANOVA; F_3,24 = 30.02, P < 0.001). (J) Genus Moryella (Fisher’s exact test; P < 0.001). (K) Genus Parasutterella (One-way ANOVA; F_3,24 = 37.64, P < 0.001). (L) Genus Peptococcus (Fisher’s exact test; P < 0.001). (M) Genus Prevotellaceae NK3B31 group (Fisher’s exact test; P < 0.05). (N) Species Lachnospiraceae bacterium 615 (Fisher’s exact test; P < 0.05). ANOVA: analysis of variance
