Medium-chain chlorinated paraffins (MCCPs) induce renal cell aging and ferroptosis

Antibodies and reagents

Protease phosphatase inhibitor mixture, BCA protein concentration assay kit, DCFH-DA reactive oxygen species assay kit and RIPA lysate were purchased from Beyotime Biotechnology Company (Shanghai, China). DMEM cell culture, FBS (fetal bovine serum), BSA (bovine serum albumin) and ECL kit were purchased from Themo Fisher Scientific company (Shanghai, China). p21 polyclonal antibody (Cat No. PA1-4185) was purchased from Themo Fisher Scientific company (Shanghai, China). p21 (Cat No. 28248-1-AP), p16 (Cat No. 10883-1-AP) and GPX4 (Cat No. 67763-1-Ig) were from Proteintech company (Wuhan, China). Anti-p53 (Cat No. 60283-2-Ig), Mouse IL-6 ELISA Kit (Cat No. KE10007), TNF Alpha Monoclonal antibody (Cat No. 60291-1-Ig), Rat IL-1 beta ELISA Kit (Cat No: KE20021) and HMGB1 Polyclonal Antibody (Cat No. 10829-1-AP) were from Proteintech company (Wuhan, China). Ferrostatin-1 (Fer-1) and DFO (Deferoxamine) were purchased from MCE (Shanghai, China). Anti-Ferritin Heavy Chain (FTH) antibody (sc-376594) and anti-NCOA4 (sc-373739) were from Santa Cruz Biotechnology company (USA). x-CT polyclonal antibody (ab307601) was from Abcam (Shanghai, China). Malondialdehyde (MDA) assay kit and GSH assay kit were purchased from Nanjing Jiancheng Research Institute (China). The TMRE mitochondrial membrane potential assay kit was purchased from Beyotime company (Shanghai, China). The Fe²⁺ detection probe (FerroOrange) was purchased from Dojindo Chemical company (Kumamoto, Japan). Ferrous ion content assay kit (Cat No. BC5415, purchased from Solarbio Biotechnology, Beijing, China) was used to detect the levels of ferrous ions in the tissue.

NRK 52 cell and HEK293 cell culture

The human HEK293 and Rat NRK cells were from the National Collection of Authenticated Cell Cultures (Shanghai, China). HEK293 and Rat NRK cells were cultured in Dulbecco’s Modified Eagle’s medium (DMEM, Gibco, USA) with 10% FBS.

Cell senescence analysis by Sa-β-galactosidase staining

Kidney cells (NRK-52 cell and human HEK293) were inoculated into cell culture plates. When kidney cells grew to 75% confluence, different concentrations of MCCP were added (the selection of the MCCP concentration currently used is based on previous reports in the literature [12]. After incubation for 24 h, Sa-β-gal staining solution was added. After incubation for 3 h, cell samples were examined using a laser confocal microscope (FV3000).

Cell proliferation analysis

Kidney cells (1 × 10⁴) were inoculated into 96-well culture plates. Cells were cultured for 24 h. Cells were then stimulated with MCCPs for 24 h. CCK-8 (10 μl per well) solution was added to each well and the cells were placed in a CO₂ incubator to continue the incubation for 4 h. The absorbance of the cell samples was detected using a microplate reader (wavelength 450 nm).

Western blot analysis

After treatment with MCCPs, cells were washed three times using PBS buffer and then cells were lysed. Cell lysates were collected by using a cell scraper and cell lysates were transferred to 1.5 ml EP tubes and centrifuged at 4°C for 10 min (12000 rpm). The supernatant was collected and the BCA kit was used to assay the concentration of proteins according to the kit instructions. Samples were electrophoresed and proteins were transferred to PVDF membranes. After washing, the PVDF membrane was placed in 5% BSA solution for 60 min. Primary antibody was added and incubated for 12 h at 4°C. The primary antibody was added to the PVDF membranes and incubated for 12 h at 4°C. After washing, secondary antibody was added and then the PVDF membrane was exposed using ECL luminescent solution.

Intracellular reactive oxygen species (ROS) assay

Kidney cells were inoculated with 6-well cell culture plates. Cells were cultured for 24 hours. Rat NRK cells and HEK293 were challenged with MCCPs for indicated time points. After washing, the cells were incubated with ROS fluorescent probe (DCFH-DA, 10 μM/L). After incubation for 0.5 h, the cells were examined using a laser confocal microscope (FV3000).

Indirect immunofluorescence

NRK-52 cells and HEK293 cells were inoculated in cell culture plates (1 × 10⁴ cells per well). Cells were incubated for 12 h, after which, PBS buffer was used to wash the cells twice (3 min each time). Cells were fixed using 4% paraformaldehyde for 0.5 h. Cells were then blocked using 1% BSA. Cells were washed using PBS buffer for 3 times (5 min each). Corresponding primary antibodies were added and incubated at 4°C for 16 h. After three washes, fluorescently labeled secondary antibodies were added and incubated at room temperature away from light for 60 min. After washing with PBS, DAPI staining solution was added dropwise to stain the nuclei of the cells. The cells were then incubated at room temperature away from light for 15 min. After three washes, the cells were visualized using a laser confocal microscope (FV3000).

MitoSOX™ staining

Rat NRK-52 cells and HEK293 cells (1.5 × 10⁵/well) were inoculated in 6-well plates. When the cells grew to 80% to 85% fusion, the cells were stimulated with MCCPs and placed in an incubator at 37°C in 5% CO₂ for 6 h. After washing, MitoSOX™ probe was added (final concentration of 5 μM) sequentially to the 6-well plates. Cells were placed in an incubator (37°C, 5% CO₂) for 20 min. After washing, cell samples were detected (excitation wavelength 510 nm, emission wavelength 580 nm).

Detection of iron ion level

Kidney cells were inoculated in 12-well cell culture plates (containing cell slides). When the adherent cells were fused to about 70%, MCCP was used to stimulate the cells for the indicated time points. The cell culture medium was discarded and PBS was used to rinse the cells. Ferro-Orange working solution at a concentration of 1 μmol/l was added and incubated at 37°C in a 5% CO₂ incubator. Cell samples were examined under a laser confocal microscope.

Intracellular MDA/GSH assay

Kidney cells (NRK-52 cells and HEK293 cells) were inoculated in cell culture plates. When the cells were fused to 80% confluence. The NRK-52 cells and HEK293 cells were treated with MCCP for the indicated time points. Cells were collected into 1.5 mL centrifuge tubes. Cells were subjected to fragmentation using an ultrasonic fragmenter. Cell suspension samples were centrifuged at 12000 r/min for 15 min. Supernatants were extracted and protein concentrations were determined. The levels of MDA/GSH were subsequently determined using the MDA and GSH assay kit according to the manufacturer’s instructions.

Analysis of mitochondrial membrane potential

Rat NRK-52 cells and human HEK293 cells (1.5 × 10⁵/well) were inoculated in 12-well plates. Rat NRK-52 cells and human HEK293 cells were challenged with MCCPs for different time points. After incubation, the cells were washed three times using PBS, samples of NRK-52 cells and HEK293 cells were examined using a laser confocal microscope (Olympus FV-3000).

Cell cycle assay

Cells were processed after MCCPs. Cells were washed twice with pre-cooled PBS. Cells were collected by centrifugation (1,500 rpm, 5 min). 100 μL of PBS solution was added to cell precipitate to resuspend the cells. Cells were then fixed using 70% ethanol. After cell fixation, cells were centrifuged in a centrifuge at 1,500 rpm for 5 min. Cells were washed again using pre-cooled PBS. 100 μL of RNase (50 μg/mL) was added to resuspend the cells, and the cells were placed at 37°C for 30 min. 400 ul of PI (50 μg/mL) was added, and the cells were placed at 4°C for 30 min.

Animal experiments

All animal experiments were approved by the Animal Care and Use Committee of Cangzhou Central Hospital (No. 2021-279-01). C57 mice (8 weeks old) were housed in a controlled environment (22 ± 3°C, 12 h light/dark cycle). Mice were acclimatized for one week prior to the experiment. Mice were randomly assigned to groups (10 mice per group). Mice were treated with different doses (0, 0.01, 1 and 100 mg/kg/d) of MCCPs for 4 weeks [13]. In the MCCP-treated group, MCCPs were dissolved in corn oil. The mice received MCCPs by gavage. Mice in the control group received only corn oil treatment. Mouse tissues were collected for histopathological examination at the end of the experiment, and the remaining tissues were frozen with liquid nitrogen and stored at −80°C for use in the corresponding experiments.

Immunohistochemical experiments

Tissue sections were permeabilized with 0.2% Triton-X100 (Triton-X100 dissolved in 0.01 mol/L PBS) for 10 min. 10% goat serum was added dropwise to seal the sections and incubated at room temperature for 20 min. Primary antibodies were added (dilution ratio 1:500) at 4°C overnight, the negative control samples were incubated with PBS. Sections were washed three times (5 min each), fluorescently labeled secondary antibodies were added dropwise and incubated at room temperature for 20 min. Sections were washed three times with PBS (5 min each). The samples were detected with a microscope.

Statistical analysis

The experimental data were expressed as Mean ± Standard Deviation (Mean ± SD) and the data were statistically processed using GraphPad Prism 8 statistical software. The Shapiro—Wilk test was applied to test for a normal distribution, comparisons of differences between two groups were analyzed by t-test, and comparisons between multiple groups were analyzed by one-way ANOVA (One-way ANOVA). P < 0.05 indicates that the difference is statistically significant (^*P < 0.05; ^**P < 0.01; ^***P < 0.001).

Data availability

The data supporting this study’s findings are available on request from the corresponding author.

Effect of MCCPs on the proliferation of NRK-52E cells and HEK293 cells by CCK8 assay

Here, we evaluated the effects of MCCPs on the proliferation of NRK-52E and HEK293 cells by treating cells with 0 μg/L, 25 μg/L, 50 μg/L and 100 μg/L of MCCPs for 24 h (The selection of the concentration of MCCPs was based on a previous literature reported [12]), the results showed that the renal cell viability decreased dose-dependently with the increase of the concentration of MCCPs, and that 50 μg/mL MCCPs obviously inhibited the proliferative viability of NRK-52E cell and HEK293. Next, NRK-52E and HEK293 cells were selected to be treated with 50 μg/mL MCCPs for 0 h, 12 h, 24 h and 48 h, it was found that the proliferative activity of NRK-52E and HEK293 cells was gradually decreased with the prolongation of the stimulation time of MCCPs (Figure 1).

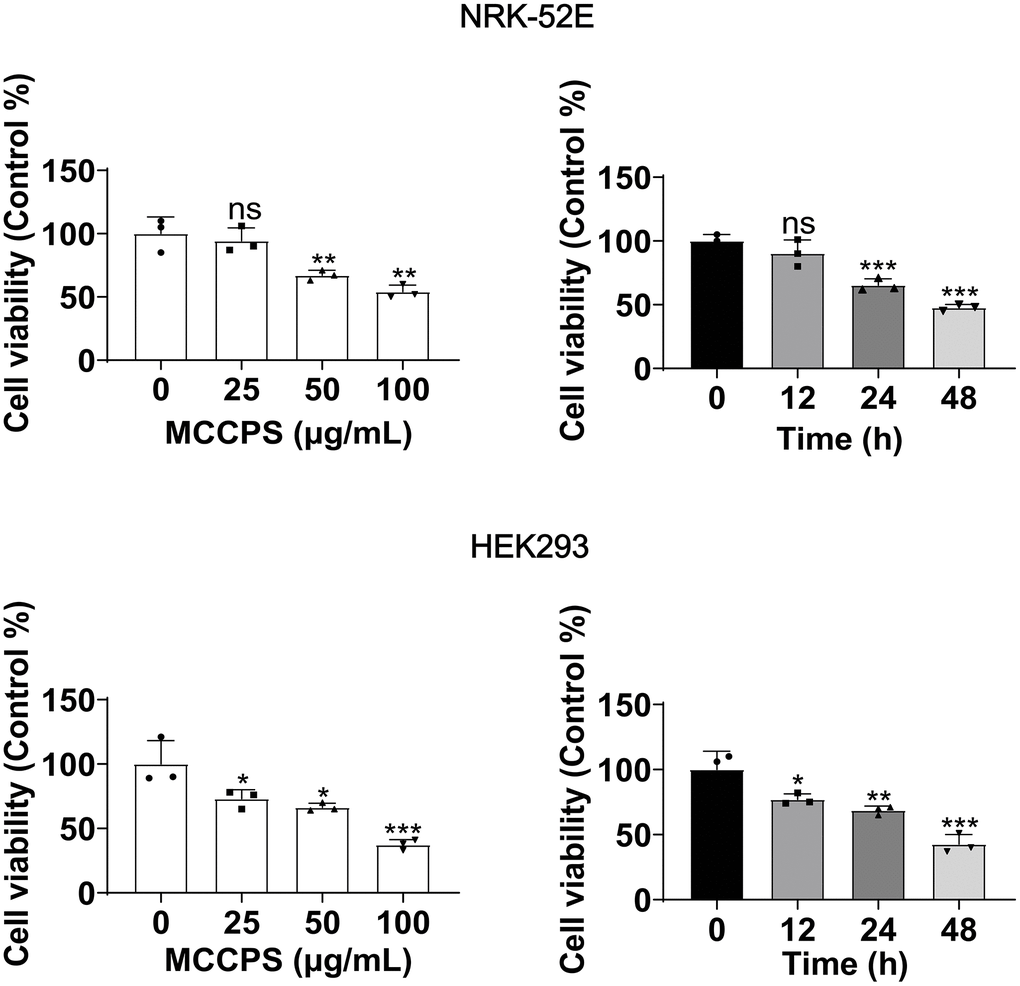

Figure 1. Effect of MCCPs on renal cell viability. The effect of MCCPs on the proliferative capacity of kidney cells was detected by CCK8. p < 0.05 indicates significant difference.

Effect of MCCPs on inflammation of Rat NRK-52E cell and HEK293

We treated NRK-52E/HEK293 with different concentrations of MCCPs (0 μg/L-100 μg/L) for 24 h. The experimental data demonstrated that MCCPs were able to significantly up-regulate the expression of inflammatory molecules, including IL-β, HMGB1, IL-6 and TNF-α expression (Figure 2). In addition, the expression of the inflammatory signaling molecule NF-κB was also significantly elevated compared to control group. These data suggest that MCCPs can induce inflammatory responses in NRK-52E and HEK293 cells (Figure 2).

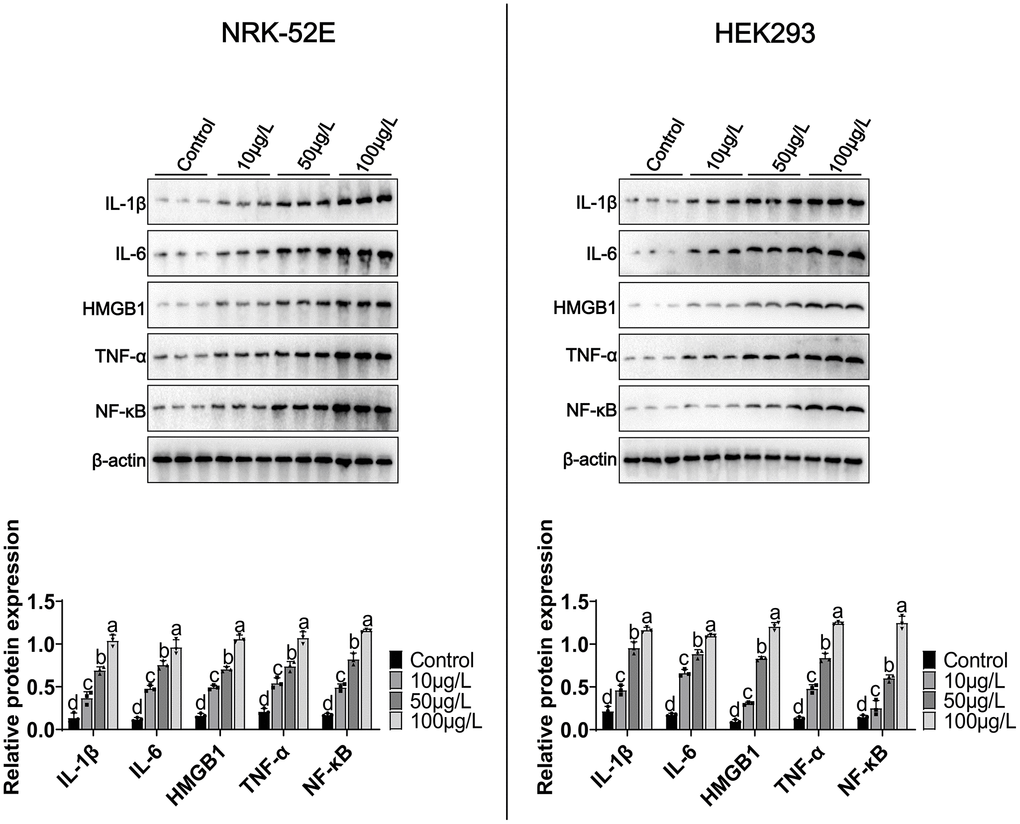

Figure 2. Effects of MCCPs on inflammation in NRK-52E and HEK293 cells. Western blot analysis of the effects of MCCPs on the expression of inflammatory factors. p < 0.05 indicates significant differences.

MCCPs induced senescence in Rat NRK-52E cell and HEK293 cells

Here, we evaluated the effect of MCCPs on renal cell senescence. NRK-52E and HEK293 cells were treated with 0 μg/L, 25 μg/L, 50 μg/L and 100 μg/L MCCPs for 24 h. Sa-β-gal staining showed that MCCPs caused the senescence of kidney cells. Additionally, NRK-52E and HEK293 cells were treated with 50 μg/L MCCPs for 0 h, 12 h, 24 h and 48 h. SPiDER-βGal staining showed that MCCPs were able to induce cellular senescence in NRK-52E cell and HEK293 cells in a time-dependent manner (Figure 3A). The effects of MCCPs on senescence-associated molecular markers were evaluated, including p21, p53, p16, γ-H2AX, CyclinD1 and CyclinE1. The experimental data showed that MCCPs induced an increase in the expression of p16/p21/p53. MCCPs (50 μg/L) was used to treat NRK-52E and HEK293 cells for 0 h, 12 h, 24 h and 48 h. The experimental data showed that MCCPs increased the expression levels of senescence-associated proteins (p53, p16 and p21) in a time-dependent manner (Figure 3B). Furthermore, the expression of cell cycle proteins, such as CyclinD1 and CyclinE1, was down-regulated. The expression of γ-H2AX, a marker molecule for DNA damage, was up-regulated (Figure 3C).

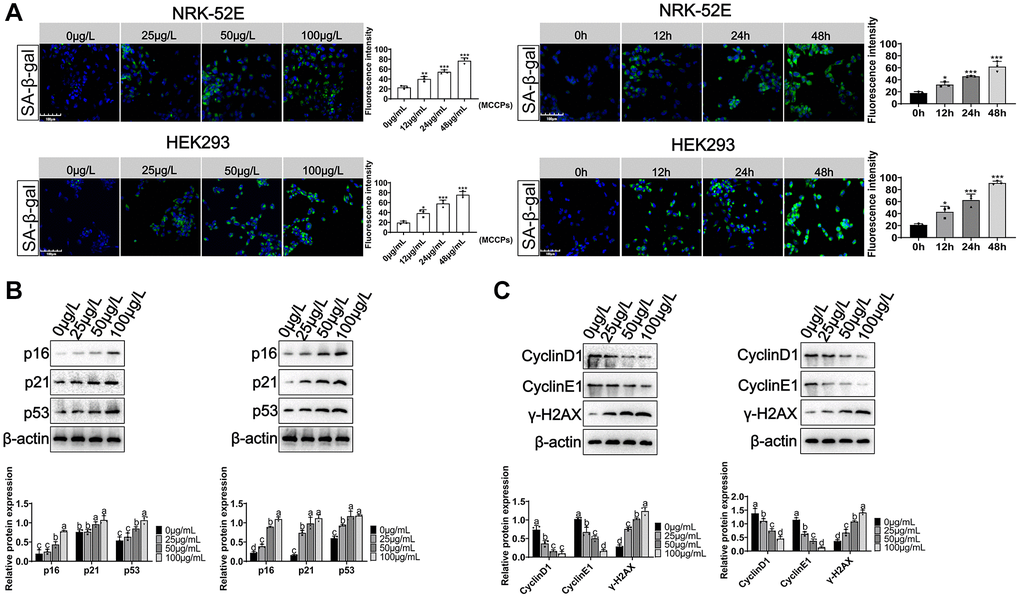

Figure 3. Effects of MCCPs on renal cell senescence. (A) Sa-β-gal staining of NRK-52E and HEK293 cells after MCCPs treatment. (B) Effects of MCCPs on p16/p21/p53 expression in NRK-52E and HEK293 cell model. (C) Effect of MCCPs on the expression of CyclinD1, CyclinE1 and γ-H2AX. p < 0.05 indicates significant difference.

MCCPs induced the ferroptosis in NRK-52E and HEK293 cells

Here, we investigated whether MCCPs could cause cell death. PI staining experiments showed that NRK-52E and HEK293 cells underwent death under MCCPs stimulation. To further determine the type of cell death, the inhibitors of apoptosis (Z-VAD-FMK), programmed necrosis (Necrostatin2) and autophagy (3-Methyladenine) were used to treat cells, respectively. It was found that these inhibitors did not significantly inhibit renal cell death induced by MCCPs. However, when an inhibitor of ferroptosis (Deferoxamine, DFO) was used, cell death was obviously reduced (Figure 4A). Therefore, we first evaluated the effect of MCCPs on iron ion levels within NRK-52E and HEK293 cells. We used a fluorescent probe for Fe²⁺ (FerroOrange), which showed that the levels of Fe²⁺ in NRK-52E and HEK293 cells were clearly elevated compared to control group (Figure 4B).

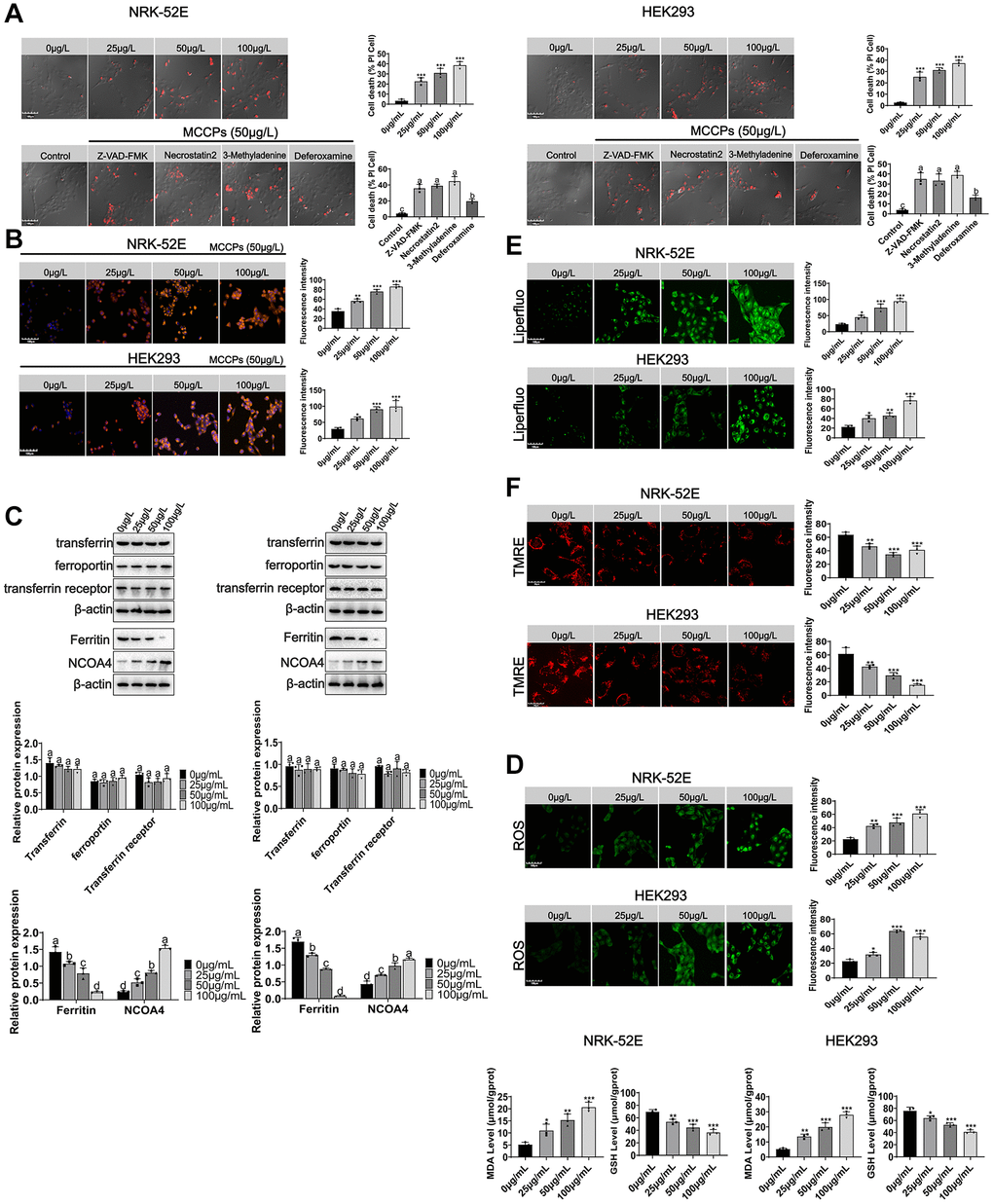

Figure 4. MCCPs induced ferroptosis in renal cells. (A) Analysis of the types of renal cell death induced by MCCPs. (B) MCCPs induced iron overload in renal cells. (C) Effects of MCCPs on transferrin, ferroportin, ferritin and NCOA4 expression. (D) Effects of MCCPs on oxidative stress. (E) Effects of MCCPs on lipid peroxidation. (F) Effects of MCCPs on mitochondrial membrane potential. p < 0.05 indicates significant differences.

Next, we explored the reasons why MCCPs induced Fe²⁺ overload. The metabolic homeostasis of intracellular iron is regulated through transferrin and ferroportin. For this, we first explored the effect of MCCPs on transferrin and ferroportin expression, and found that the transferrin and ferroportin (FPN) expression was not changed after MCCPs treatment (Figure 4C). In addition, the transferrin receptor expression was not altered. The results of this part of the experiment indicate that the expression of ferritin, an intracellular iron storage protein, was significantly down-regulated. Furthermore, NCOA4-mediated autophagic degradation of ferritin, which is one of the most important factors for the induction of cellular Fe²⁺ overload, was found to be significantly up-regulated, which further contributed to the degradation of ferritin (Ferritin Heavy Chain, FTH), and up-regulation of the expression of NCOA4, which can promote FTH autophagy (Figure 4C).

ROS, GSH and MDA are also related markers of ferroptosis. Therefore, the effects of MCCPs on ROS, GSH and MDA levels within NRK-52E cell and HEK293 were investigated. The results showed that different concentrations of MCCPs induced an increase in ROS/MDA and a decrease in GSH levels. 50 μg/L MCCPs treated NRK-52E and HEK293 cells for 0 h-24 h. MCCPs could inhibit intracellular GSH production time-dependently when compared with the control group. Furthermore, MCCPs promoted the increase of MDA/ROS levels (Figure 4D). Additionally, we analyzed the lipid peroxidation of cells treated with MCCPs using a lipid peroxidation probe (Liperfluo), and experimental data showed that NRK-52E and HEK293 cells underwent lipid peroxidation under the treatment of MCCPs (Figure 4E).

Mitochondria are one of the major sources of cellular ROS production [15], so we evaluated the effect of MCCPs on mitochondrial membrane potential. The experimental results showed that different concentrations of MCCPs induced a decrease in mitochondrial membrane potential. Then, after we treated kidney cells with MCCPs at different time points, we found that the mitochondrial membrane potential was weakened, which is consistent with the characteristics of ferroptosis. Mitochondrial tracker staining showed disruption of mitochondrial integrity and increased fragmentation in MCCPs-treated cells, indicating severe mitochondrial damage (Figure 4F).

Signaling pathways of ferroptosis induced by MCCPs

We analyzed the signaling pathways involved in MCCPs-induced ferroptosis in kidney cells. First, System Xc--glutathione-GPX4 expression was analyzed, and experimental data showed a significant downregulation of GPX4, and SLC7A11 (xCT) expression (Figure 5). Recent studies have shown that FSP1-CoQ10 is also involved in the process of ferroptosis, so we also evaluated the expression of FSP1, and the results showed that FSP1 expression was not significantly changed in our experimental system. COX2 and 4HNE are important molecules reflecting the degree of intracellular lipid peroxidation damage, the experimental data illustrated that the levels of COX2 and 4HNE were obviously elevated. However, the expression of ACSL4 (which is involved in fatty acid synthesis) did not show significant changes (Figure 5).

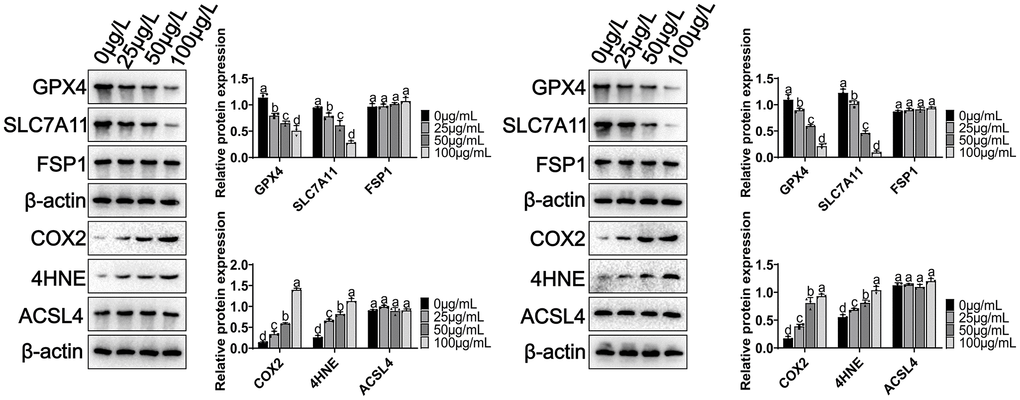

Figure 5. Effect of MCCPs on ferroptosis-related signaling pathway in kidney cells. p < 0.05 indicates significant difference.

DFO alleviated MCCPs-induced ferroptosis in renal cells

To further determine the type of cell death induced by MCCPs belongs to ferroptosis, ferroptosis inhibitor (desferrioxamine, DFO) was used to treat the cells. DFO is an inhibitor of ferroptosis by neutralizing excess intracellular Fe²⁺ ions. The optimal concentration of action of DFO that does not affect cell viability was tested. NRK-52E and HEK293 cells were treated with DFO (0 μΜ-100 μΜ) for 24 h. The cell proliferation assays performed in pre-experiment showed that 10 μΜ of DFO did not show significant damaging effects on renal cells, so we chose 10 μΜ DFO as the optimal concentration to be used in the subsequent experiments. To investigate the effect of DFO on MCCPs-induced NRK-52E and HEK293 cell damage, we pre-treated kidney cells with 10 μΜ DFO for 5 h and then continued to treat cell with MCCPs for 24 h. The experimental data showed that the DFO pretreatment could significantly improve the cell viability compared with the MCCP-treated group (Figure 6A). In addition, oxidative stress analyses showed that ROS, MDA levels were significantly down-regulated, but GSH levels were increased under DFO treatment (Figure 6B). Lipid peroxidation probe (Liperfluo) levels were significantly decreased under DFO treatment (Figure 6C).

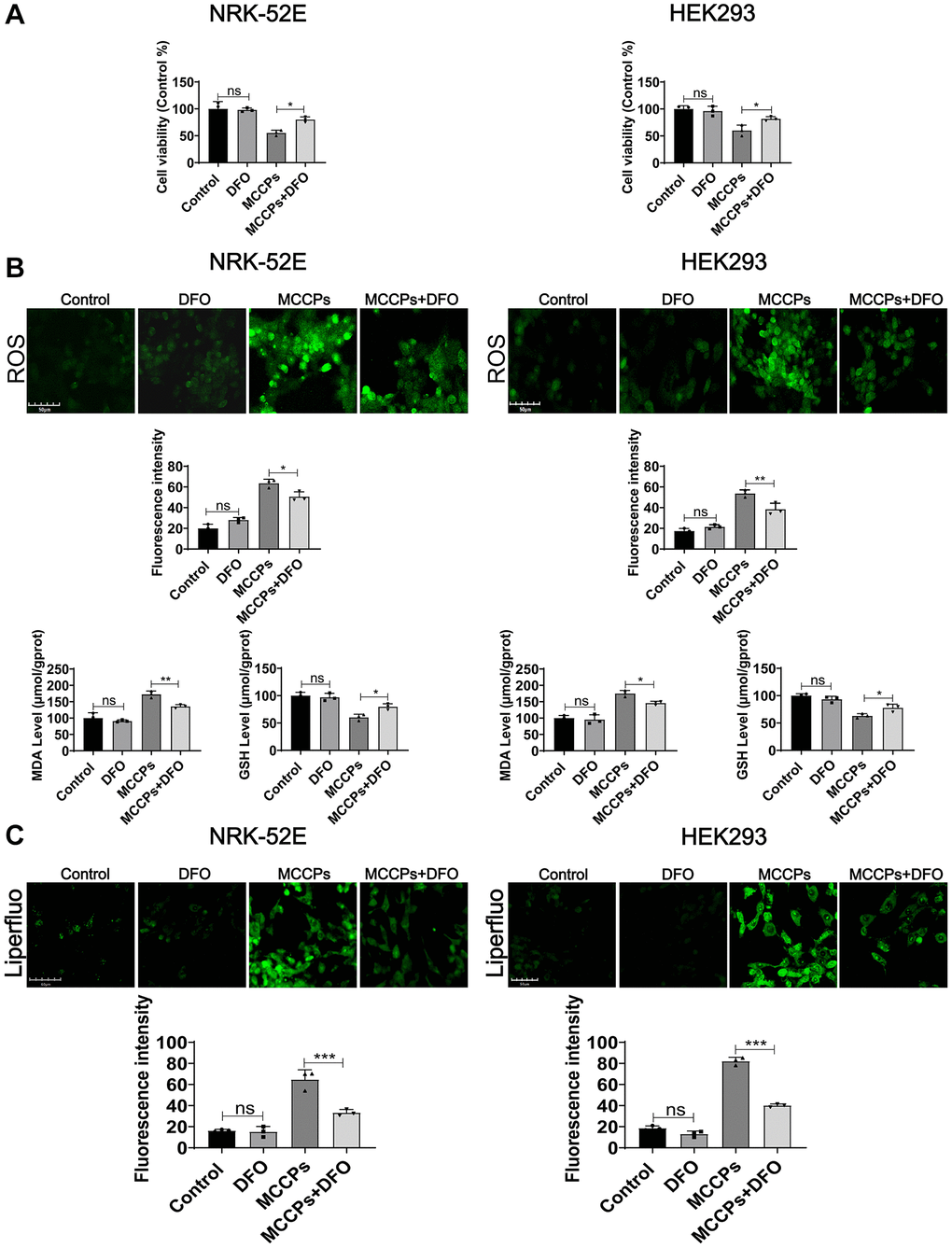

Figure 6. Effect of DFO on cellular damage caused by MCCPs. (A) Effect of DFO on cell viability. (B) Effect of DFO on ROS, MDA and GSH levels. (C) Effect of DFO on lipid peroxidation caused by MCCPs. p < 0.05 indicates significant difference.

Further we investigated the effect of DFO on the expression of ferroptosis-related proteins. Western blot assays showed that x-CT and GPX4 expression was up-regulated under DFO treatment (compared with the MCCPs treatment group). However, COX2 and 4HNE expression was down-regulated (Figure 7A). Next, we analyzed the effect of MCCPs on the inflammation induced by MCCPs. The results showed that DFO alleviated the inflammatory response caused by MCCPs (Figure 7B).

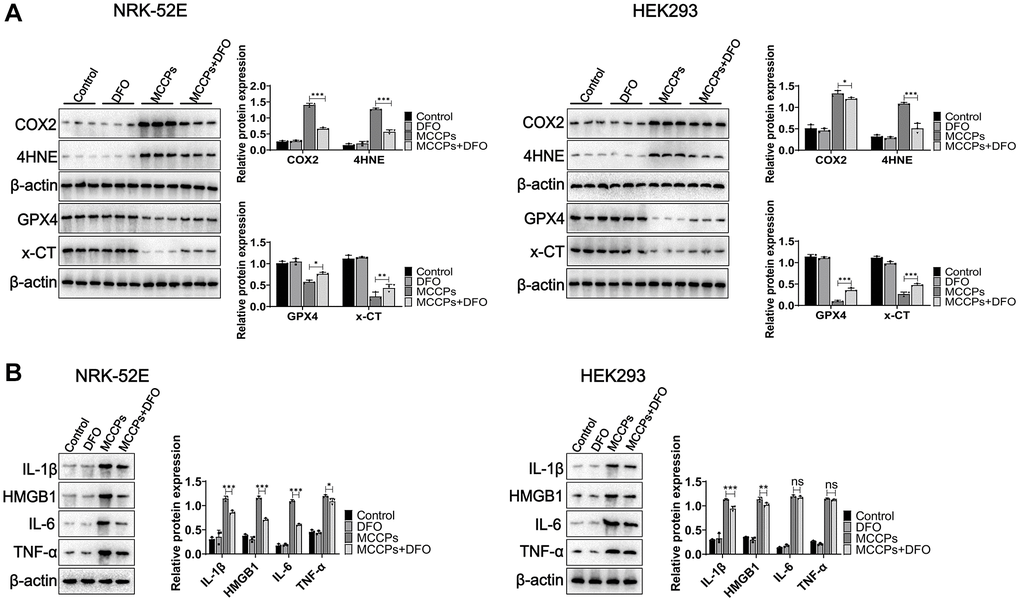

Figure 7. DFO inhibited ferroptosis. (A) Effect of DFO on the expression of MCCPs-induced ferroptosis-related proteins. (B) DFO alleviated the expression of inflammatory molecules. p < 0.05 indicates significant difference.

MCCPs-induced ferroptosis is central to cellular senescence

To determine whether MCCPs-induced ferroptosis in renal cells is the basis of cell senescence, DFO was used to treat NRK-52E and HEK293 cells, the experimental results showed that they alleviated premature aging of renal cells by Sa-β-gal staining (SPiDER-βGal) (Figure 8A). Further experiments showed that DFO significantly reduced p21, p16, γ-H2AX expression, and increased CyclinD1 and CyclinE1 expression (Figure 8B).

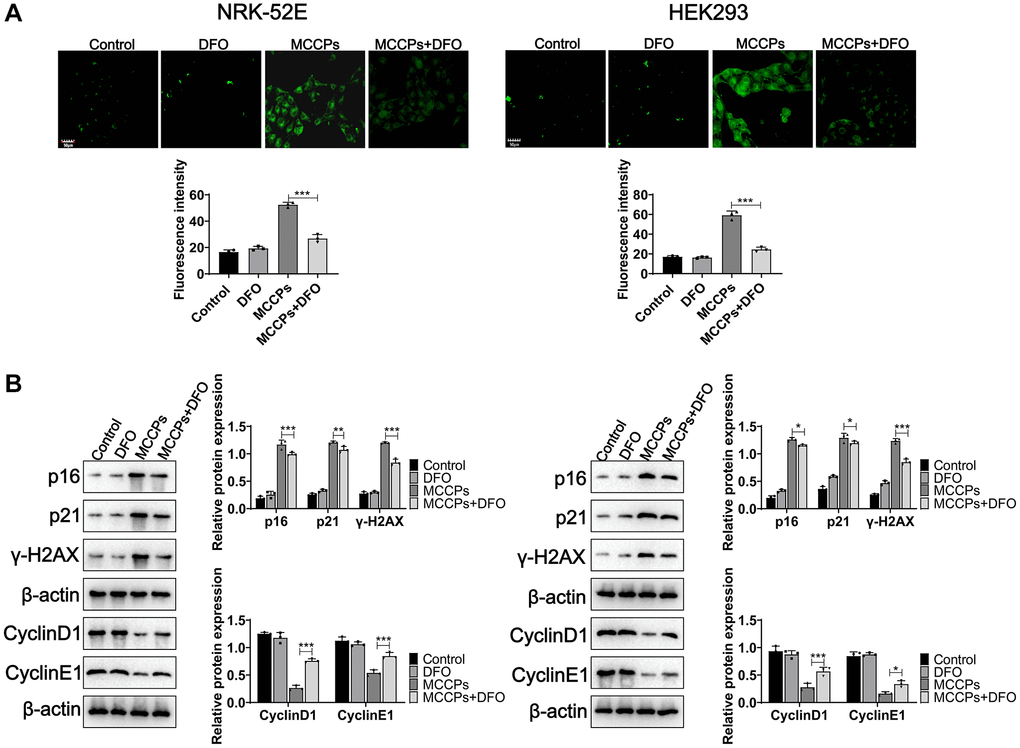

Figure 8. DFO alleviated renal cell senescence caused by MCCPs. (A) Sa-β-gal staining analysis of cell senescence. (B) Western blot was used to assess the effect of DFO on cellular senescence caused by MCCPs. p < 0.05 indicates significant difference.

Assessment of the effect of MCCPs on the kidney tissue in vivo

In vivo, we assessed the effect of MCCPs on renal inflammation and aging in vivo. The results of indirect immunofluorescence showed that MCCPs caused inflammatory responses (TNFα, IL-1β andIL-6) in the kidney (Figure 9A). Furthermore, we evaluated the effect of MCCPs on renal aging, and Sa-β-gal staining showed that MCCPs led to the renal aging. HE staining also indicated that renal tissue underwent damage (Figure 9B). Meanwhile, p21 and p16 staining also showed that MCCPs contributed to renal aging (Figure 9C). Furthermore, Masson staining showed that the level of kidney fibrosis was significantly increased compared to the control group (Figure 9D). Additionally, ki67 staining showed that the regenerative capacity of the kidney tissue was significantly reduced compared to the control group (Figure 9E). We also observed an elevation in iron ion levels in the MCCPs-treated group (Supplementary Figure 1).

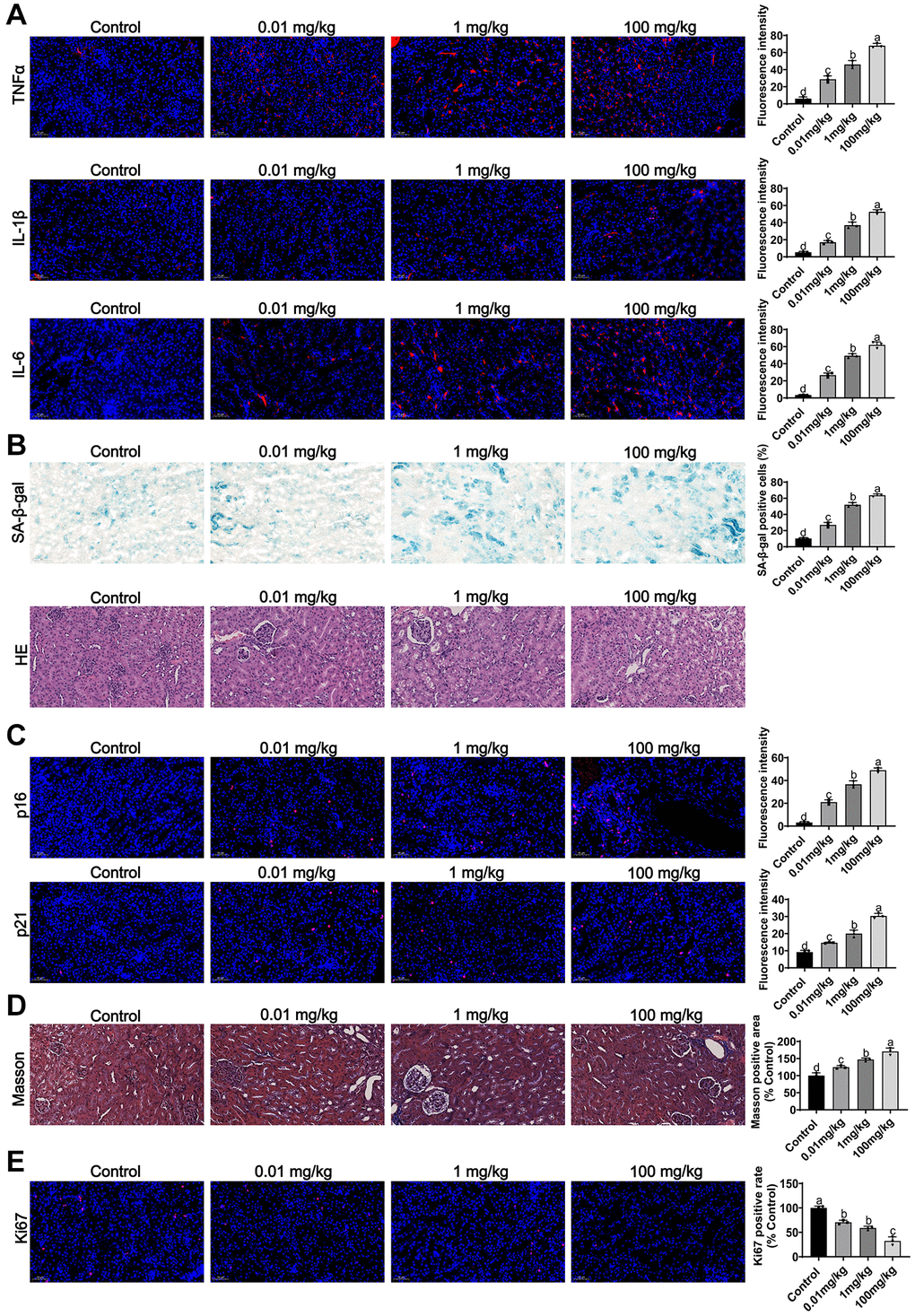

Figure 9. Effects of MCCPs on renal inflammation and aging in vivo. (A) Effect of MCCPs on renal inflammation. (B) Sa-β-gal and HE staining to analyze the effect of MCCPs on renal aging. (C) Effect of MCCPs on renal p21 and p16 expression. (D) Masson staining analysis of the effect of MCCPs on renal fibrosis. (E) The effect of MCCPs on Ki67 expression in vivo. p < 0.05 indicates a significant difference.
