Activating transcription factor 6 alleviates secondary brain injury by increasing cystathionine γ-lyase expression in a rat model of intracerebral hemorrhage

Animals and ethical considerations

All experiments were approved by the Institutional Animal Care Committee of the Zhejiang Provincial People’s Hospital and conducted in adherence to the National Institutes of Health’s Guidelines on Animal Care and Use. Adult male Sprague-Dawley (SD) rats, weighing between 280-300g, were procured from the Animal Center of the Chinese Academy of Sciences, Shanghai, China. Following the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health and abiding by the ARRIVE (Animal Research: Reporting of In Vivo Experiments) guidelines, adult male Sprague-Dawley (SD) rats (weight 280-320g; Animal Center of Chinese Academy of Sciences, Shanghai, China) were accommodated in an environment with a temperature of 18-26° C, humidity of 40-70%, noise below 85 decibels, ammonia concentration below 20PPm, and ventilation of 8-12 times/hour under a standard 12-hour light/dark cycle. Food and water were supplied without restriction. Anyway, we strived to minimize the number of animals used and the pain of the experimental process.

Experimental grouping

The experiments were divided into two main sections, namely Experiment 1 and Experiment 2. Rats were assigned to different groups using an equivalent random assignment method, which involved a researcher, blind to the groupings, assigning the rats using a random-number table.

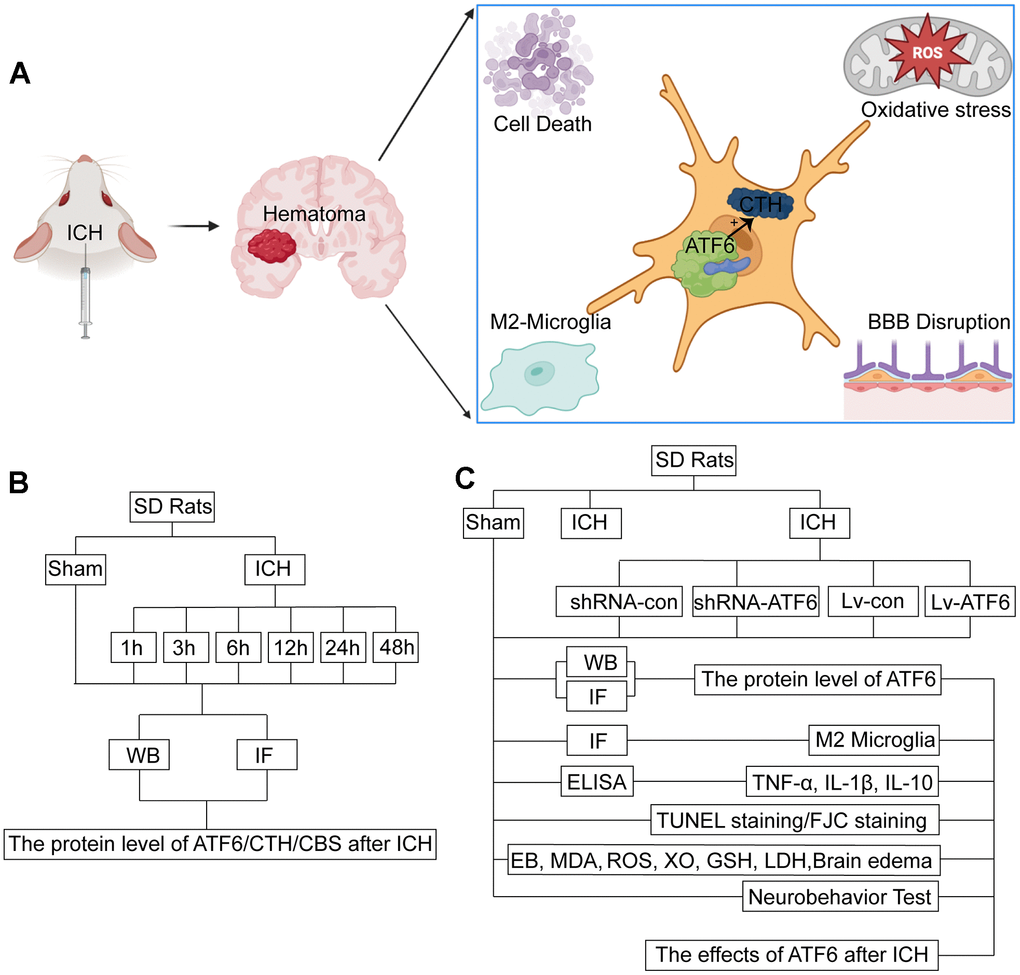

In Experiment 1 (Figure 1B), following the induction of ICH, the 36 surviving ICH rats were divided into several discrete ICH groups. Experiment 1 was comprised of the following seven groups: a Sham group and six experimental groups corresponding to the time after ICH: 1, 3, 6, 12, 24, and 48 hours under the influence of ICH (each group included six subjects randomly selected from the surviving rats). After the ICH treatment, the rats were subjected to deep anesthesia using sodium pentobarbital at appropriate intervals, and relevant cerebral tissues were collected for further investigation. For each subject, two cerebral coronal slices were procured: one slice 3 mm anterior and the other 4 mm posterior to the point of coronal injection. The right basal ganglia were promptly isolated from the 3 mm thick sections for the Western blot assay. Tissue from the 4 mm thick slice was fixed in 4% paraformaldehyde, embedded in paraffin, and then sectioned into 4 μm slices for immunofluorescence analyses.

Experiment 2 was made up of the following six groups, each containing 30 rats randomly selected from the previously mentioned Sham and ICH subjects: the Sham group, ICH group, ICH+ shRNA-control group, ICH+shRNA-ATF6 group, ICH+LV-control group, and ICH+LV-ATF6 group (Figure 1C).

12 rats were utilized to examine behavioral impairments using the Morris water maze and rotarod performance tests. 72 hours after ICH, 6 rats were promptly euthanized to collect cerebral tissue, blood, and cerebrospinal fluid (CSF) samples for Western blotting, immunofluorescence assays, ELISA, terminal deoxynucleotidyl transferase-mediated dUTP nick-end labeling (TUNEL), fluoro-jade C (FJC) staining, reactive oxygen species (ROS) and Lactate Dehydrogenase (LDH) analyses. The remaining 6 subjects in each group were chosen for the evaluation of brain edema at 72 hours after ICH. To ensure impartial analysis of behavioral damage and cerebral edema, the experimenters remained completely unaware of the group assignments.

The establishment of ICH model in vivo

The in vivo ICH model was established using an autologous whole-blood model as detailed in previous research [26]. Briefly, Sprague-Dawley rats were anesthetized with isoflurane (induction concentration was 3%, maintenance concentration was 2%) and secured to a stereotaxic apparatus (ZH-Lanxing B-type stereotaxic frame, Anhui, China). Then, 70 μL of autologous blood was slowly administered unilaterally (20 μL/min) to the right basal ganglia using a microliter syringe. The injection site was 3.5 mm lateral to the midline, 0.2 mm posterior to the bregma, and 5.5 mm ventral to the cortical surface. To prevent reflux, the needle was left in place for an additional 5 minutes post-injection. The blood that actually entered the rat brain tissue was about 70 ul. This is equivalent to 50-60 ml of human intracerebral hemorrhage. The survival rate of ICH rats induced by this method can reach more than 80% within one month. For sham-treated rats, 70 μl of physiological saline was administered intracerebrally. Following this, bone wax was used to seal the burr hole, and the skin incision was disinfected and sutured. Throughout the surgery, the rats were placed supine on a heating blanket to maintain body temperature within approximately 37 ± 0.5° C.

To ensure the uniformity of the amount of hematoma in the brain parenchyma, we spent a lot of time and animals in our previous model construction, and after we became familiar with the ICH model construction, we started the formal experiment. We just randomly selected one ICH rat and made brain slices to observe the location and size of the hematoma. Some of the hematoma in the selected rat entered the ventricle, but most of the hematoma was in the basal ganglia. It is necessary to accurately locate the basal ganglia area by stereotactic machine and inject blood as slowly as possible to ensure the homogeneity of the hemorrhage location and hematoma. Clinically, there are also many patients with cerebral hemorrhage breaking into the ventricles. Although we try to simulate the basal ganglia cerebral hemorrhage, intraventricular hemorrhage is inevitable in the process of modeling. Based on the rigor of basic experiments and control methods, ICH may have a certain effect on the behavior of rats, but the probability of the effect on each group of rats is the same, so we can only use a stable technique as far as possible, as accurate as possible positioning, as slow as possible to eliminate this effect. In short, we must ensure the stability of modeling technology.

Lentiviral transduction

In line with previous literature [27], we performed intracerebroventricular injection of lentivirus seven days before ICH induction in rats. Briefly, we anesthetized the Sprague-Dawley rats and secured them in a stereotaxic apparatus, after which we drilled a left-sided hole 1.5 mm lateral and 1.1 mm posterior to the bregma. We then slowly injected a 5 μl dose of lentivirus into the lateral ventricle at a rate of 0.5 μl/min to a depth of 3.5 mm and left the needle in place for 5 minutes.

Western blot assay

In agreement with previous studies [28], we used the Western blot assay to measure protein levels. Brain samples, procured from the ipsilateral side of the brain 3 mm anterior to the needle point, were used for Western blotting. We selected ICH rat brain tissue at the time point when ATF6 expression peaked, signifying maximum ATF6 function, for subsequent experiments. We homogenized the extracted right basal ganglia from each rat and centrifuged the samples at 12,000 g at 4° C for 10 minutes, followed by supernatant collection. Protein concentrations were determined using the Enhanced BCA Protein Assay Kit (Beyotime Biotechnology, Shanghai, China). Equivalent proteins (30 μg/lane) were subjected to SDS polyacrylamide gel electrophoresis, followed by electrotransfer to a polyvinylidene difluoride membrane (Millipore, USA). The membranes were blocked with 5% nonfat milk for 1 hour and incubated with ATF6 primary antibodies (concentration 1:200, ab37149, Abcam, UK)/CTH primary antibodies (concentration 1:50, ab136604, Abcam)/CBS primary antibodies (concentration 1:500, ab313382, Abcam) overnight at 4° C. We used anti-ATF6 and anti-β-tubulin (concentration 1:100, ab18207, Abcam) antibodies for immunoblotting. The membranes were then washed three times (5 min/wash) with PBST (PBS + 0.1% Tween 20) and incubated with horseradish peroxidase (HRP)-linked secondary antibodies (Santa Cruz Biotechnology, USA). We used the enhanced chemiluminescence kit (Affinity, Jiangsu, China) for signal detection. The relative protein quantity was calculated using ImageJ software (National Institutes of Health, USA) by a researcher unaware of the rat group assignments.

Immunofluorescence staining

As previously detailed [29], the brain samples obtained from the brain tissue 4 mm after the insertion point were cut into equal 4 μm sections to perform staining. We fixed the brain samples in 4% paraformaldehyde at 4° C overnight, embedded them in paraffin, and sliced them into 4 μm-thick sections. After antigen retrieval and blocking, the sections were incubated with primary antibodies for ATF6 (concentration 1:100, ab37149, Abcam) and NeuN (concentration 1:100, ab177487, Abcam) overnight at 4° C, followed by triple washing in TBST (PBS+0.1% Tween 20). Subsequently, the appropriate secondary antibodies were applied to the sections at 37° C for 1 hour, followed by triple washing in PBST. Ultimately, we cover-slipped the slices with anti-fading mounting medium that included 4,6-diamino-2-phenyl indole (DAPI, SouthernBiotech, USA). We observed at least six microscopic fields with 400x magnification in the cortex closest to the hematoma in the ipsilateral cerebral hemisphere in each slice. A researcher, blind to the rat grouping, independently obtained representative photos from at least six tests with six different rats. We used ImageJ software (National Institutes of Health, USA) to analyze the relevant fluorescence intensity and count positive cells.

ELISA

At 24 hours after ICH (immediately prior to euthanasia), we collected blood samples from all subjects via heart puncture and CSF samples from the foramen magnum. We prepared all blood samples through centrifugation at 1000g for 5 minutes at 4° C. We subjected CSF samples to immediate centrifugation at 12000g for 30 minutes at 4° C. Next, we gathered the supernatants for analysis of IL-1β, TNF-α, and IL-10 expressions using specific ELISA kits (Bio-Swamp, Wuhan, China), following the manufacturer’s guidelines.

ROS analysis

We measured cerebral ROS levels, indicative of oxidative stress, using an ROS assay kit (Beyotime Biotechnology, China). We prepared brain tissue samples through homogenization and centrifugation at 12000g for 10 minutes at 4° C, and collected the supernatants. ROS levels were measured using the oxidant-sensitive probe 2,7-dichlorofluorescein diacetate (DCF-DA). We then detected fluorescent intensity using a fluorometric microplate reader (Molecular Devices, USA) with excitation at 485 nm and emission at 530 nm. ROS concentrations across groups were denoted as fluorescent intensity per total protein mass (mg). We normalized all sample ROS levels to those in the Sham group.

Glutathione level measurement

We measured GSH levels using the Ellman method, in which GSH reacts with 5,5-dithiobis-2-nitrobenzoic acid to form a product with maximum absorbance at 410 nm. We express the results as nanomoles per gram of wet tissue.

Xanthine oxidase (XO) activity measurement

We determined XO activity spectrophotometrically following the Prajda and Weber method, which relies on the conversion of xanthine to uric acid, characterized by increased absorbance at 292 nm (eM 9.2 · 103). We define one unit of activity as 1 μmol of uric acid formed per minute and express the data as U/mg protein.

Evans blue

We injected six rats in each group with 4 ml/kg of Evans blue solution (MKBQ3656V, Sigma-Aldrich, Merck KGaA, Darmstadt, Germany) via the caudal vein. After 1 hour of systemic circulation, we anesthetized the rats and perfused them with normal saline to remove the colorless liquid. We collected the injured brain tissue, weighed it, and cut it into pieces. We then dissolved the tissue in 1 ml 50% trichloroacetic acid at 60° C, incubated it for 24 hours, and centrifuged it at 1000 × g for 10 minutes. We diluted the supernatant using absolute ethanol and detected the absorbance value at the wavelength of 620 nm. We calculated the content of Evans blue (μg/g) in the corresponding brain tissue.

MDA analysis

Lipid peroxidation in hippocampal samples was evaluated using an MDA assay kit (S0131; Beyotime Biotechnology) to quantify MDA concentration. We weighed each hippocampus before creating a homogenate with PBS on ice (10% hippocampal-tissue weight) which was then centrifuged at 12,000 g for 10 minutes at 4° C to obtain the supernatant. We added assay reagents to the mixtures, heated them at 100° C for 15 minutes, and after cooling to room temperature, we centrifuged them at 1000 g for 10 minutes to obtain the supernatant. We determined MDA concentration by measuring the absorbance at 532 nm.

The quantity of brain water content

Following previous methods [30], we employed the wet-dry technique to determine cerebral edema. Briefly, 24 hours after ICH induction, we injected subjects with sodium pentobarbital (40mg/kg) intraperitoneally and promptly extracted the intact brain. We split each brain along the midline into two hemispheres, which were further divided into five sub-regions: ipsilateral basal ganglia (Ipsi-BG), ipsilateral cortex (Ipsi-CX), contralateral basal ganglia (Cont-BG), contralateral cortex (Cont-CX), and cerebellum (CB). We immediately weighed these sections to record their wet weights. After dehydrating the samples at 100° C for 72 hours, we recorded their dry weights. We calculated the water content proportion as follows: [(wet weight - dry weight) / wet weight] x 100%.

Neurobehavioral evaluations

All rats underwent evaluations encompassing seven distinct areas: body proprioception (BP), climbing (CL), forelimb outstretching (FO), limb symmetry (LS), lateral turning (LT), spontaneous activity (SA), and vibrissae touch (VT), as previously described [31]. Further details about these behavioral tests are provided in Table 1. Rats were trained three times per day for three days before the ICH model was established. The average duration of the test prior to ICH onset was recorded as the baseline value (Pre). The test was carried out on days 1, 3, 7, 10, 14, 21, 28, and 35 after ICH because these time points are the peak of the development of pathological events such as oxidative stress, brain edema, and neuroinflammation in the acute period after ICH, and are the key time points for the recovery of nerve function after ICH.

TUNEL staining

TUNEL staining was utilized to detect apoptosis in brain tissues [32]. Initially, brain slices were dehydrated at 70° C for an hour. We then gradually deparaffinized the sections using 100% dimethylbenzene, followed by treatment with a series of ethanol solutions (100% twice, 95% twice, and 80%). We subsequently treated these samples with TUNEL staining reagents for an hour at 37° C. Finally, the TUNEL-stained slices were incubated with the NeuN antibody at 4° C overnight to identify neuronal apoptosis. An experimenter, blind to the rat groupings, used a fluorescent microscope (Nikon, Tokyo, Japan) to visualize TUNEL-positive neurons. The apoptotic index, defined as the proportion of TUNEL-positive cells in the brain, was used to quantify brain tissue apoptosis.

FJC staining

Neuronal degeneration was assessed via FJC staining as per existing studies [33]. Briefly, brain slices were deparaffinized and rehydrated, immersed in 0.06% potassium permanganate solution (Sigma-Aldrich, USA) for 15 minutes, rinsed in deionized water, and then soaked in FJC working solution containing 0.1% acetic acid for 30 minutes. These slices were subsequently dehydrated in an incubator, rinsed with 100% dimethylbenzene for 2 minutes, and cover-slipped with neutral balsam. A researcher, unaware of the rat groupings, visualized and counted FJC-positive cells under a fluorescent microscope (Nikon, Japan).

Morris water maze tests

We evaluated cognitive capacity via the Morris water maze tests, as described in previous research [34]. The water maze was divided into four quadrants with a target platform hidden 2 cm below the water surface in the center of the third quadrant. The water was maintained at a temperature of 25±2° C and dyed with a special black pigment. Consistent visual reference points were maintained around the water maze throughout the training and testing processes. The rats were placed in the maze at each quadrant and given 60 seconds to find the target platform. If a rat failed to reach the target platform within 60 seconds, they were guided using a stick. Upon reaching the platform, the rats were allowed to stay for 10 seconds to reinforce the associated learning and memory. This training process was repeated over five consecutive days, with ICH induction occurring the day after training. Escape latency (EL), the time taken from the start position to the platform, was recorded. Rats were placed in the first quadrant and allowed to find the target platform. On days 30, 31, 32, 33 and 34 after ICH, ELs and swimming distances were tested and documented. We used the mean EL and distance to evaluate each rat’s learning ability and cognitive function. After 5 days of water maze testing, in order to judge the spatial memory ability of the rats for the target platform, we conducted a special water maze experiment on the rats on the 35 days after ICH modeling. After the platform was removed and the rats were released, the number of times the rats crossed the area where the platform was located was recorded, and the time the rats stayed in the target quadrant was recorded, which would serve as a reference indicator of the memory function of the rats.

Rotarod performance test

The rotarod test primarily assessed the effects of therapeutic intervention on vestibulomotor function. In brief, rats were placed on a rotarod cylinder (ZH-300B, Anhui Zhenghua Biological Equipment Co. Ltd., China), and the duration of each rat remaining on the cylinder was recorded. The cylinder’s speed was consistently increased from 4 to 30 rpm within one minute. The experiment concluded when the rat either fell off or gripped the cylinder, making two consecutive revolutions. Each rat underwent training three times per day for three days before establishing the ICH model. The average duration on the rotarod before ICH induction was recorded as the baseline value (Pre). Subsequently, tests were conducted on days 1, 3, 7, 10, 14, 21, 28, and 35 after ICH to evaluate early impacts on motor function.

Foot fault test

We conducted the foot fault test, as described in prior research, to evaluate sensorimotor coordination during spontaneous locomotion [35]. Rats were recorded for 60 seconds from beneath a grid. A blinded investigator analyzed these recordings, accounting for the number of total steps and foot faults made by the left limbs (impaired side, contralateral to the lesion). Foot faults were identified when the rat misplaced its impaired forepaw or hind paw, causing the paw to fall through the grid. The obtained data were presented as percentages of foot faults over total steps taken by that paw. Rats were trained three times per day for three days before the ICH model was established. The average duration of the test prior to ICH onset was recorded as the baseline value (Pre). Similar to the rotarod test, the foot fault tests were carried out on days 1, 3, 7, 10, 14, 21, 28, and 35 after ICH.

Adhesive removal test

As mentioned in the previous literature, we used adhesive removal test to measure the sensory function of the affected opposite limb in rats [36]. Rats were trained three times per day for three days before the ICH model was established. The average duration of the test prior to ICH onset was recorded as the baseline value (Pre). Similar to the rotarod test, the foot fault tests were carried out on days 1, 3, 7, 10, 14, 21, 28, and 35 after ICH.

Statistical analysis

All results are expressed as mean ± standard deviation (SD). We used GraphPad Prism 6.0 (GraphPad Software, USA) for statistical analysis. The Kolmogorov-Smirnov test analyzed the normal distribution of data sets. For two normally distributed groups, we applied a two-sided unpaired Student’s t-test for comparison, and the Mann-Whitney U test for non-parametric results. We utilized repeated measures ANOVA to analyze data from the Morris water maze. Parameters with a p < 0.05 were considered statistically significant. In this study, power analysis determined sample sizes for the animal ethics dossier application, and each two-sided unpaired Student’s t-test or Mann-Whitney U test was conducted using SAS 9.0 (SAS Institute Inc., USA). All power analyses exceeded 0.8 in the current study.

Availability of data and materials

The datasets used and/or analyzed during the present study are available from the corresponding author on reasonable request.

General observation

Our study involved various experimental ICH groups, wherein we measured parameters such as body weight, body temperature, blood pressure, arterial blood gases, and glucose levels. Notably, there were no significant differences among the groups. A total of 204 experimental rats were used, including 30 in the Sham group and 174 in the ICH group. In the Sham group, no mortality was observed, while in the ICH group, we recorded a mortality rate of 10.3%, which was consistent with the animal mortality rates reported in existing study [37]. 18 rats died from ICH modeling, and we speculated that the death might be caused by: 1. The speed of blood injection was not balanced, and occasionally the speed was too fast, which led to the increase of intracranial pressure, and finally led to the death of the rats. 2. Errors in stereotaxic orientation caused blood to enter the cerebral ventricle and other areas, accelerating the death of rats. 72 rats undergoing behavioral experiments were euthanized. The mortality rate did not differ significantly across the experimental groups. In Experiment 2, injection of interfering reagents had no significant impact on the mortality rate of ICH rats (Table 2). We monitored the health and behavior of the animals every 1h for 24 hours after molding, and at a frequency of 12h after 24 hours. This aligns with the approved ICH model mortality rate for Sprague-Dawley (SD) rats, as per the National Ethical Committee in Animal Experimentation (CEEA, Comiteì d’Ethique en Experimentation Animale) of the French Ministry for Education and Research.

ATF6 protein level was significantly up-regulated in the ICH-induced tissues of brain

We aimed to elucidate the protein expression levels of ATF6, CBS, and CTH in brain tissues following ICH at varying time intervals. For this purpose, we performed Western blotting assays. We found a substantial increase in ATF6 protein expression in ICH-induced tissues compared to the Sham group. In response to ICH, ATF6 levels started to rise, peaking at 24 hours and remaining elevated up to 48 hours after ICH. Concurrently, CTH expression varied in parallel with ATF6 changes, whereas CBS levels remained constant, unaffected by ICH (Figure 2A, 2B, 2E, 2F). We further identified that ATF6 was predominantly expressed in neurons through double-immunofluorescent staining (Figure 2C, 2D).

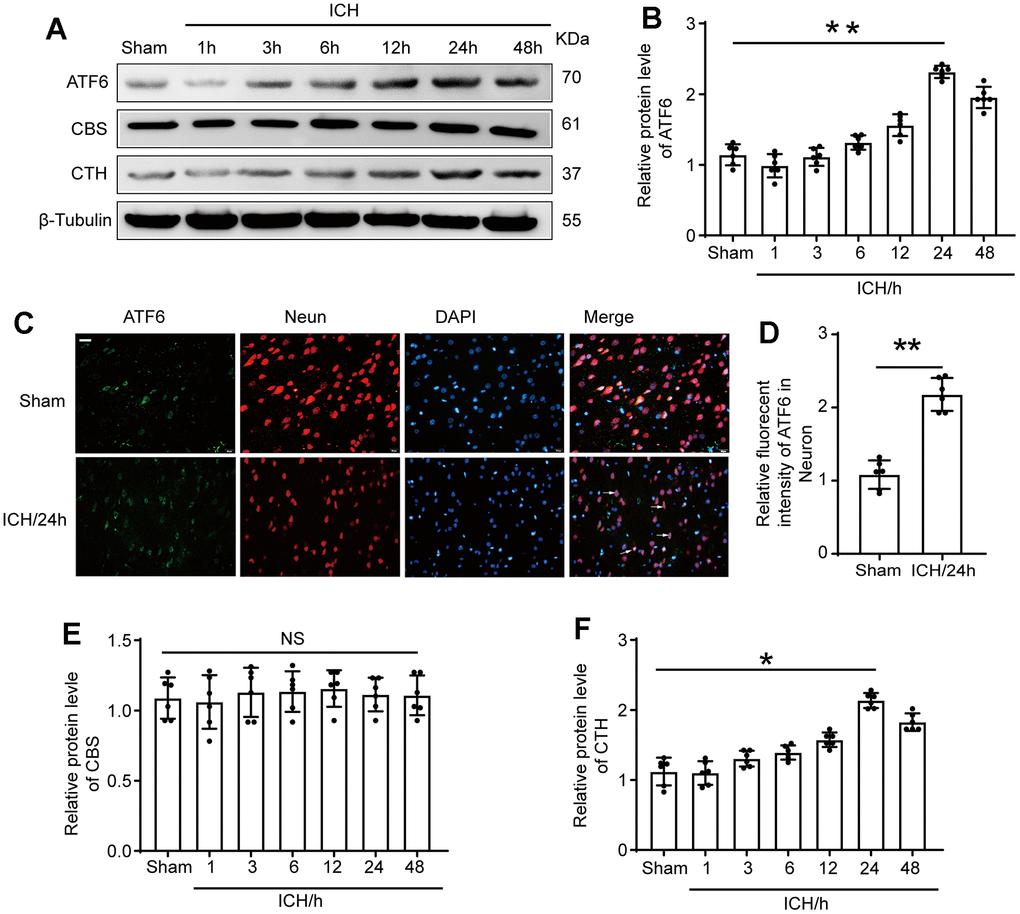

Figure 2. The protein level of ATF6 in neuron increased significantly at 24 h after ICH. (A, B) Western blot analysis and quantification of ATF6 at 1h, 3h, 6h, 12h, 24h and 48h after ICH. (C, D) Double immunofluorescence analysis of ATF6 (green) and neuron (red) in brain sections. Nuclei were labeled with DAPI (blue). Arrow indicated ATF6 positive cells. Scale bar = 50 μm. (E, F) Western blot analysis quantification of CBS and CTH at 1h, 3h, 6h, 12h, 24h and 48h after ICH. The black dots represent individual data in each group. **p < 0.01 and *p < 0.05 vs. sham group, NS, no significant difference vs. Sham group, n = 6.

Lentiviral transduction increased and decreased the expression of ATF6 protein level in brain tissues respectively

To ascertain the role of ATF6 in ICH-induced brain damage, we manipulated ATF6 expression via lentiviral transfection. Figure 3A, 3E depict that the shRNA-ATF6 group had significantly lower ATF6 protein levels compared to the shRNA control group. In contrast, the Lv-ATF6 overexpression group showed a marked increase in ATF6 protein levels. Similarly, the expression level of CTH was significantly decreased in the shRNA-ATF6 group, the results indicated that the change of ATF6 expression level affected the expression of CTH (Figure 3B, 3F). The results of immunofluorescence experiment showed that compared with shRNA control group, the expression of ATF6 in shRNA-ATF6 group was significantly decreased, while the expression of ATF6 in Lv-ATF6 group was significantly increased (Figure 3C, 3G). As various studies have noted, ATF6 is a crucial regulator of the inflammatory response. Through immunofluorescence (IF) experiments, we monitored phenotypic changes in Microglia. Our findings revealed that an increase in ATF6 expression correlated with a rise in the proportion of M2 type Microglia, whereas a decrease in ATF6 led to a reduction in M2 type Microglia. These findings suggest that ATF6 could foster the transformation of Microglia to the M2 type, thereby inhibiting the inflammatory reaction (Figure 3D, 3H).

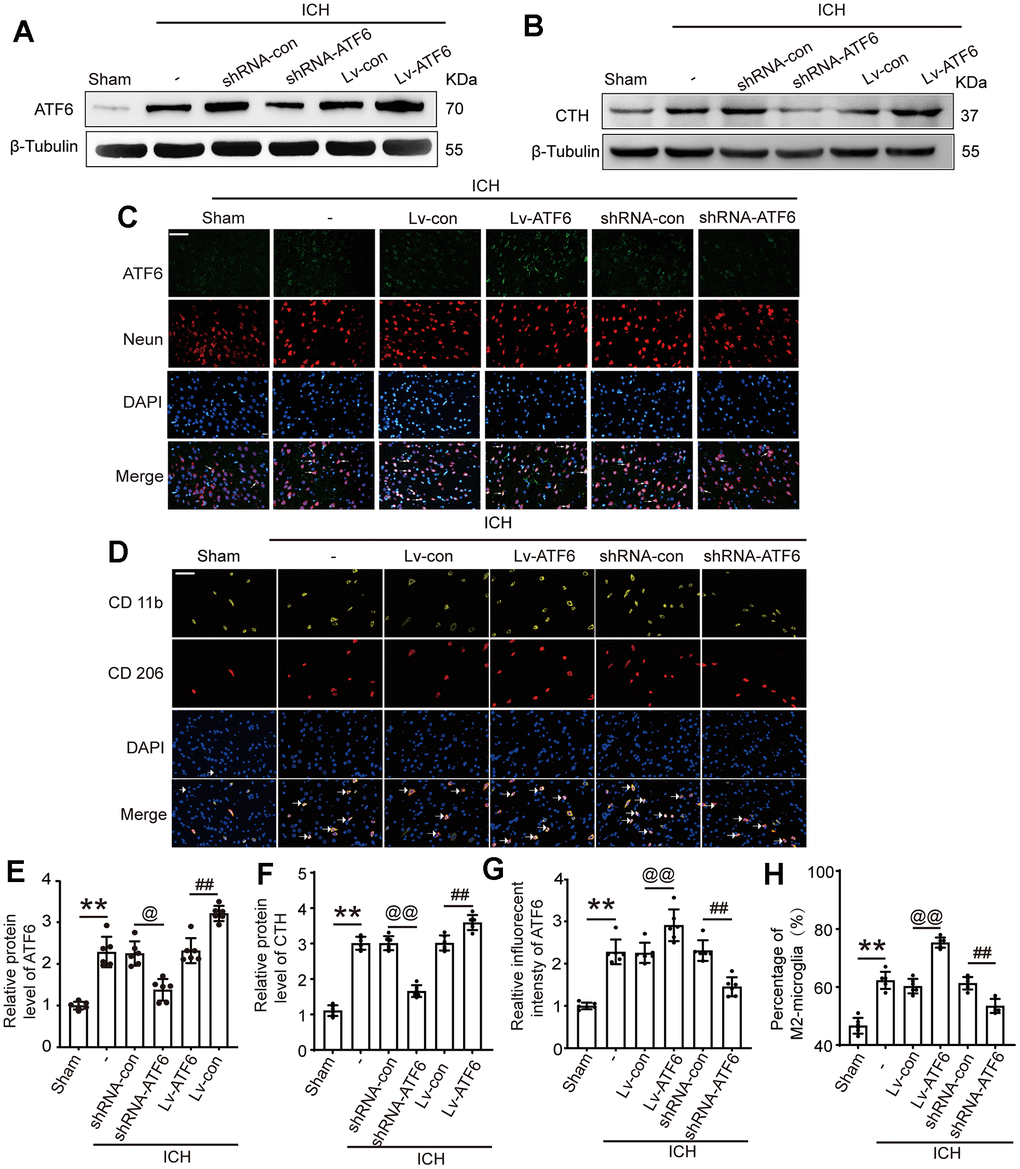

Figure 3. Intervention efficiency of overexpression and interfering RNA lentivirus on ATF6. (A) Representative Western blot image of ATF6 in intervention groups. (B) Representative Western blot image of CTH in intervention groups. (C) Double immunofluorescence analysis of ATF6 (green) and Neuron (red) in brain, arrow indicated ATF6 positive cells. Nuclei were labeled with DAPI (blue). (D) Double immunofluorescence analysis of microglia (yellow) and M2-microglia (red) in brain, arrow indicated M2-microglia positive cells. (E) Western blot analysis quantification of ATF6 in intervention groups. (F) Western blot analysis and quantification of CTH in intervention groups. (G) The relative fluorescent intensity of ATF6 in neuron cells. (H) The percentage of M2-positive microglia was analyzed. Scale bar = 50 μm. The black dots represent individual data in each group. **p < 0.01 and *p < 0.05, ^@@p < 0.01 and ^@p < 0.05, ^##p < 0.01 and ^#p < 0.05, n = 6.

Elevated ATF6 protein levels inhibit central system inflammatory response and BBB impairment

As IF in Figure 3D showed that when the expression level of ATF increased, the percentage of M2-microglia increased. In alignment with these observations, an ELISA experiment to assess the expression of several inflammatory factors showed that an increase in ATF6 protein expression significantly decreased the levels of pro-inflammatory factors (TNF-α and IL-1β) in central system fluid and serum (Figure 4A, 4B, 4D, 4E), while elevating the expression level of ATF6 promoted the expression of the anti-inflammatory factor IL-10 (Figure 4C, 4F). The brain water content indicated that when the ATF6 protein level increased, the degree of cerebral edema decreased, indicating that ATF6 can alleviate cerebral edema caused by ICH (Figure 4G).

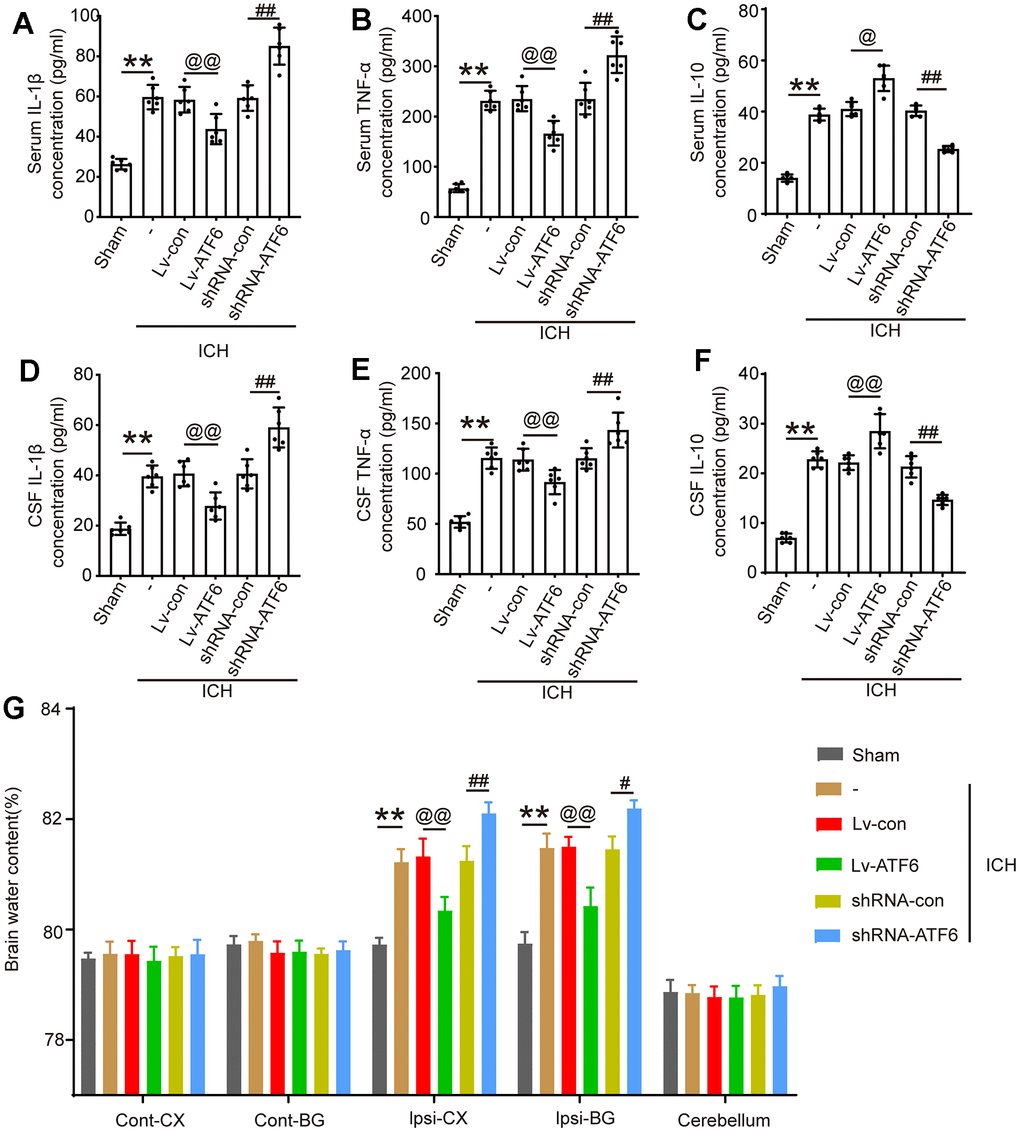

Figure 4. ATF alleviates the inflammatory response and brain edema after ICH. (A) IL-1β in serum. (B) TNF-α in serum. (C) IL-10 in serum. (D) IL-1β in CSF. (E) TNF-α in CSF. (F) IL-10 in CSF. (G) Brain water content. The black dots represent individual data in each group. **p < 0.01 and *p < 0.05, ^@@p < 0.01 and ^@p < 0.05, ^##p < 0.01 and ^#p < 0.05, n = 6.

ATF6 upregulation mitigates ICH-induced brain damage by inhibiting neuronal cell death, brain edema, preserves blood-brain barrier integrity and oxidative stress response

We employed TUNEL assays to assess the influence of ATF6 on neuronal apoptosis and Fluoro-Jade C (FJC) staining to investigate neurodegeneration under different interventions. The ratios of neurodegeneration and cell death markedly increased in ICH-induced brain tissues compared to those in the Sham group. TUNEL staining data revealed that apoptotic neuron numbers increased significantly after shRNA-ATF6 treatment but decreased with ATF6 over-expression (Figure 5A, 5B). Similarly, FJC staining indicated that compared with the shRNA-con group, when the expression level of ATF6 decreased, the death cells increased sharply (Figure 5B, 5D). Oxidative stress response was assessed through markers such as ROS, XO, MDA, LDH, and GSH. Our results demonstrated that the oxidative stress response in the shRNA-ATF6 group was significantly increased compared to the Lv-ATF6 group (Figure 5E–5G, 5I, 5J). Therefore, ATF6 upregulation led to a reduction in oxidative stress and cellular necrosis in ICH subjects. Similarly, by increasing the expression level of ATF6 protein, we could observe that the degree of damage to the blood-brain barrier was reduced in this group of rats, indicating that ATF6 effectively protected the brain tissue (Figure 5H).

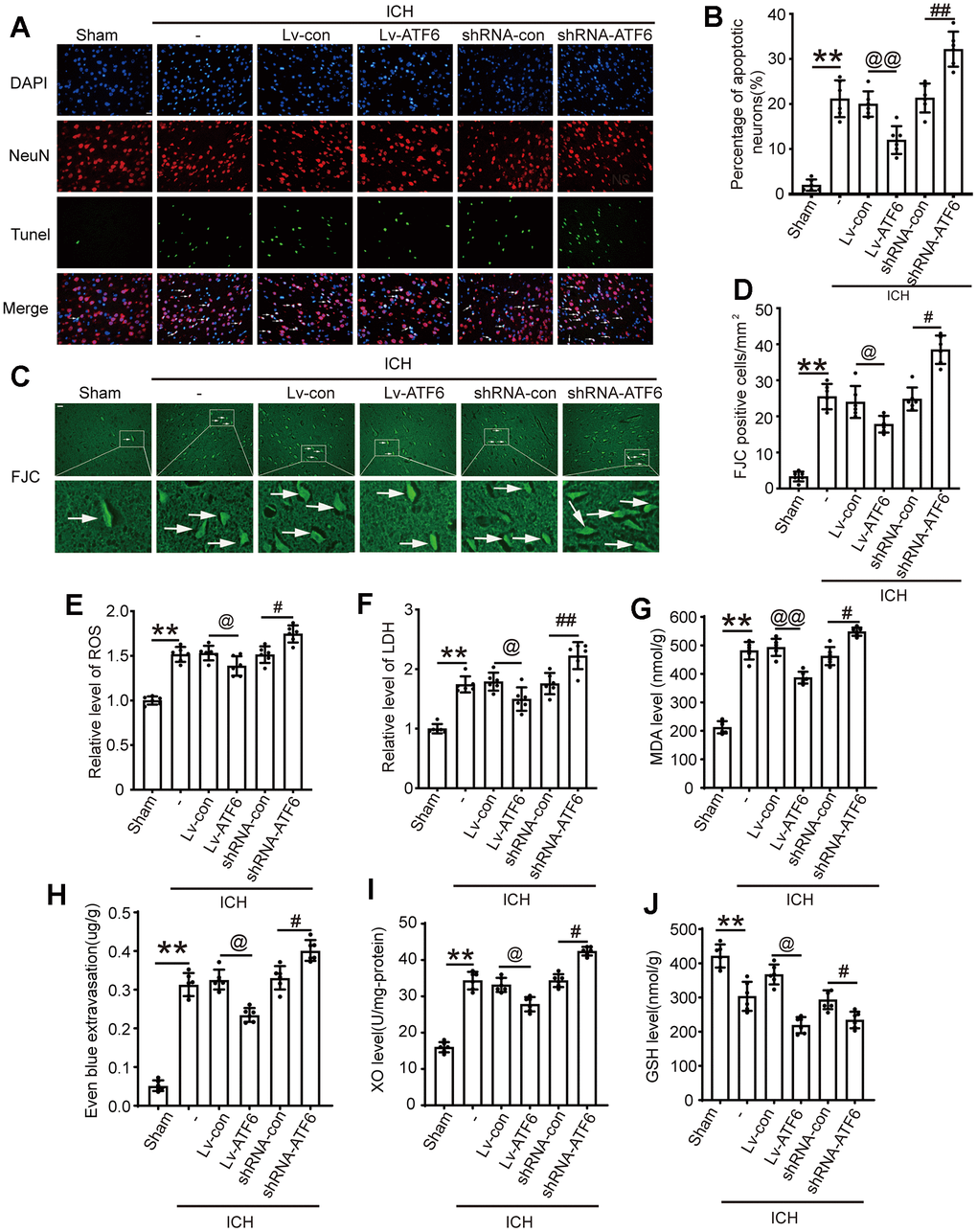

Figure 5. Up-regulation of ATF6 reduced apoptosis and neuron loss induced by ICH. (A, B) Apoptotic cells were labeled in brain sections using TUNEL staining, and the percentage of apoptotic cells was analyzed statistically. Arrow indicated TUNEL positive cells. Nuclei were labeled with DAPI (blue). (C, D) FJC staining. Arrow indicated FJC positive cells. (E) ROS. (F) LDH. (G) MAD. (H) Even blue extravasation. (I) XO Level. (J) GSH level. Scale bar = 50 um. The black dots represent individual data in each group. **p < 0.01 and *p < 0.05, ^@@p < 0.01 and ^@p < 0.05, ^##p < 0.01 and ^#p < 0.05, n = 6.

Impact of shRNA-ATF6 and Lv-ATF6 treatments on cognitive behavior in ICH-induced rats

To further ascertain the role of ATF6 in ICH-induced brain damage, we evaluated cognitive function and locomotor impairments using ethology test. Morris water maze experiment can study the learning and memory function of ICH animals. The results showed that, in the Lv-ATF6 group, the time to find the platform was significantly shorter than in the Lv-con group, and the swimming distance was significantly shorter than that of the Lv-con group. Reversely, in the shRNA-ATF6 group the time to find the platform was significantly longer than in the shRNA-con group, and the swimming distance was significantly increase. In terms of time and distance, there was no significant difference between the ICH, ICH + shRNA-con and ICH + Lv-con groups (Figure 6A, 6C, 6D). The groups also differed in memory, as the Lv-ATF6 group spent significantly more time in the second quadrant than the Lv-con group, and crossed the platform position more frequently than the Lv-con group, while the shRNA-con group spent more time in the second quadrant than the shRNA-ATF6 group, and crossed the platform position slightly more frequently than the shRNA-ATF6 group (Figure 6B, 6E, 6F). Neurobehavior score indicated that compared with the Lv-ATF6 group, the Lv-con group had a lower score, while the shRNA-con group had a significantly higher score than the sshRNA-ATF6 group (Figure 6G). Through foot fault, rotarod and adhesive removal experiments, we concluded that the balance, movement and sensory abilities of rats in Lv-ATF6 group were significantly better than those in Lv-con group (Figure 6H–6J).

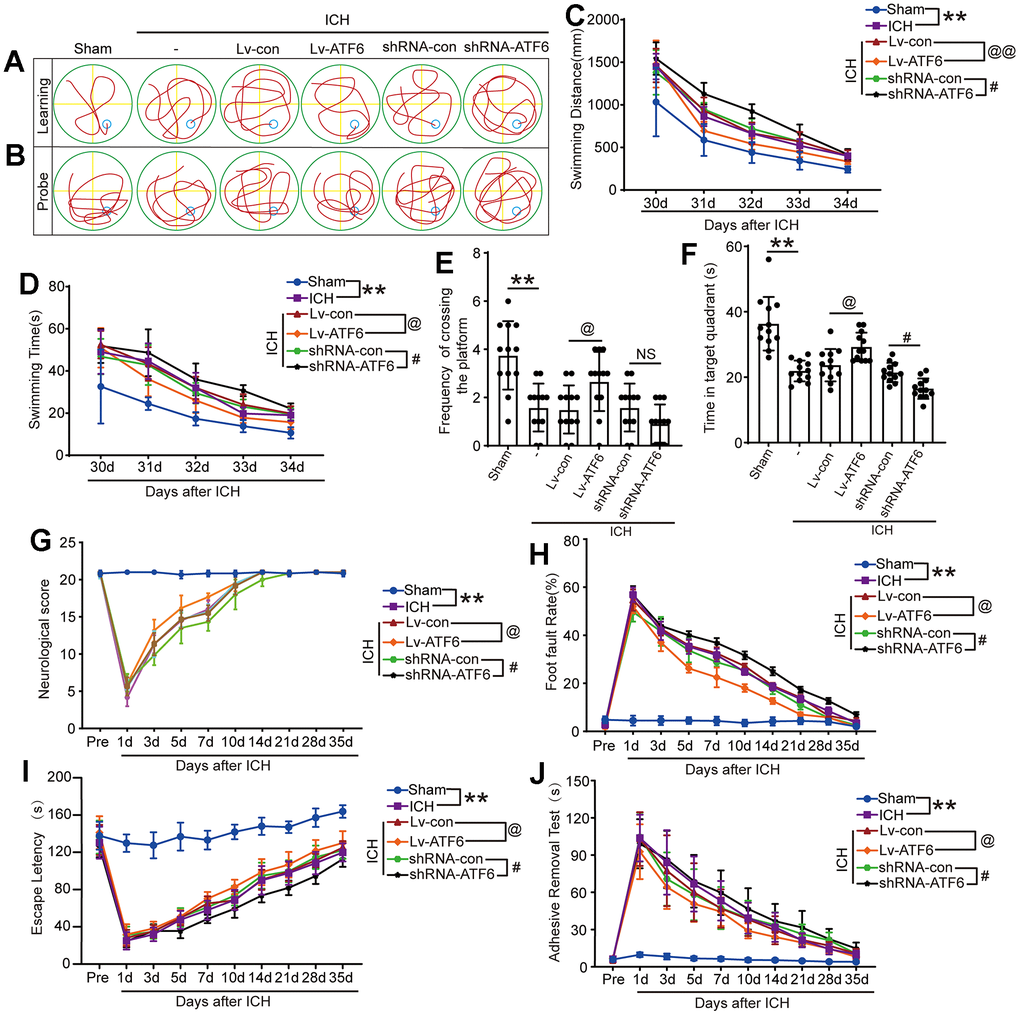

Figure 6. Downregulation of ATF6 can aggravate ethology deficits after ICH. (A) Representative track of Morris water maze experiment during 30-34 days after ICH. (B) Representative track of Morris water maze experiment on 35 days after ICH. (C) Swimming distance. (D) Swimming time. (E, F) Time in target quadrant and frequency cross the platform of Morris water maze experiment on 35 days after ICH. (G) Neurobehavioral score. Higher scores suggest less neurobehavioral deficits. (H) Foot fault test. (I) The motor coordination ability of rats after ICH was evaluated by rotarod test, long latency time indicates good motor coordination ability. (J) Adhesive-removal test. The black dots represent individual data in each group. **p < 0.01 and *p < 0.05, ^@@p < 0.01 and ^@p < 0.05, ^##p < 0.01 and ^#p < 0.05, n = 12.
